Stability Bracket
mod. RV 901 ..

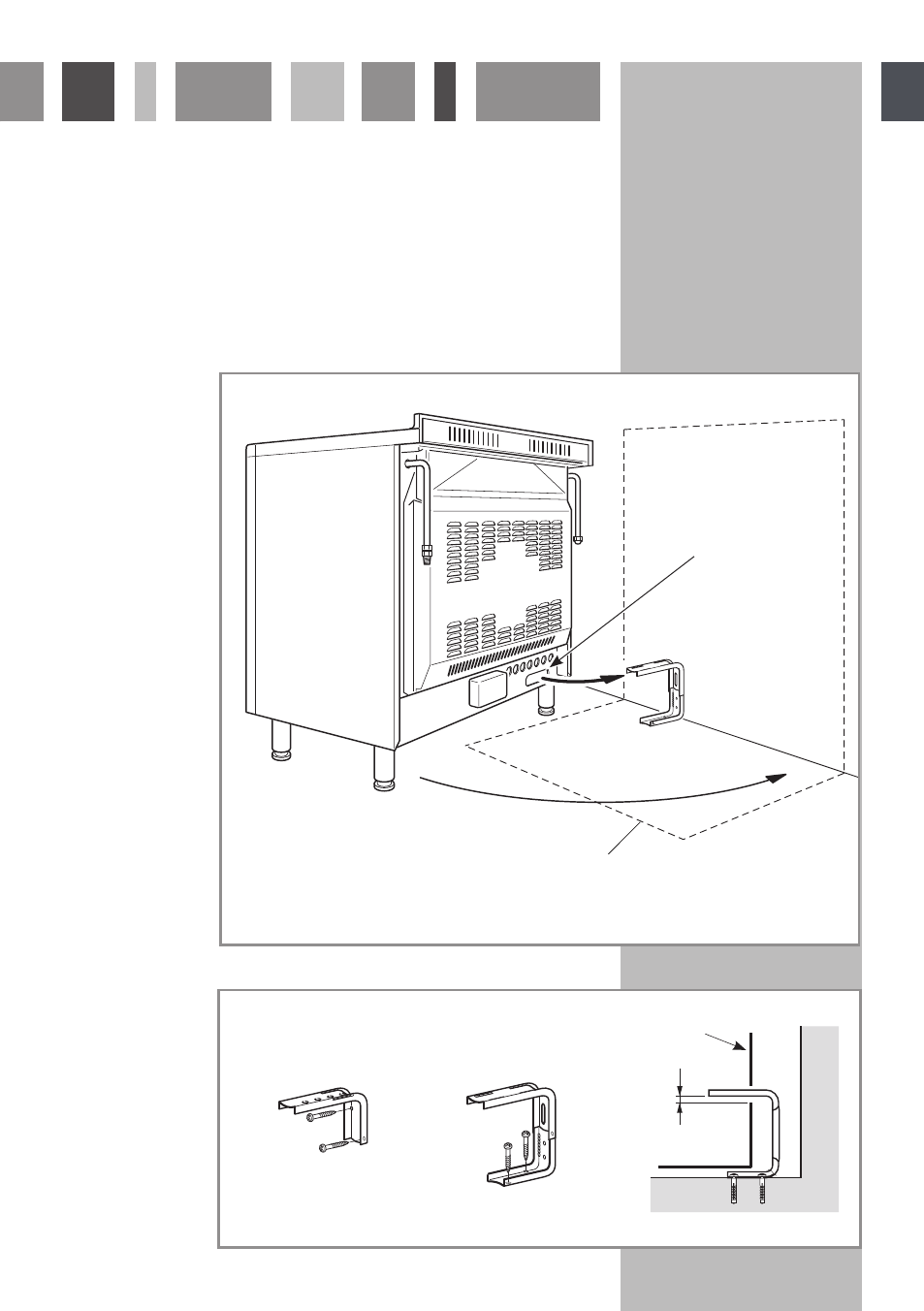

We recommend a stability bracket is fitted to the cooker.
The type shown in fig. 38 can be purchased from most plumbers merchants and do it yourself (D.I.Y.)
shops.
Brackets
Existing slot in
rear of cooker
Dotted line showing the
position of cooker when fixed
Fig. 37
Fig. 38
Wall fixing Floor fixing
3
mm
Outline of cooker backplate
at the engagement slot
mod. RV 901 ..
