15: INSERT: Use this jack to connect an exter-
nal effects device to the amplifier. Use a stereo
1/4” male Y-cord: ring = send, tip = return, sleeve
= ground. See the illustration to the right for
more information.
16: EXT. SPEAKER: Use this jack to connect an
extension speaker cabinet to the amplifier. This
jack is wired in series with the internal speaker.
17: POWER ON LED: This LED illuminates
when the amplifier is turned on.
18: POWER SWITCH: Use this switch to turn
the amplifier on (top of the switch depressed) an
off (bottom of the switch depressed).
19. POWER CORD (rear panel, not shown):
The grounded power cord should only be
plugged into a grounded power outlet that meets
all applicable electrical codes and is compatible
with the voltage, power and frequency require-
ments stated on the rear panel. Do not attempt
to defeat the safety ground connection!
20: FUSE (rear panel, not shown): The fuse
protects the amplifier against damages caused
by power overload conditions. If the fuse fails,
replace it only with the same size and type fuse.
If the fuse fails repeatedly check the AC source;
if it’s okay, contact your Crate dealer for service
information.
21: CHANNEL SELECT / GAIN FOOTSWITCH
JACK (rear panel, not shown): Use this jack to
connect the stereo 1/4” plug of the supplied
three-button footswitch to the amplifier for
remote control of the Channel Select and Gain
Select settings.
22: REVERB FOOTSWITCH JACK (rear
panel, not shown): Use this jack to connect the
mono 1/4” plug of the supplied three-button
footswitch to the amplifier for remote control of
the reverb on and off.

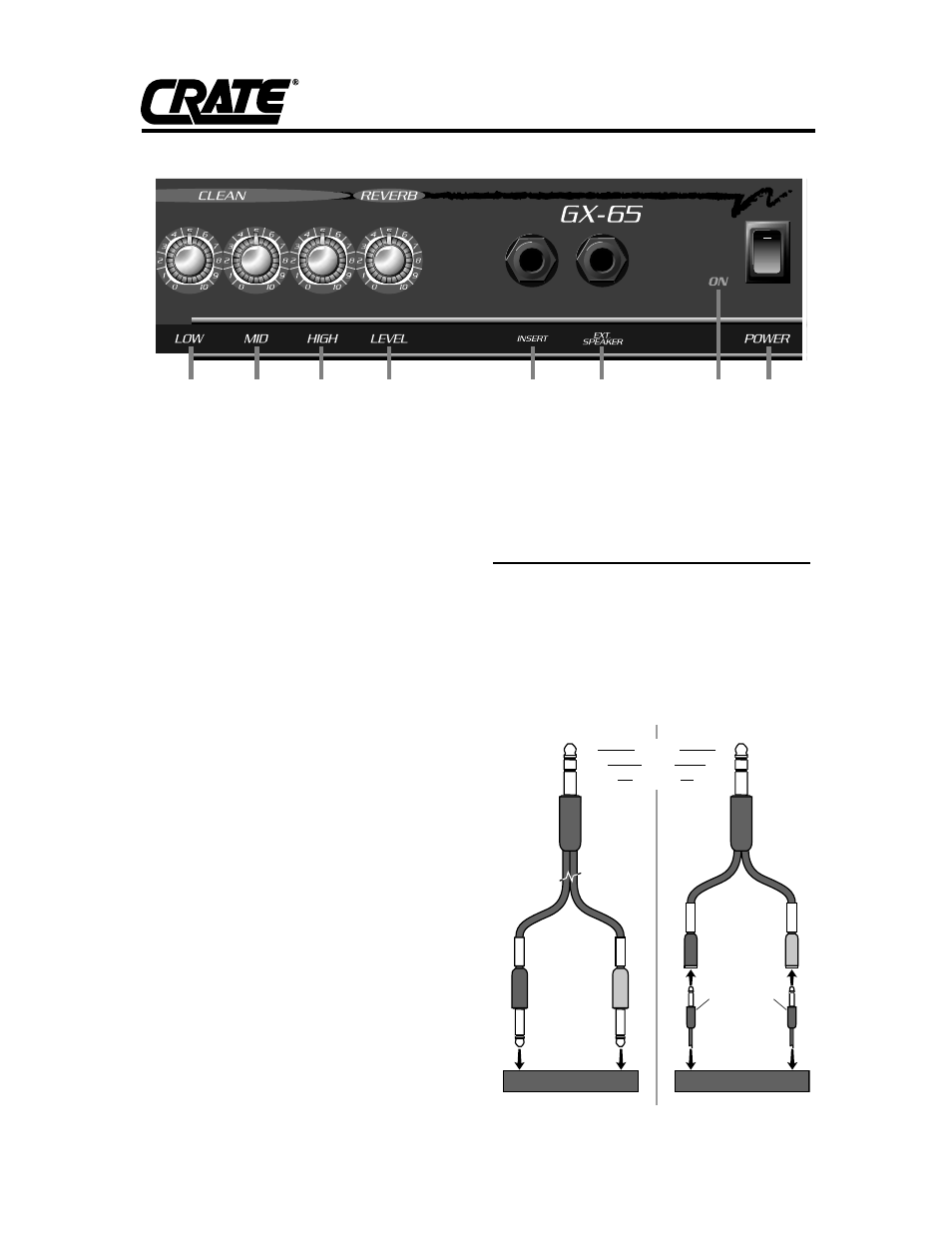

Connecting to the Insert jack:
The Insert jack (#15) lets you patch external
effects into the amplifier just prior to its power
amp stage. Use Crate’s STP201, STP202 or
STP203 stereo-to-mono Y-cord or an adapter
such as Crate’s YPP117 and 2 1/4” mono signal
cables to connect to the effect as shown below.
GX-65 Amplifier
TIP
RING
SLEEVE RETURN
SEND
GROUND
Stereo-to-mono Y-cord:
to Insert
jack
to Insert
jack
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO SHIELDED
CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
External Effect
TIP
RING
SLEEVE
Y-adapter and 2 cables:
External Effect
RING
RING TIP
TIP
to
effect
"OUT"
jack
to
effect
"IN"
jack
11 12 13 14 15 16 17 18
