Capacity with Mast Vertical
Serial Number
Attachment Data
Truck Weight with Max. Battery Units of measure, kg/mm (lb/in)
Capacity
Min. Inside Straddle
SX
3000
S E R I E S
600 (24)
(2500)
(3000)
1135
1360
(2200)
(2700)
998
1225
XXXXXXXXX
Sideshifter
1353 (2983)
965 (38) XXX
461-C
(168) 4267
(154) 3912
(168) 4267
(154) 3912
600
600
660
(26) 660
(26)
(24)
(24)
Truck Type
Capacity Plate
13 Capacity Plate
SAMPLE
CAPACITY PLATE
The information shown
on this sample plate
does not apply to your
truck.

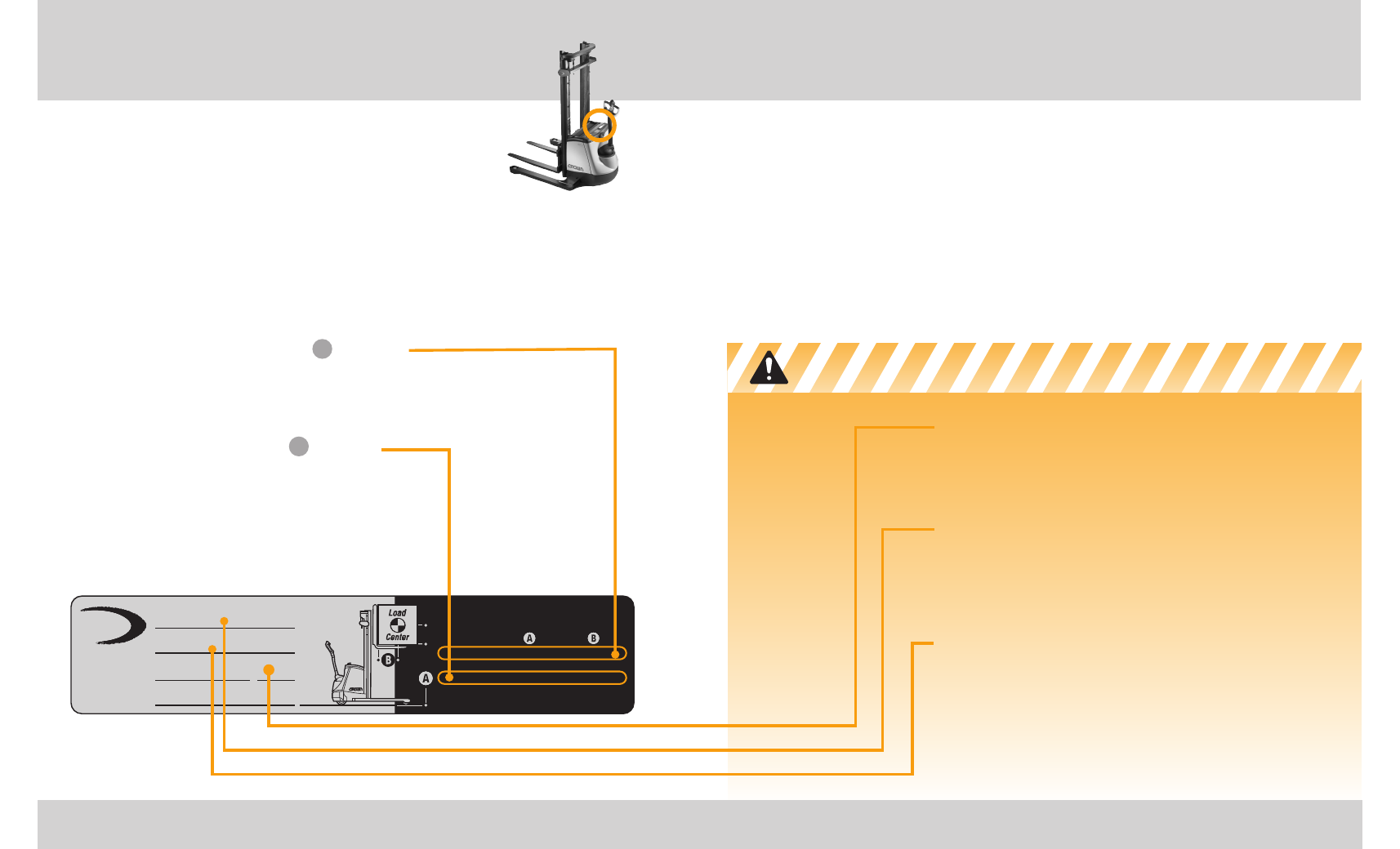

CAPACITY PLATE INFORMATION
The capacity plate is on the mast cross brace. It contains:
• Truck serial number
• Capacity information (load, load center and lift height)
• Truck weight with battery (does not include load)
• Attachment information (if any)
READING YOUR CAPACITY PLATE
Capacity may be reduced as lift height increases.
For example: On the sample plate, 1360kg (3000 lb)
can be lifted to 3912mm (154 in). But above 3912 (154),
to 4267 (168), capacity is reduced from 1360 (3000) to
1135 (2500).
Caution: You may not increase capacity if load center is
less than shown on your capacity plate.
A
Capacity is reduced as load center increases.
For example: On the sample plate, 1135kg (2500 lb)
can be lifted if the load center is 600 mm (24in).
But if the load center is increased to 660 (26), capacity is
reduced from 1135 (2500) to 998 (2200).
B
SAMPLE
Capacity Plate 14
OTHER LIFT HEIGHTS AND LOAD CENTERS
Contact Crown for capacities at lift heights or load centers
not given on your capacity plate.
Know the Hazards
TRUCK TYPE
Some truck types are not permitted in areas where there are
fire hazards. Watch for marked areas. For example: You
must not drive a type E or ES truck into an area restricted
to EE or EX trucks.
TRUCK WEIGHT
Dockboards, elevators and some floors have limited capacity.
Check your capacity plate for the weight of your truck.
Remember to add the weight of the load you have on the
forks. Make certain you use the correct units of measure.
ATTACHMENT DATA
If an attachment on your truck does not match the information
given on your capacity plate, don't operate your truck. Your
capacity plate may be wrong. Report the problem to your
supervisor.
Note: ASME B56.1 requires that all data be shown first in
Metric units and then USA units.
