Carrier HERMETIC CENTRIFUGAL LIQUID CHILLERS 19XR User Manual

Page 27

background image

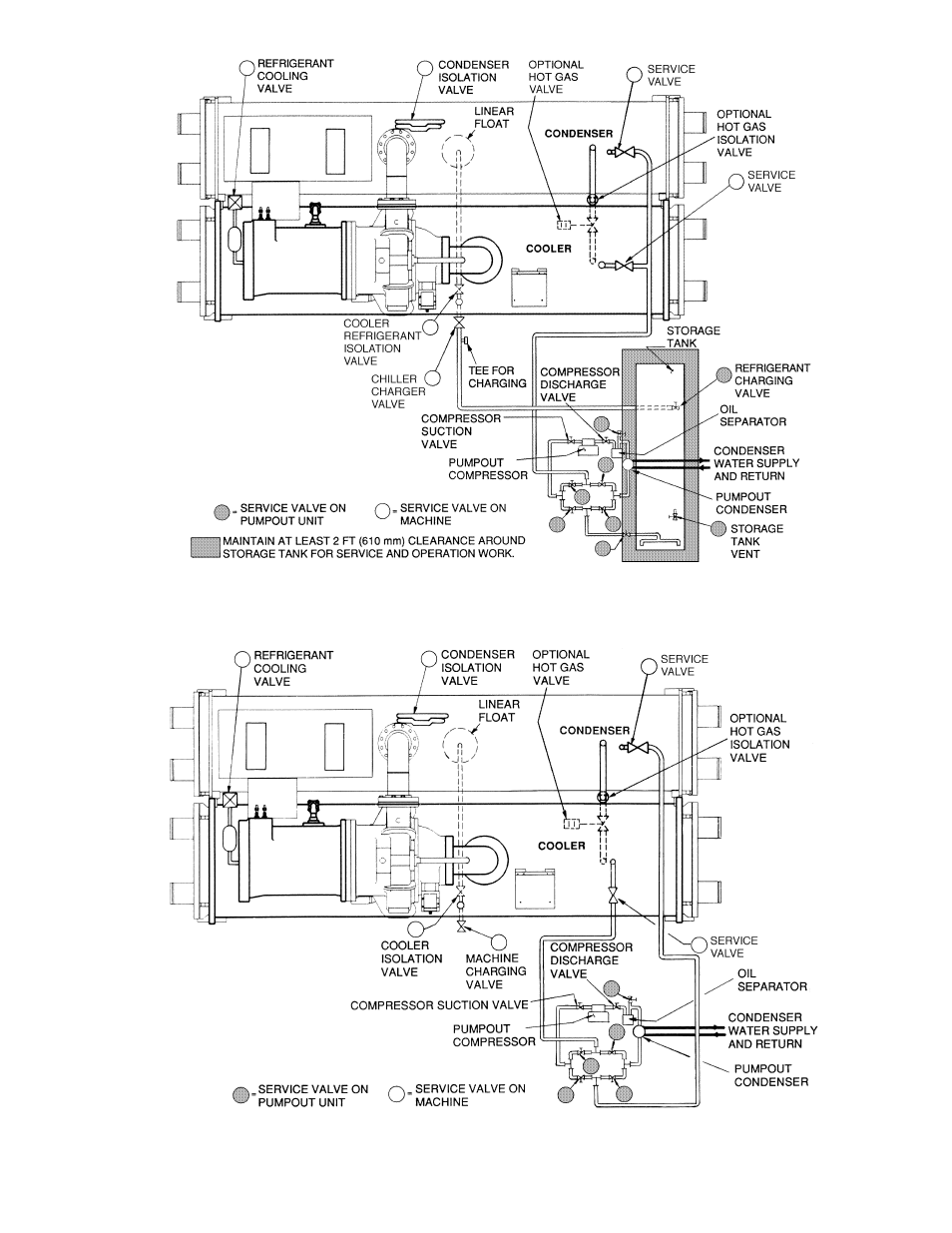

Fig. 20 — Optional Pumpout System Piping Schematic with Storage Tank

Fig. 21 — Optional Pumpout System Piping Schematic without Storage Tank

27
