Page 30 For technical questions, please call 1-800-444-3353. SKU 68885
Parts List and Diagrams

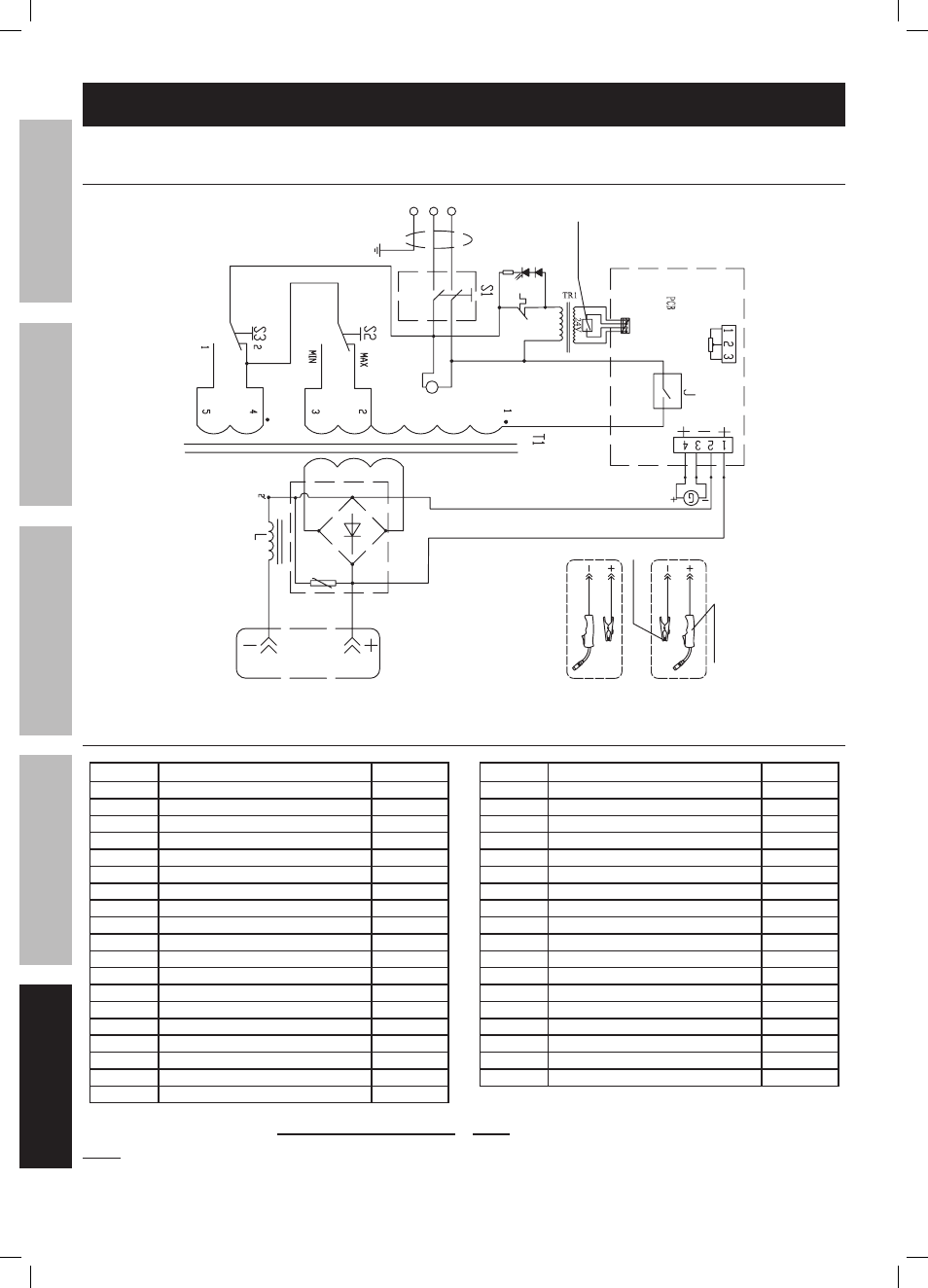

Wiring Diagram
Gas/Gasless
Gasless
W
elding T
orch
Gas
Ground Clamp
W
elding
Torch Switch
Parts List
Record Serial Number Here:
Note: If product has no serial number,
record month and year of purchase instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
Part Description Qty
1 Ground Clamp (and Cable) 1
2 Power Cord 1
3 Grommet 2
4 Current Switch 2
5 Wire Speed Knob 1
6 Front Panel 1
7 PCB Holder 1
8 PCB 1
9 Divider 1
10 Control Transformer 1
11 Thermal Protector 1
12 Transformer 1
13 Foot 4
14 Right Panel 1
15 Gas Connector 1
16 Back Panel 1
17 Rectifier Bracket 1
18 Fan 1
19 Rectifier 1
Part Description Qty
20 Handle 1
21 Spool Holder 1
22 Hinge 2
23 Wire Feed Mechanism 1
24 Left Panel 1
25 Red Terminal 1
26 Latch 1
27 Black Terminal 1
28 Rubber Tube 1
29 Indicator 1
30 Torch Cable Grommet 1
31 Power Switch 1
32 Torch (and Cable) 1
33 Face Shield Handle 1
34 Face Shield Shell 1
35 Filter Lens 1
36 Wire Brush / Chipping Hammer 1
37 Wrench 1
