Desa Tech CGD3924P - Manual (Page 30)

30
102991
OPTIONAL
POSITIONING
OF
THERMOSTAT
SENSING BULB
For Masonry and
Factory-built
Metal Fireplace
Continued
Adhesive-backed
Mounting Clip

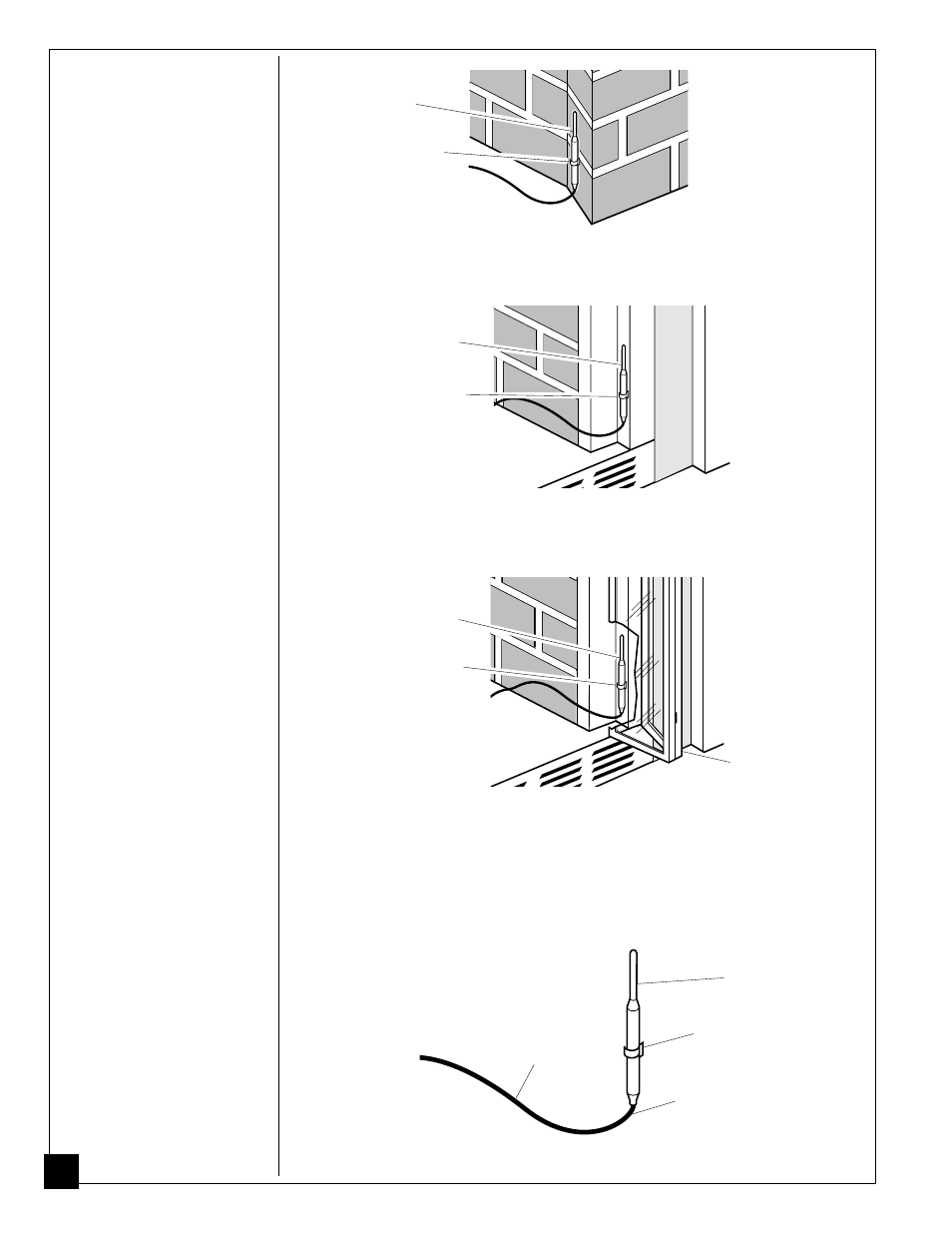

Figure 30 - Locating Thermostat Sensing Bulb on Masonry Fireplace
Thermostat
Sensing Bulb
If you have a factory-built metal fireplace, see Figure 31 for location.
;
;
;
;
Q
Q
Q
Q
Adhesive-backed
Mounting Clip
Thermostat
Sensing Bulb
Figure 31 - Locating Thermostat Sensing Bulb on Factory-built Metal Fireplace
If your fireplace has glass doors, position sensing bulb directly behind door gap on right
bottom side (see Figure 32).
;
;
;
;
Q
Q
Q
Q
; Q ;
;
;
;
Q
Q
Q
Q
Adhesive-backed
Mounting Clip
Glass
Doors
Figure 32 - Installing Thermostat Sensing Bulb behind Glass Doors
Thermostat
Sensing Bulb
Capillary
Thermostat
Sensing Bulb
Do Not Crimp Capillary
Adhesive-backed
Mounting Clip
Figure 33 - Positioning the Thermostat Sensing Bulb in the Vertical
Position with the Capillary at the Bottom
5. The mounting clip must be a minimum of 3" from bottom of fireplace to
prevent crimping of capillary. Once you have decided on a location, clean the
area thoroughly. Remove the paper backing from the adhesive on back of
mounting clip. Press the clip into the new location so that the thermostat
sensing bulb will be positioned vertically with the capillary at the bottom (see
Figure 33). Slide the thermostat sensing bulb into the clip.
IMPORTANT: Do not crimp capillary.
