STK16C88
Document Number: 001-50595 Rev. ** Page 2 of 14
Pin Configurations

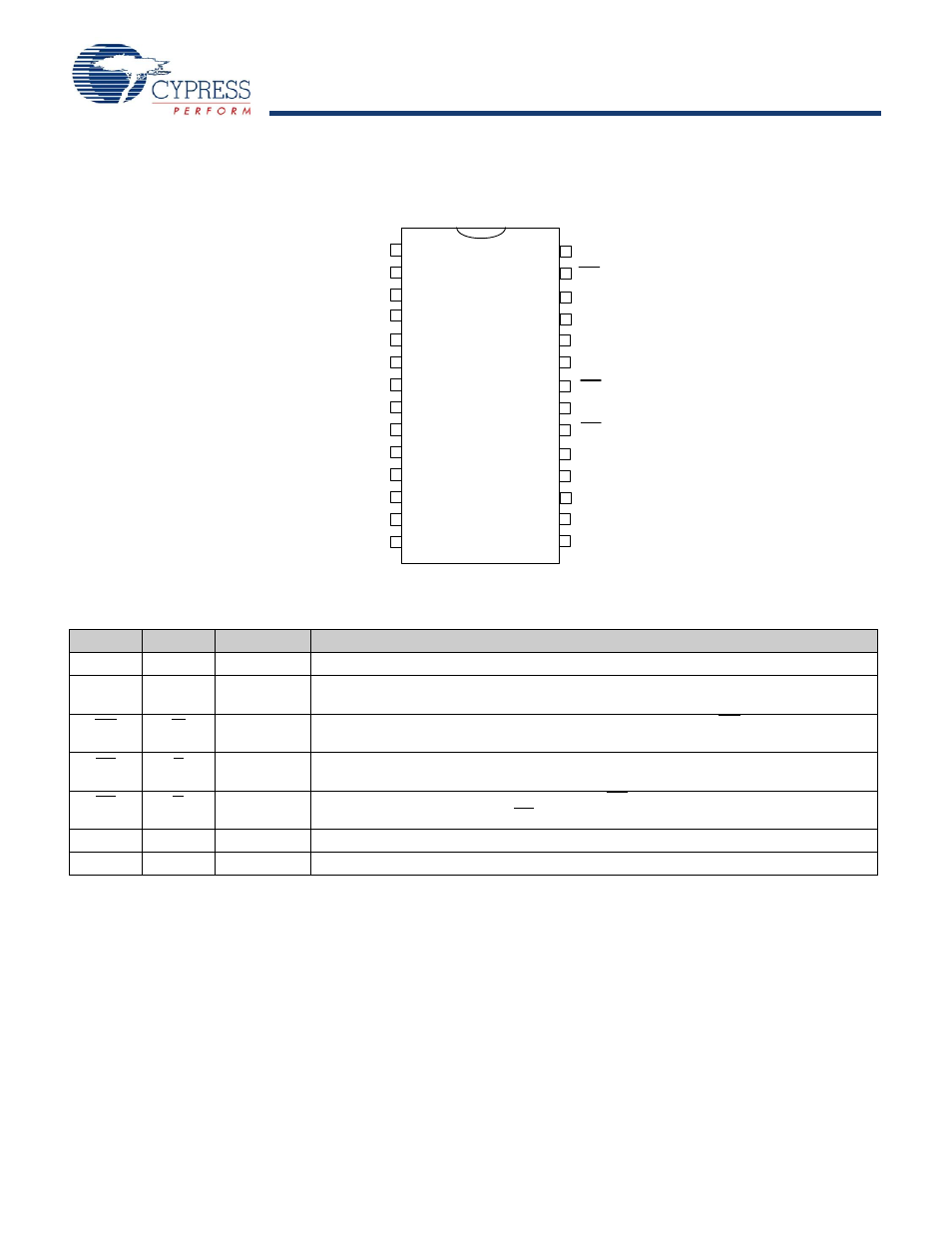

Figure 1. Pin Diagram - 28-Pin PDIP
Table 1. Pin Definitions - 28-Pin PDIP
Pin Name Alt IO Type Description
A
0
–A
14
Input Address Inputs. Used to select one of the 32,768 bytes of the nvSRAM.
DQ
0
-DQ
7
Input or
Output
Bidirectional Data IO lines. Used as input or output lines depending on operation.
WE W
Input Write Enable Input, Active LOW. When the chip is enabled and WE is LOW, data on the
IO pins is written to the specific address location.
CE E
Input Chip Enable Input, Active LOW. When LOW, selects the chip. When HIGH, deselects the
chip.
OE G
Input Output Enable, Active LOW. The active LOW OE input enables the data output buffers
during read cycles. Deasserting OE HIGH causes the IO pins to tri-state.
V
SS
Ground Ground for the Device. The device is connected to ground of the system.
V
CC
Power Supply Power Supply Inputs to the Device.
$
$
$
$
