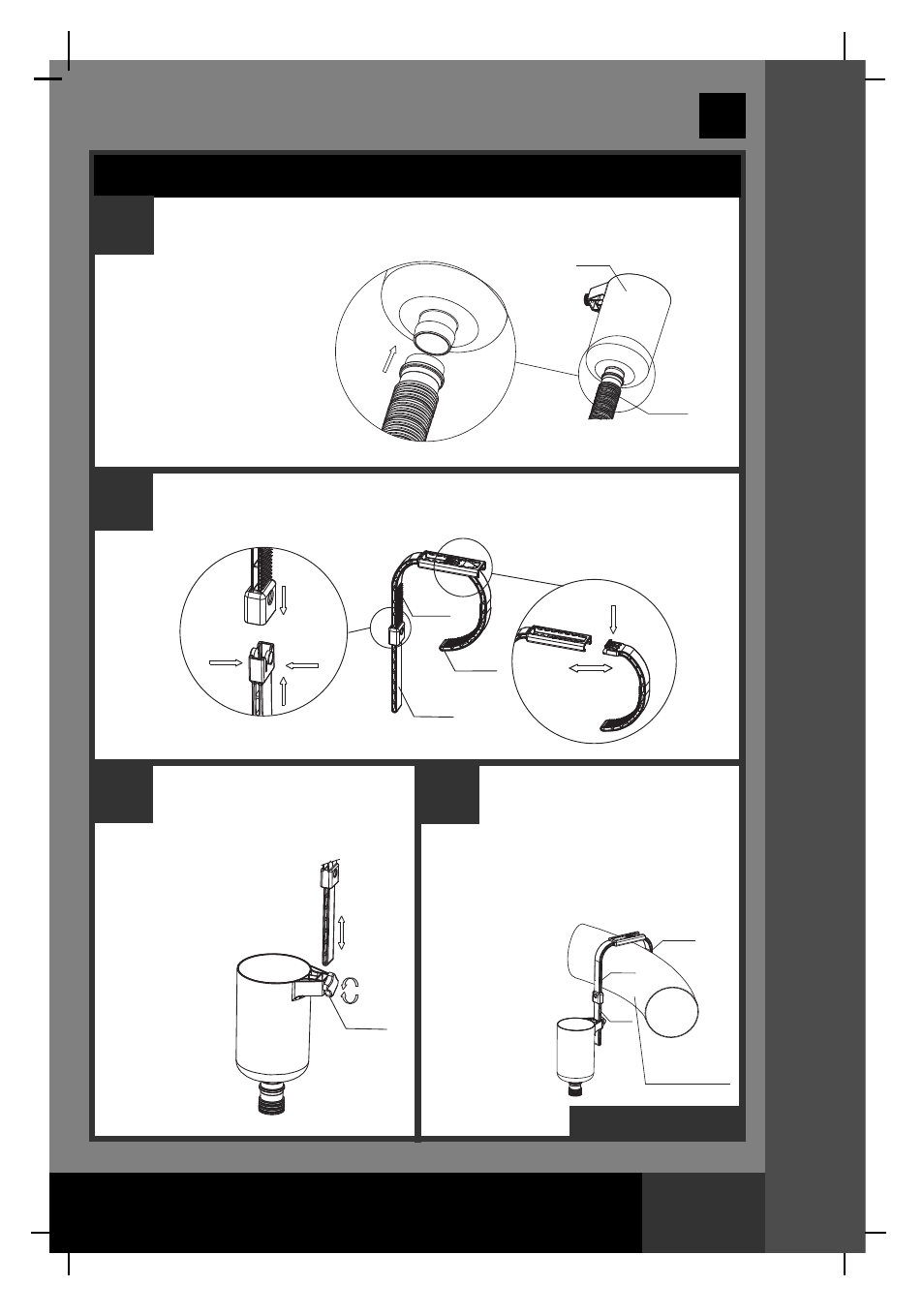

HOOK ASSEMBLY FOR EASY SET ® POOLS WITH INFLATABLE TOP RINGS
English
HH
OO
OO
KK
AA
SS
SS
EE
MM
BB
LLYY
1
NOTE: If you are using METAL FRAME POOL or SEQUOIA SPIRIT
®
POOL SET, go to Step #5.
Connect the Skimmer
Hose (10) to the
Skimmer (4)
bottom connector.
4
10
2
Assemble the hook as shown. Adjust the opening of the Hook (7) by
pressing and sliding the Arm (8) at the same time.
Press Press
Insert
Insert
7
8
6
Press
Slide
3 4
Loosen the Skimmer
Screw (5), attach the
assembled hook and hand
tighten the Screw.
NOTE: Do not over
tighten or use tools
such as pliers.
Slide
5
Place the whole assembled
hook unit over the top of an
EASY-SET® Pool Top Ring near the
water inlet connector (lower hose
connection). Adjust the hook (8) to
be snug around the
inflated ring
(see step #2).
Ensure
the hook is
securely
tightened
over the
pool.
SKIP TO STEP 9
Inflatable
Top Ring
8
7
6
