Intex 635T Krystal Clear 2012 - Manual (Page 9)

107
SAVE THESE INSTRUCTIONS
Page 9
English
(107) MODEL 635T FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/16/2011
SS
EE
TT
UU
PP
II
NN
SS
TT
RR
UU
CC
TT
IIOO
NN
SS

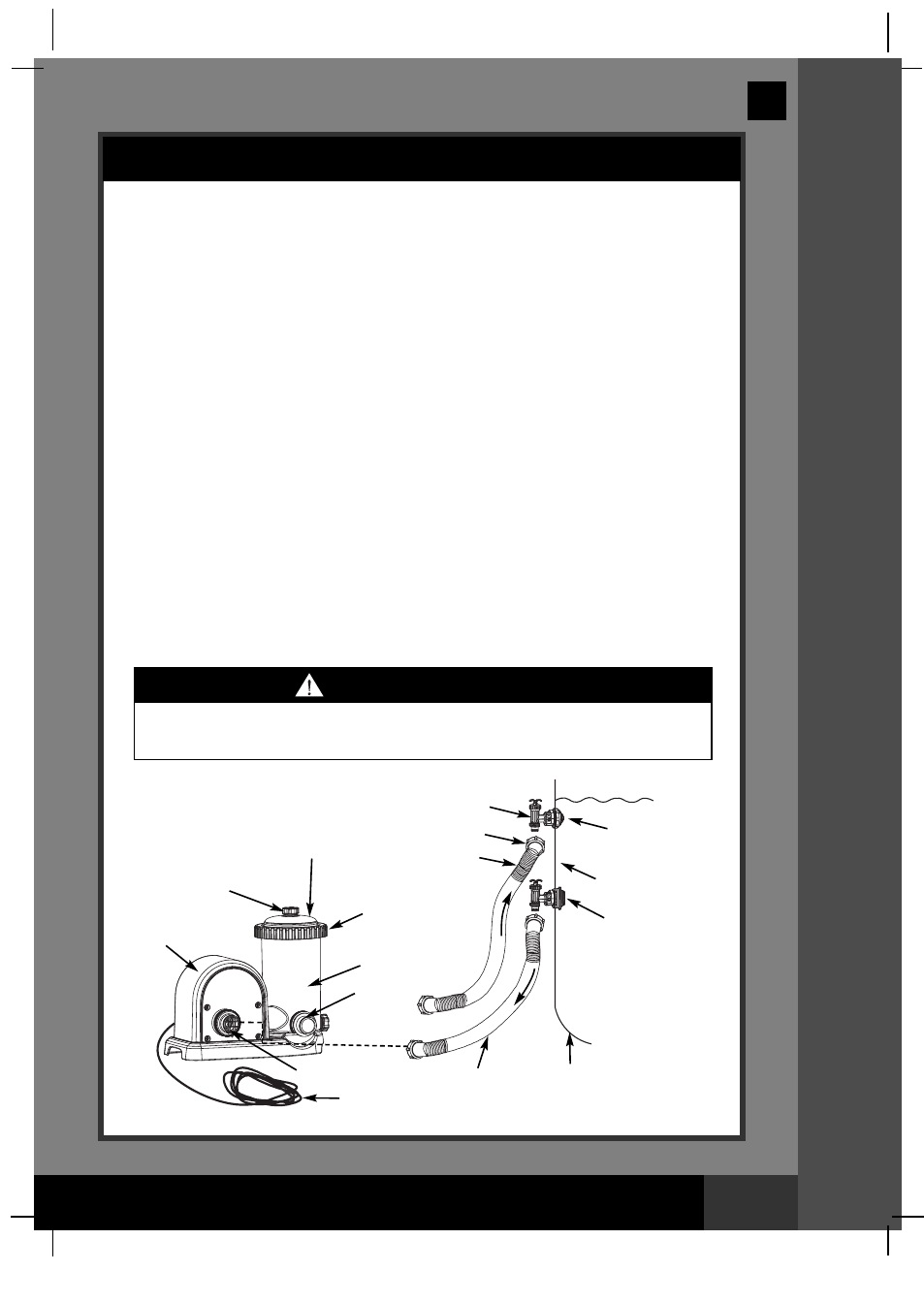

FILTER PUMP HOSE CONNECTION SETUP
1. Remove the Krystal Clear™ filter pump and hoses from the packaging.
2. Place the filter pump in such a manner, that you can easily assemble the
hose (7) connections to the plunger valve.
Note: Some regional regulations may require the filter pump to be
mounted on a stationary platform. There are two mounting holes located
in the pump base for this reason. Consult your local authorities for
filter-pump mounting requirements.
3. Grasp the two pump hoses (7) and connect the hose nuts to the filter pump.
4. In a counter-clockwise motion unscrew the threaded filter housing collar (1)
from the filter housing. Place it in a safe place.
5. The filter pump is an airtight system. Turn the top air release valve (2) once or
twice in a counter-clockwise motion.
DO NOT remove the air release valve from the top cover, as water will
expel with force if the motor is turned on. This may cause injury.
6. Grasp and remove the filter housing cover (4). Check to see if a cartridge is
inside the housing. If yes, replace the cover, finger tighten the housing
collar (1) back onto the filter housing.
7. Gently finger tighten the sediment release valve located at the bottom of the
housing to be sure that water does not leak out.
8. When the pool is filled connect the hose from the bottom of the filter housing to
the highest strainer assembly. You will find the hose connection at the bottom of
the plunger valve assembly. Use the hose nut to attach the hose.
9. Connect the second hose which is fixed to the middle of the motor housing to
the remaining liner connection.
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
THREADED FILTER
HOUSING COLLAR
HOSE NUT
OUTLET HOSE
WATER LEVEL
ADJUSTABLE POOL
INLET NOZZLE
INSIDE LINER
WALL
THREADED
STRAINER
CONNECTOR
OUTSIDE LINER
WALL
(ILLUSTRATION NOT TO SCALE)
INLET HOSE
WAT
ER
FL
OW
W
AT
E
R
F
L
O
W
PLUNGER VALVE
ASSEMBLY
FILTER CARTRIDGE
INSIDE
MOTOR
HOUSING
AIR RELEASE
VALVE
FILTER HOUSING
COVER
HOSE O-RING
POWER CORD
HOSE
O-RING
