SETUP INSTRUCTIONS (continued)
WARNING
Position this product away from the pool, so as to prevent children from climbing on it
and accessing the pool.
CLEANING OR REPLACING FILTER CARTRIDGES
1. Make sure filter pump is not operating. Disconnect line cord.
2. To prevent water from escaping the pool, unscrew the pool inlet nozzle (10) and strainer
grid
(11) from the strainer connectors and insert the hat-like plugs into the strainer
connectors.
3. In a counter-clockwise motion, remove threaded cover (3) and cover seal (4). Be careful not
to lose the cover seal (4).
4. Remove filter cartridge (5) to clean it. The filter may be cleaned from the spray from a water
hose.
5. Use judgement as to whether cartridge needs to be replaced.
6. Return cartridge to filtering position.
7. Return the seal (4) and threaded cover (3) to their original positions. Tighten the threaded
cover
(3) by hand only, twisting it in a clock-wise direction.
8. After service, open the air release valve, remove the plugs, allow any air to escape through
the valve before tightening the valve again and replace the pool inlet nozzle (10) and strainer
grid (11). The pump is now primed with water again and may be turned on.

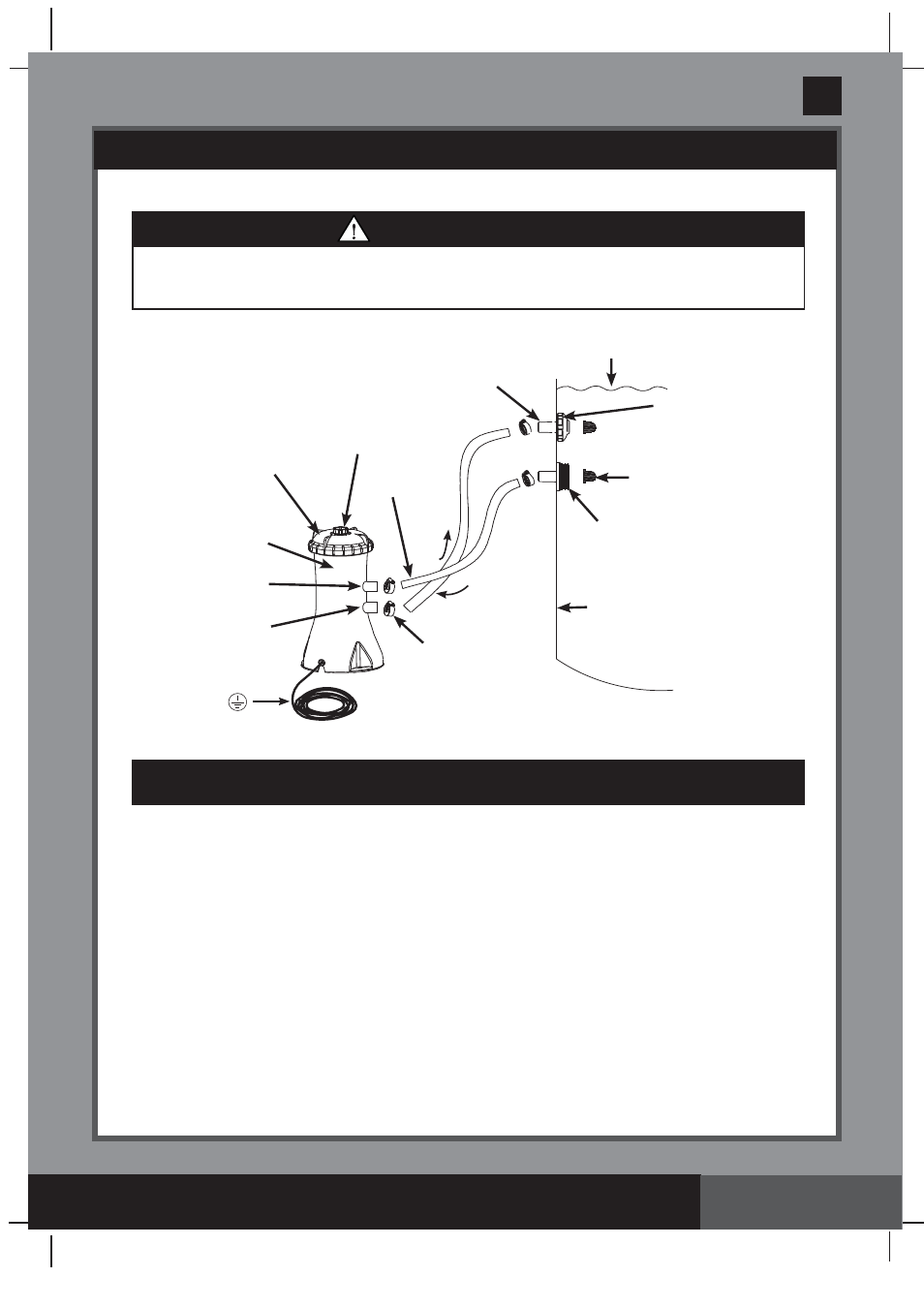

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
POOL INLET
NOZZLE
(REMOVE)
HOSE CLAMP
INSIDE OF POOL
STRAINER GRID
(REMOVE)
PLUG
UPPER PROTRUDING
HOSE CONNECTION
W
AT
E
R
D
IR
E
C
TI
ON
W
A
T
E
R
D
IR
E
C
T
IO
N
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
THREADED
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
