Introduction
This chapter contains the following sections:
•
Overview
•
Functional Block Diagram
•
Features
•
Documentation Terms
Overview
The 9252 is an AES/EBU distribution amplifier designed for broadcast use. It provides eight
copies of the incoming signal.
The 9252 supports audio sampling frequencies from 30kHz to 192 kHz. Cable equalization
and reclocking techniques enable the 9252 to recover the incoming digital audio signal
reliably.
The 9252 is housed in the openGear 8310-C series frames.

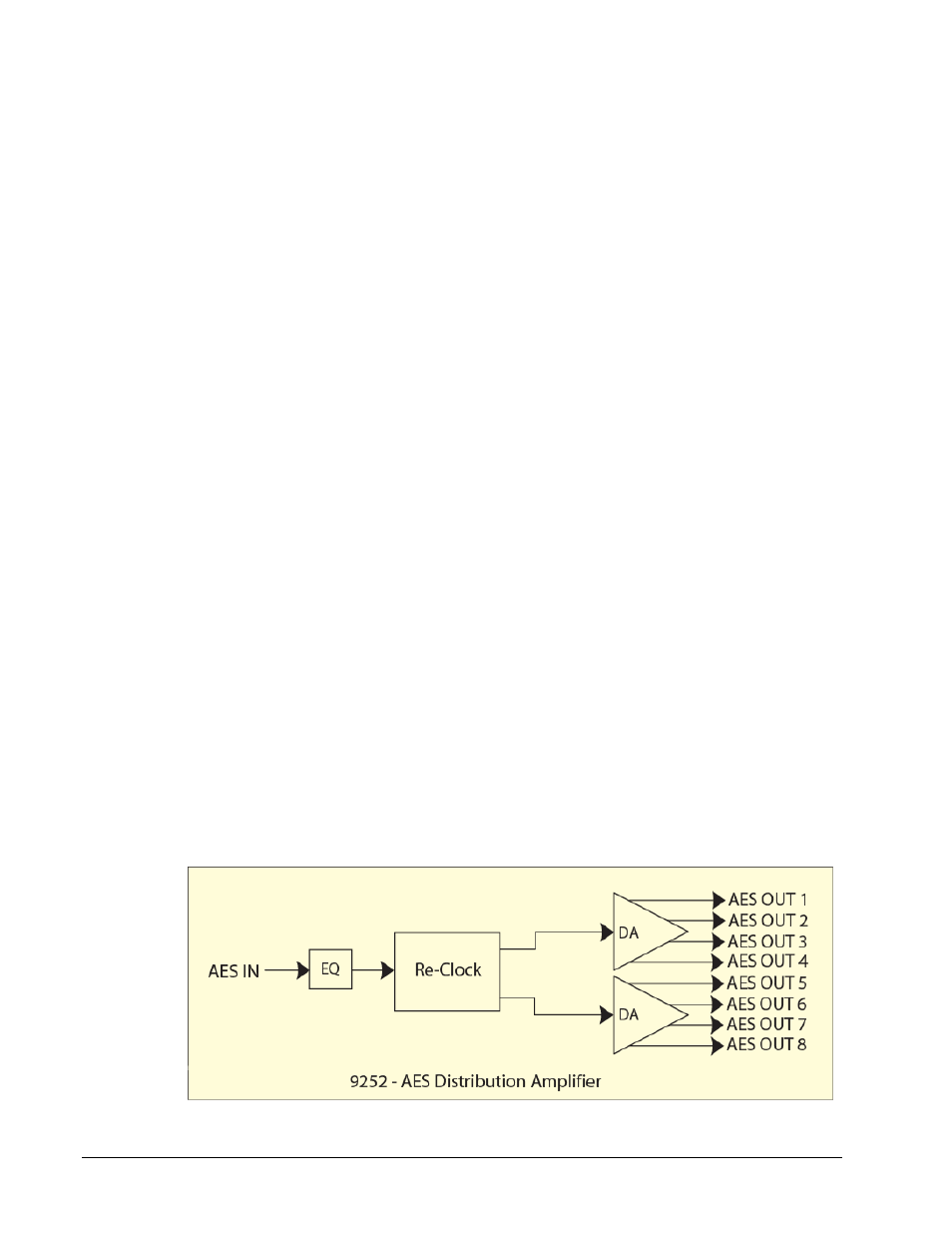

Functional Block Diagram
