2 TVR 11c Quick Start Guide

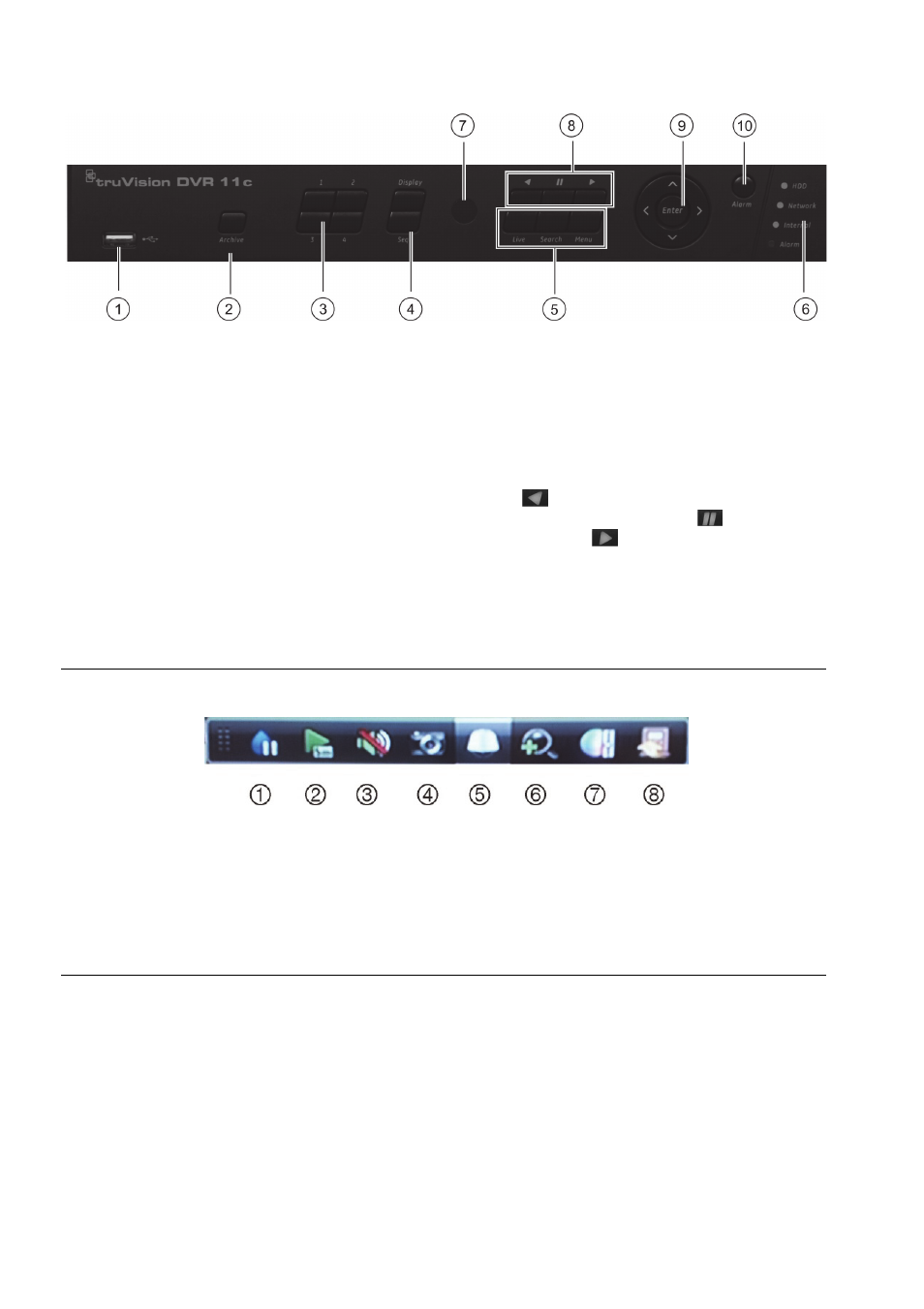

Figure 2: Front panel controls
1 USB port. The DVR supports both a USB DVD
and a USB HD on the front and rear USB ports.
2. Archive button: Press to enter archive mode.
3. Channel buttons. Switch between different
cameras in live view, PTZ control or playback
modes.
4. Display and Seq buttons: In live view mode,
press Display to toggle through the single and
multiviews. Press Seq to start/stop sequencing
in live view mode.
In menu mode, press Enter to select a menu
window and then Seq to toggle through the tabs
along the top of the menu window.
5. Live, Menu and Search buttons: Press Live to
switch to live view mode. Press Menu to enter
the main menu. Press Search to enter the
advanced search menu.
6. Status LEDs.
7. IR receiver.
8. Playback buttons: Press to control playback.
Press to jump back to the oldest available
video and start playback. Press to pause
playback. Press for all-day playback.
9. Enter and arrow buttons: Use to select options
in a menu and to control playback. Press for
Enter.
10. Alarm button: Press to manually acknowledge
an alarm.
Figure 3: Quick access toolbar
1. Freeze: Freeze live image of the selected
camera.
2. Instant playback: Play back the recorded video
from the last five minutes.
3. Audio: Enable/disable audio output.
4. Quick snapshot: Capture a snapshot of a video
image.
5. PTZ control: Enter PTZ control mode.
6. Digital zoom: Enter digital zoom.
7. Image settings: Modify the image lighting levels.
8. Close: Close the toolbar.
