5” Wall Model
Touchscreen
Display Type: Touch-sensitive active matrix color LCD
Screen Dimensions: 5"/12.7 cm diagonal
Screen Resolution: 320x234 pixels
Color: 16 Bit non-palette graphics
Enclosure: Injection-molded plastic enclosure faceplate
and keys in white; Auto-Light Sensor, Built-in 10 “Quick”
pushbuttons
Graphics Display : Rotates 180° via software for optimum
viewing angle in flush mount
Connectors
• 4-position mini-phoenix for Cresnet
• 8-position mini-phoenix for audio and video.
Audio
• Balanced & unbalanced line level mono input, balanced
line level microphone output, and built-in WAV file
capability (8KHz)
• Half duplex intercom capable
• Dual amplified speakers (2W per spkr) w/volume &
tone control
Video
• Balanced(CAT5) /unbalanced composite video
input supporting NTSC/PAL formats and built-in time
base correction. Video can be displayed either full
screen or in a window.
• 2x digital zoom w/pan feature built-in
Memory
2MB internal flash memory, 8MB of DRAM
CPU
63MIPs Coldfire processor running Isys generation
firmware
Power Requirements
13W, 24VDC, 0.54A
Additional Options
BB-2000 : Back box for wall mounting
PMK-2000L : Pre-Construction Mount
MMK-2000L : Mud mount kit for use w/ BB-2000
or PMK-2000L
TMK-2000L : Trim mount kit for use w/ BB-2000
or PMK 2000L
WMKM-2000L : Wall mount kit - with Mud Ring
WMKT-2000L : Wall mount kit - with Trim Ring
TPS-FP : Designer Series faceplates
TPS-WPK : Water Resistant Cover Kit
Dimensions
4.77” (12.10 cm) H x 6.73” (17.10 cm) W x 3.43”(8.71 cm) D
Weight
1.41. lb (0.64 kg)

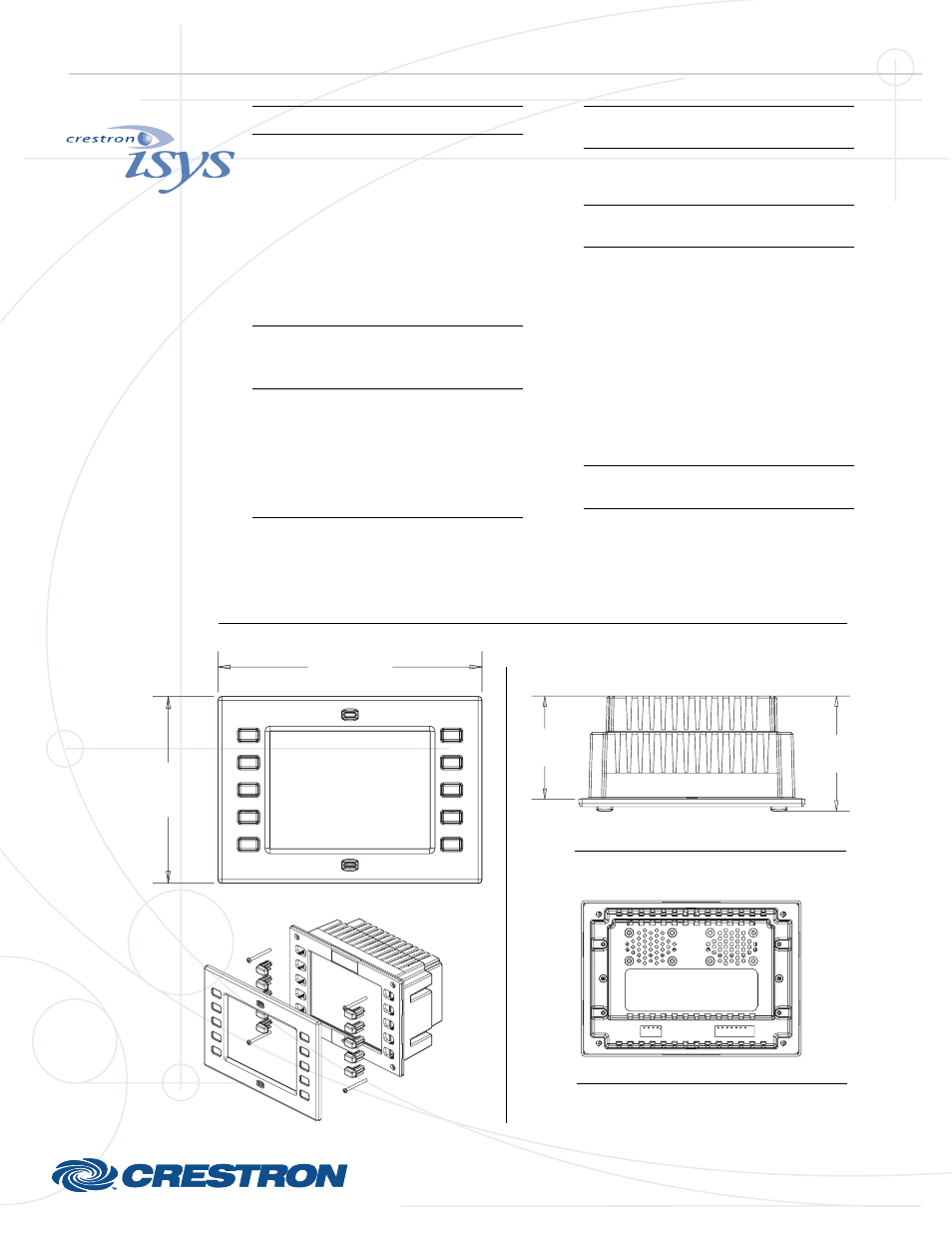

4.765 in
(12.103 cm)
6.731 in
(17.097 cm)
3.066 in
(7.788 cm)
3.43 in
(8.714 cm)
Rear View
Front View
Bottom View
Crestron Isys ™ TPS-2000L Compact Video Touchpanel
