454
Han
d
lin
g the U
n
expected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
( 0 and
check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

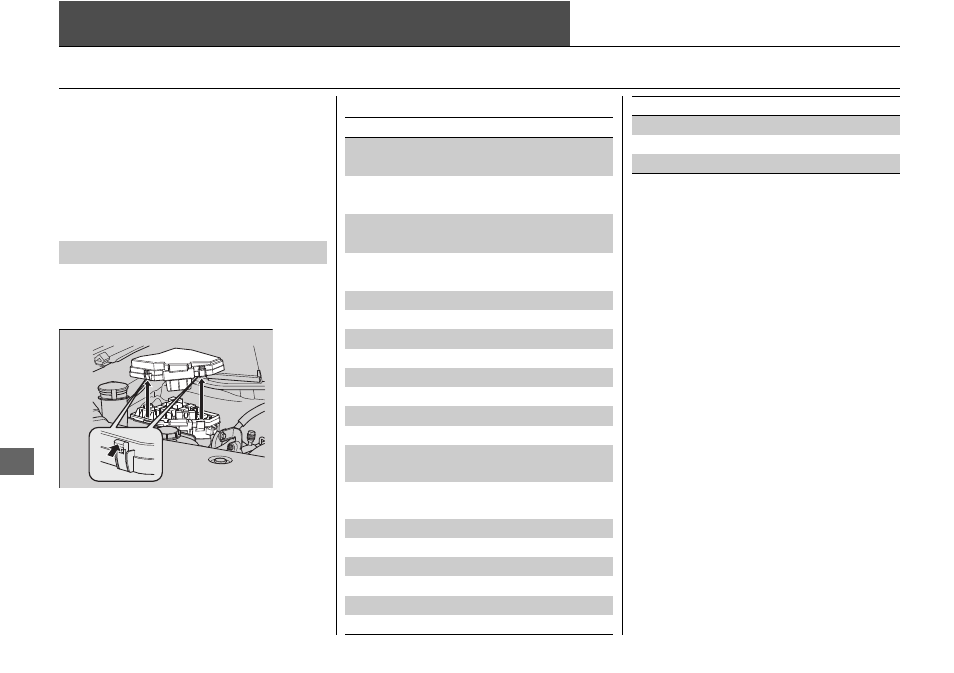

Located on the passenger’s side, near the
windshield washer reservoir. Push the tabs
to open the box.
■ Engine Compartment Fuse Box
■
Circuit protected and fuse rating
Circuit Protected Amps
1
Main Fuse 120 A
− −
2
OP Main 80 A
IG Main 50 A
3
Blower 40 A
AC Inverter 30 A
4
Head Light Main 50 A
Power Window Main 40 A
5 − −
6 Condenser Fan 30 A
7 Cooling Fan 30 A
8 Rear Defogger 30 A
9 − −
10 Fog Lights * (20 A)
11 Sub 15 A
12 ACM 10 A
13
Front Passenger’s Power
Seat Reclining *
(20 A)
14
Front Passenger’s Power
Seat Slide *
(20 A)
15 Oil Level 7.5 A
16 FI ECU (7.5 A)
17 Radio 20 A
18 IG Coil 15 A
19 Main 15 A
20 MG Clutch 7.5 A
21 DBW 15 A
22 Interior Lights 7.5 A
23 Back Up 10 A
Circuit Protected Amps
* Not available on all models
