Haltech HT055047 User Manual
Page 4
ECU Installation
To install your new Platinum Pro Plug-in to your Honda Civic, please follow the
procedures below.
* Please Note the following Installation photos based on a Honda Civic Type R (EP3)
You will require the following tools
•
Socket set with 8mm and 10mm sockets
•
Platinum Mounting Kit (HT039000) or Cable Ties / 3M Velcro tape or similar
1.
Locate your factory ECU. This will be located on the passenger side of the vehicle
behind the glove compartment.

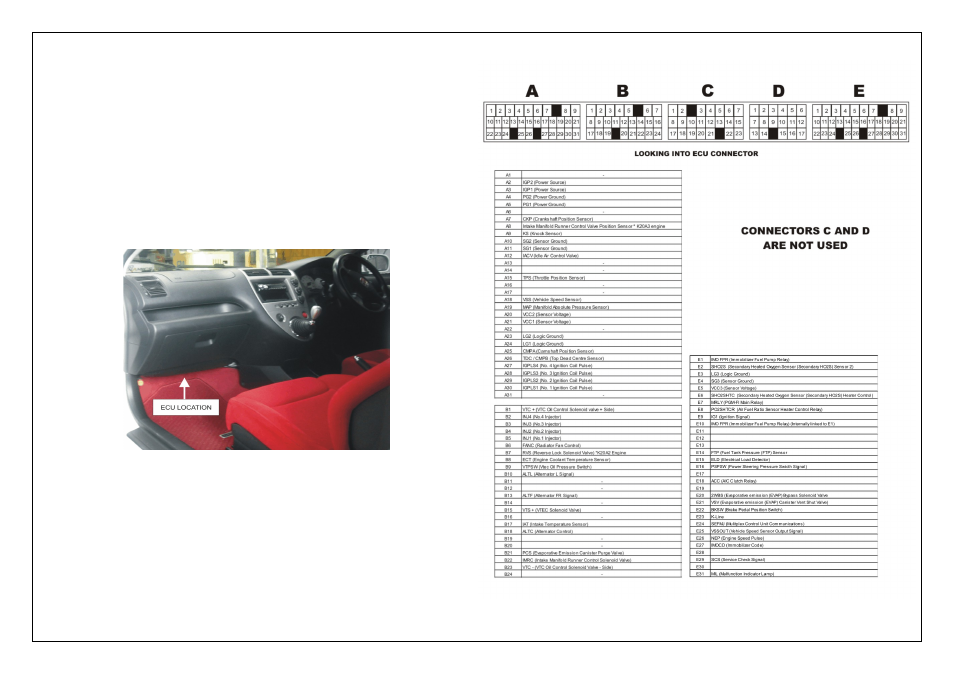

Figure 1 – ECU Location
ECU Pinout
Figure 10 – Platinum Pro Plug-in Honda Civic EP3 ECU Pinout
