Cleaning dirt cup, Height adjustment knob storing, Cleaning & replacing filter – Guardian Technologies GGU300 User Manual

Page 5: Exhaust filter cleaning & replacement

Dirt Cup
Release Button

Dirt Cup

Body

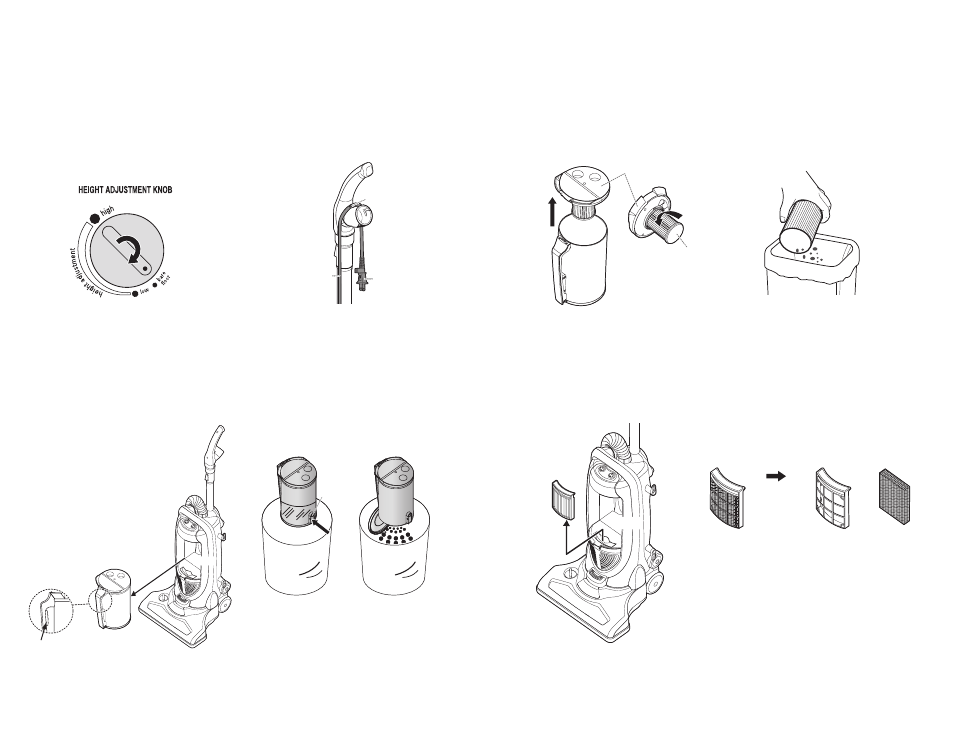

CLEANING DIRT CUP

· You will need to empty dirt cup when dust reaches the “FULL” line.

· Turn off the cleaner and unplug from electrical outlet.

· Grasp the dirt cup handle and depress button, pull out the dirt cup from body. (Fig. 19)

· To empty, remove the dirt cup and hold over trash bin. Push the dirt release button

and dispose of the dirt. (Fig. 20)

Fig. 19

- FULL

Dirt
Release
Button

Fig. 20

Cord
Clip

Plug

Cord

HEIGHT ADJUSTMENT KNOB

STORING

· Rotate the height adjustment knob to the

correct carpet height. (Fig. 17)

· To clean bare floor, set this knob to the

bare floor position and turn off the brush

power switch. (Located on the top of the

cleaner, see page 2)

· After using the cleaner, store in

upright mode.

· Store accessories on the storage clips

located on the cleaner body.

· Wrap the cord around the cord storage

hooks on the side of the body and hang

the plug at the cord clip on the wand.(Fig. 18)

Fig. 18

Fig. 17

CLEANING & REPLACING FILTER

To optimize the vacuum performance you should clean the filter each time you empty the dirt cup.

· Lift up the dirt cup cover, rotate and remove the inner filter. (Fig. 21)

· Tap the inner filter on a trash bin to remove the dust from the pleats. (Fig. 22)

Note: This inner filter is washable and can be rinsed if you notice a reduction in vacuum
performance (suction). To wash, first tap filter to remove excess dirt and dust from the pleats.

Rinse filter clean with warm water then allow to completely dry (a minimum of 24 hours) before

returning to dirt cup. Use filter: FLTB for inner dirt cup.

Dirt Cup Cover

HEPA
Inner Filter

Fig. 21

EXHAUST FILTER CLEANING & REPLACEMENT

· Pull out the exhaust filter. (Fig. 23)

· Replace the exhaust filter when it becomes dirty. (Fig. 24) Use filter: FLTA for exhaust filter.

Caution: This filter is not washable.

Filter Frame

Filter

Fig. 24

Fig. 22

Tap Gently

Exhaust
Filter

Body

Fig. 23

Note: Replacement parts can be purchased by calling 1-866-603-5900.
