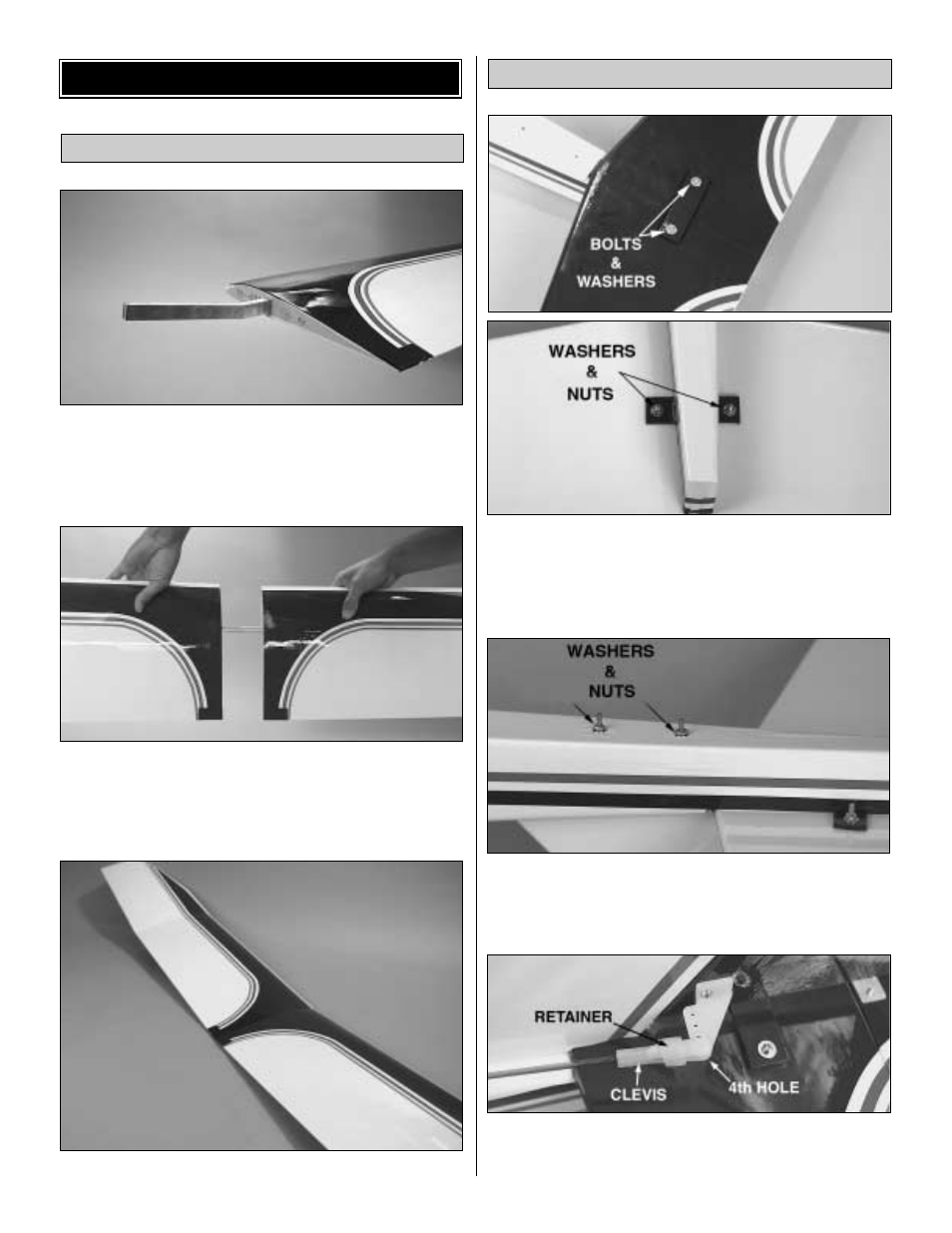

1. Locate the wing joiner and insert it into the right wing
joiner pocket as shown in the above picture.
❏
2. Insert the other side of the wing joiner into the left wing
joiner pocket and slide the wings together.
❏
3. Completed wing
❏
1. Find and open the holes in the stabilizer covering for the
attachment bolts. Attach the stabilizer to the fuselage using
two 2mm x 15mm bolts, two 2mm nuts and four 2mm washers.
Use thread lock on the nuts to prevent loosening. Note: The fin
was removed on these images for clarity.
❏
2. The fin comes pre-installed on the Spectra Select, but
you should check that the hex nuts are tight. Also, you
should use some Great Planes Pro Threadlocker to prevent
the nuts from coming loose.
❏
3. Verify that the rudder clevis is attached to the 4th hole
from the inside of the rudder’s control horn. Also, make sure
that the silicone retainer is properly installed on the clevis.
Tail Assembly
Wing Assembly
ASSEMBLY
5
