Servo Horn
1/16"
2-56 (.074")
Pushrod Wire
FasLink
❏

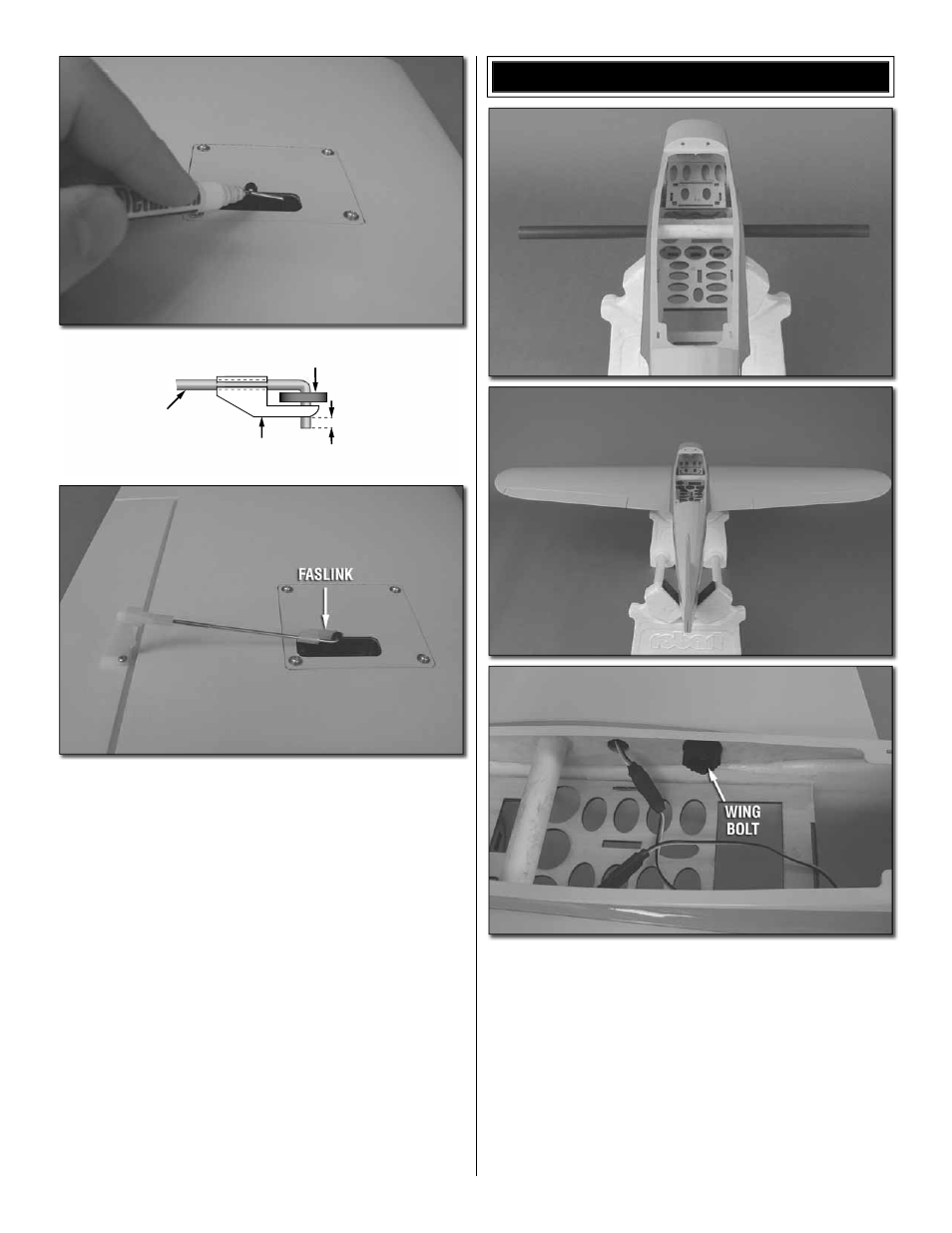

9. Use tape or a small clamp to hold the ailerons in the
neutral position. Make a mark on the pushrods where they
cross the outer holes in the servo arms. Make a 90° bend at
the mark on the pushrod and cut off the excess pushrod 1/4"
[6mm] beyond the bend. Attach the pushrods to the servo
arms using nylon FasLinks. Thread the clevises up or down
on the pushrods as necessary to center the ailerons with the
servo arms centered. When satisfi ed, slide the silicone clevis
retainers to the ends of the clevises to secure them.
ASSEMBLE THE TAIL SECTION
❏
1. Insert the wing tube into the fuselage and center its
position. Slide the wing panels onto the tube and feed the
aileron servo leads through the mating holes in the fuse.
Tighten the wing panels against the fuse using the two nylon
wing bolts.
