7
KIT INSPECTION
KIT CONTENTS
Before starting to build, take an inventory of this kit to make sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly,
contact Product Support. When reporting defective or missing parts, use the part names exactly as they are written in
the Kit Contents list.
Great Planes Product Support
3002 N. Apollo Drive, Suite 1
Champaign, IL 61822
Telephone: (217) 398-8970, ext. 5
Fax: (217) 398-7721
E-mail: [email protected]
1. Fuselage
2. Wheel Pants (L&R)
3. Fuel Tank
4. Cabanes (2)
5. “N” Struts (2)
6. Fin and Rudder
7. Aileron Joiner Rods (2)
8. Plywood Engine Mount Plate
9. Wing Bolt Plate
10. Main Landing Gear
11. Main Wheels (2)
12. Stabilizer and Elevators
13. Wing Joiners (2)
14. Bottom Wing Panels (L&R)
15. Top Wing Panels (L&R)
16. Canopy
17. Pilot
(1) Brass Threaded Coupler
(11) 4-40 Steel Clevis Threaded
(7)
Solder Clevis
(2) 3/16" x 2" [4.8 x 51mm] Bolt-On Axle
(1) Screw-Lock Pushrod Connector
(11) 4-40 Hex Nut
(2)
5/16" [8mm] x 24 Lock Nut
(8) 4-40 Lock Nut
(4) White Nylon Control Horn
(4) Nylon 1/4-20 x 2" [51mm] Bolt
(1) Nylon Clevis
(1) Nylon FasLink
(7) Black Heavy-Duty Control Horn
(1) 24" [610mm] White Plastic Inner Pushrod Tube
(20) Silicone Clevis Retainer
(42) 4 x 1/2" [13mm] SMS
(4) 6-32 x 1/4" [6.4mm] Socket Head Bolt
(2) 4-40 x 1/8" [3.2mm] Set Screw
(8) #2 x 3/8" [9.5mm] Phillips Screw
(4) 8-32 x 3/4" [19mm] SHCS
(8) 4-40 x 3/8" [9.5mm] Round Head Phillips Screw
(16) 4-40 x 1/2" [13mm] SHCS
(8)
8-32 x 1-1/4" [32mm] SHCS
(4) 8-32 x 1" [25.4mm] SHCS
(1) 3/32" [2.4mm] Wheel Collar
(4) 3/16" [4.8mm] Wheel Collar
(1) 2-56 x 36" [914mm] Pushrod – Thread One End
(2) 2-56 x 4" [102mm] Pushrod – Threaded One End
(4) 4-40 x 12" [305mm] Pushrod – Threaded One End
(3) 4-40 x 36" [914mm] Pushrod – Threaded One End
(20) #4 Lock Washer
(34) #4 Flat Washer
(4) #2 Flat Washer
(20) #8 Lock Washer
(20) #8 Flat Washer
(1)
Glow Fuel Tank Hardware Bag
(1) Gas Fuel Tank Hardware Bag
(1) Engine Mounts (L&R)
(1) Tailwheel Assembly
(2) 2 x 80mm Rubber Bands
(6) 20 x 120mm Hook & Loop Material
(8) Strut Braces
(1) Nylon Retainer (for Screw-Lock Pushrod Connector)
(4) Hardwood Cowl Mounting Blocks
Kit Contents (Not Photographed)

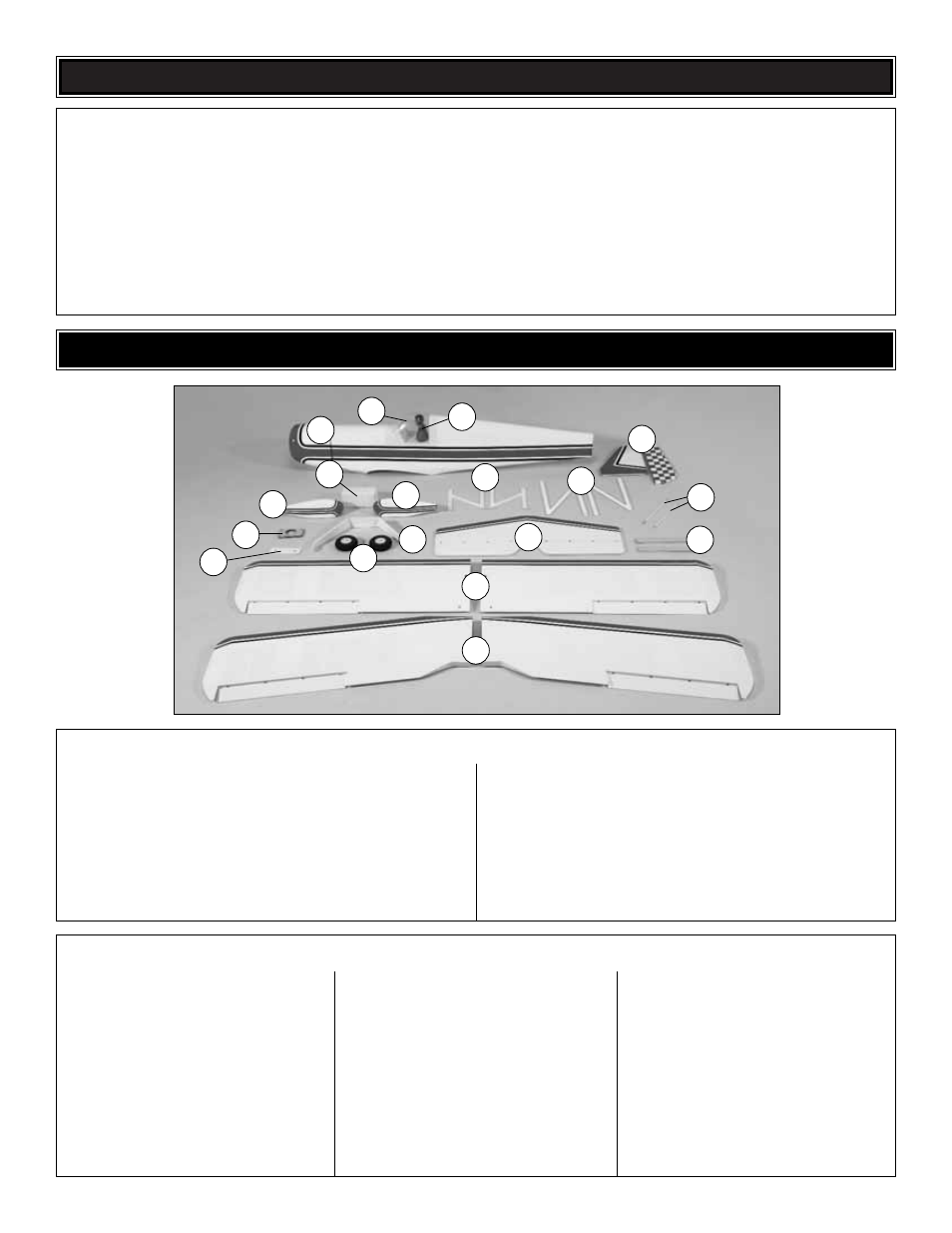

Kit Contents
1
3
5
6
2
2
4
10
11
17
16
15
14
13 12
7
9
8
