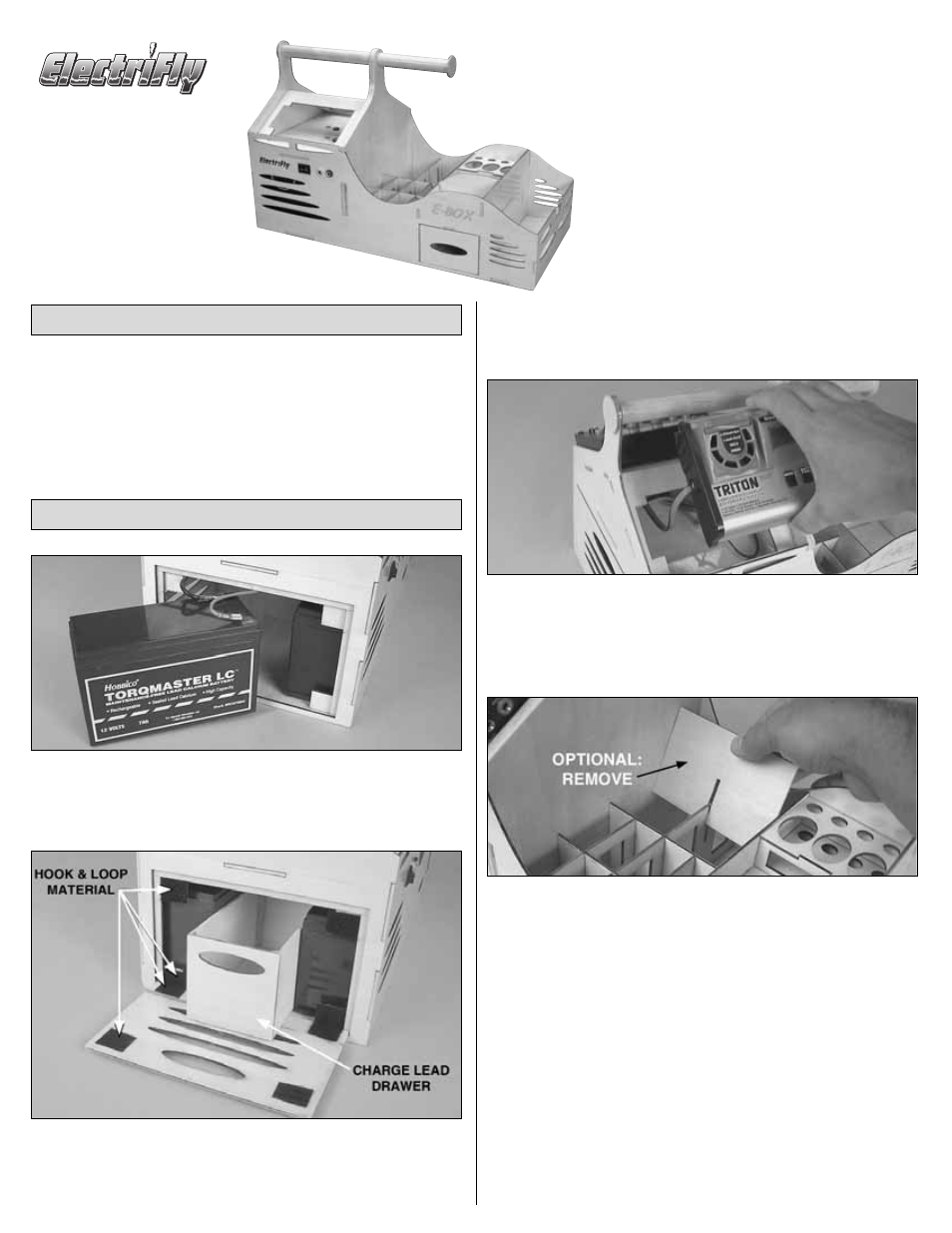

Great Planes Compact E-Box - GPMP1006 - Manual

This ElectriFly ™ Ultra E-Box was designed to use one or two
Hobbico ® TorqMaster ™ LC sealed batteries (HCAP0800) or other
sealed batteries of the same size, and to fit the Great Planes ®
Triton ™ charger (GPMM3150) or the Hobbico Quick Field
Charger ™ MKII (HCAP0290). Fitting any other charger may
require modifications to the box.
❏
1. Slide one or two sealed batteries into the battery
compartment. Connect the spade connectors to the batteries.
Note the polarity of the batteries (the red spade connectors go
with the red wires and positive battery terminals)
❏
2. Replace the charge lead drawer. Cut four 3/4" x 3/4" [19mm
x 19mm] pieces of hook and loop material. Remove the protecting
tape on one side and apply them to the tabs in the battery
compartment. Remove the tape on the other side and position the
hatch. The hook and loop material will stick to the hatch.
❏
3. Cut the battery wires on the chargers to the length desired
and solder banana plugs (HCAP0310) on them. Plug the
chargers in and slide them in place.
❏
4. Stock your box with your flight accessories.
Optional: This wall can be removed to enlarge the compartments.
Get Your Box Ready to Use
Recommended Accessories
GPMZ0304 for GPMP1004 Contents © Copyright 2004
ULTRA
E-BOX
™
