FRONT PANEL CONTROLS

High Contrast Liquid Crystal Display: Fully detailed

LCD provides a visual indication of the selected channel
and all selected functions at a glance. Backlit for viewing
at night.

CTCSS: A built-in Continuous Tone Coded Squelch

System provides quiet channel operation.

Overvoltage Protection: Special overvoltage detection

circuitry protects the radio and warns of excessive
voltage conditions by flashing the display.

Surface Mount Technology: The very latest surface

mount component types, design and assembly techniques
and quality control procedures are used to ensure the
highest performance and reliability.

Designed and Manufactured in Australia: The

TX3220 has been totally designed and manufactured in
Gladesville nSW to meet the demanding needs of the
Australian community.

VOLUME

Rotate the Volume control clockwise past the ‘click’ to
turn the TX3220 On. Adjust the volume control for a
comfortable listening level.

If no sound is heard, temporarily unmute the radio by briefly
pressing the SQL key. You can now adjust the volume by
listening to the receiver’s background noise. When finished,
briefly press the SQL key again to re-mute the radio.

BACKLIghTINg

The Liquid Crystal Display and function keys are backlit for
easy viewing at night or in low light situations. The back
lighting is on at all times while the TX3220 is turned On.

SELECTINg ChANNELS

Select the required channel by rotating the Channel
selector
knob. Rotate the knob clockwise to select higher
channels and counter-clockwise to select lower channels.
The selected channel is displayed on the LCD.

SQUELCh

The Squelch is used to eliminate any annoying background
noise whenever there are no signals present. The Squelch
can be opened or closed with the SQL key. When the
Squelch is open, the receiver’s background noise can be
heard and ‘BUSY’ is displayed. When the Squelch is closed,
the receiver remains quiet while there are no signals present
but any incoming signals will override the Squelch and be
heard in the speaker.

To Open the Squelch

Briefly press the SQL key. A low beep with be heard.
If there are no signals present you will hear the receiver’s
background noise.

To Close the Squelch

Briefly press the SQL key again. A high beep will be heard
and the receiver will become quiet.

OPERATION

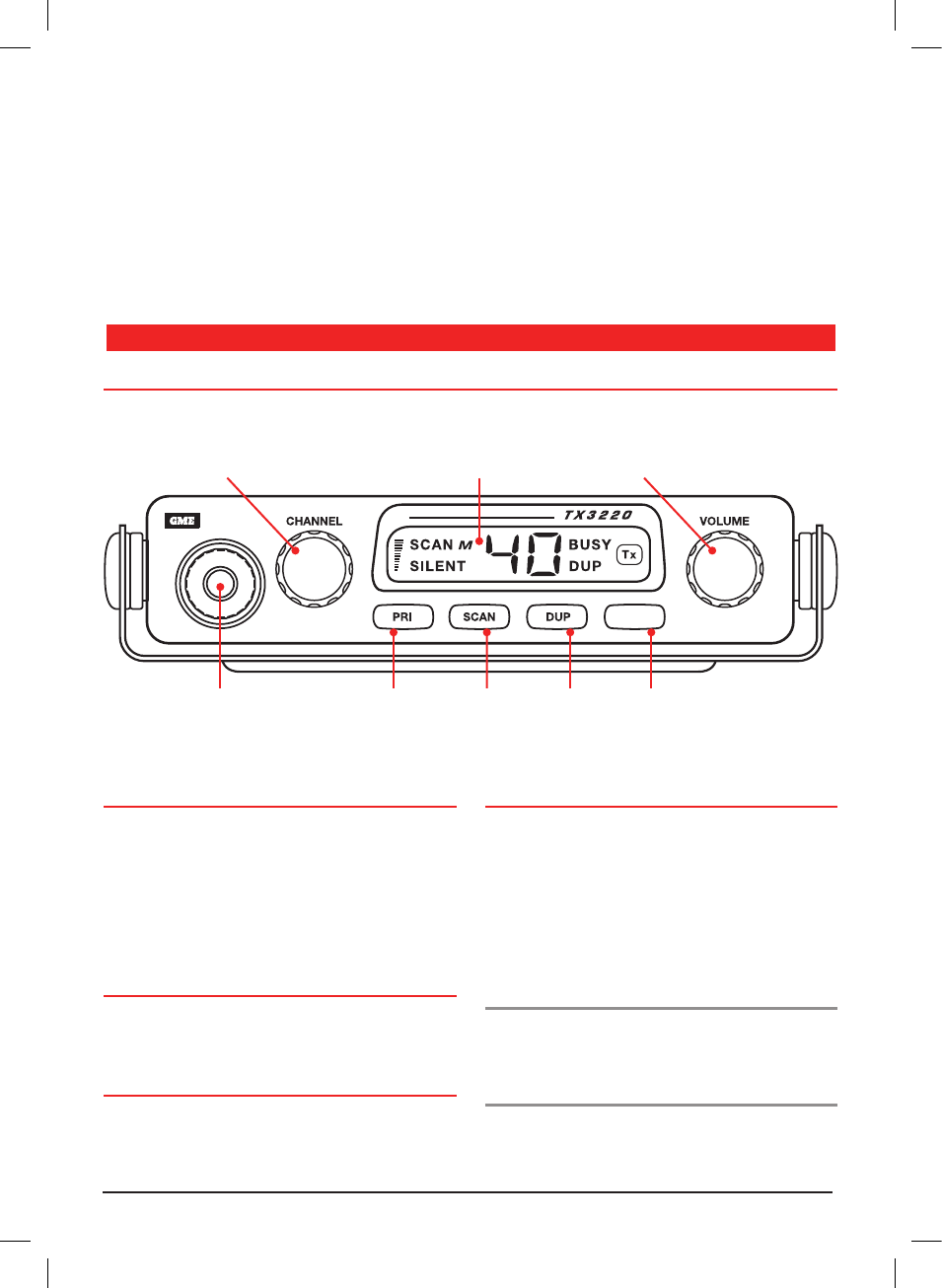

Channel Selector

Liquid Crystal Display

Volume Control

Microphone Port

Priority Channel

Key

Scan Key

Duplex

Key

Squelch Key

SQL

TX3220

InSTRUCTIOn MAnUAL
