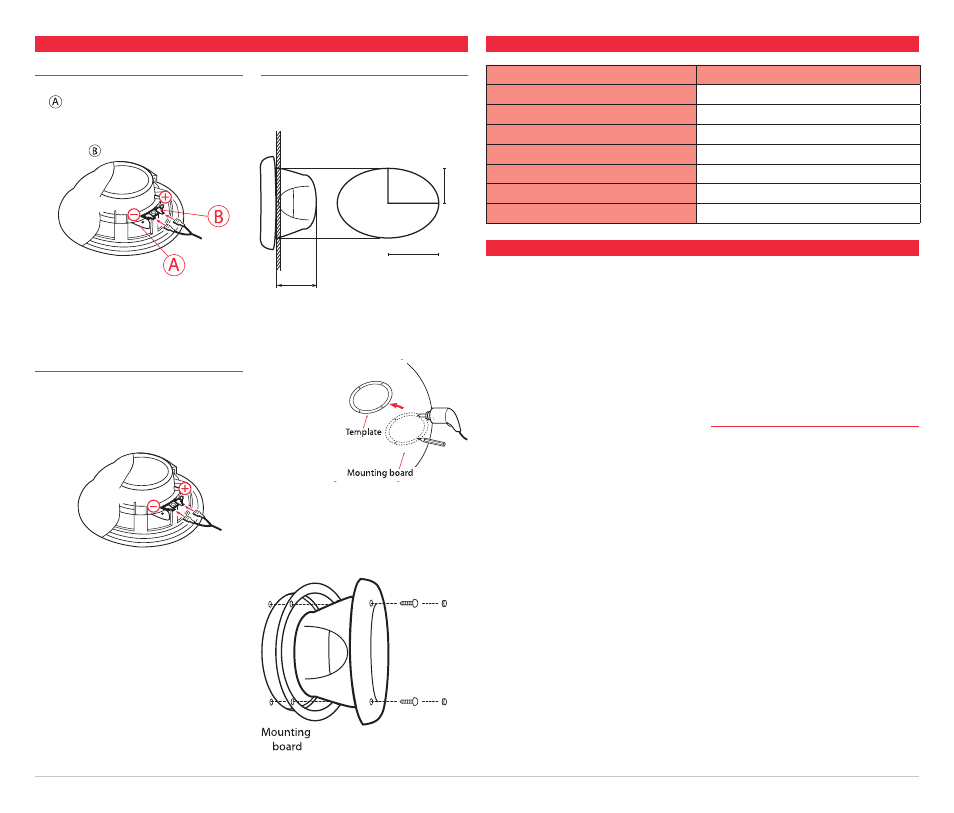

SPK007 TECHNICAL SPECIFICATION AND CUTTING TEMPLATE
Speaker driver SpecificationS
WarrantY
Mounting inStructionS
precautionS
1. Please avoid contact with inside speaker wire
2. Do not change the polarity of the speaker
terminal
assembly
3. Make sure lead and speaker terminals do not
contact metal.
4. When making connections, please refer to the
instruction manual of marine stereo used.
connecting
1. Attach the speaker wires (supplied) to the
speaker terminals be sure to connect the
correct spade connector to the correct size
terminal.
2. Connect the other end of the speaker wires to
your amplifier/stereo ensuring ‘+’ goes to ‘+’
and ‘–’ goes to ‘–’.
Mounting
1. When mounting the SPK007 in the kick panel,
make sure there is a clearance of 90 mm (3.5”)
behind the well.
2. Push out the template from this leaflet and use
to mark the position of the mounting screws
and the outline of the speaker hole.
Drill the mounting
holes and cut
the hole for
the speaker.
3. Place gasket around hole. Place speaker in hole
and using screws supplied screw speaker into
place.
4. Cover screws with cover plugs supplied.
GME limit this warranty to the original purchaser of
the equipment.
GME warrant the SPK007 to be free from defects in
material and workmanship for a period of thirty six
(36) months from the date of purchase from their
authorised retailer.
Should the product require servicing during this
period, all labour and parts used to effect repairs will
be supplied free of charge. GME reserve the right to
determine whether damage has been occasioned by
accident, misuse or improper installation whereby the
warranty would be void, including equipment which
has been damaged due to:
(a) Incorrect or reverse polarity connection to
a battery or power supply or to an incorrect
supply voltage.
(b) Operation without an antenna or by connection
to an antenna which has been incorrectly
installed, resulting in damage to the speaker’s
output circuit.
(c) Effects of water or moisture penetration.
(d) Non-factory modifications.
procedure to be followed by claimant: In the
event of a defect occurring during the warranty
period, the original purchaser may return the
defective unit along with suitable proof of purchase
date (i.e. receipt, docket, credit card slip etc.) and
a full description of the defect to the retailer from
whom the unit was purchased. All freight charges
incurred for transportation by the retailer or GME are
the purchaser’s responsibility.
GME AFTER SALES SERVICE
Your speaker is especially designed for the
environment encountered in land and marine
installations. The use of all solid state circuitry, careful
design and rigorous testing, result in high reliability.
Should failure occur however, GME maintain a fully
equipped service facility and spare parts stock to
meet the customer’s requirements long after expiry of
the warranty period.
To Amp
/Stereo
86 mm
(3.4”)
111.5 mm
(4.4”)
76.5
mm
(3”)
Spk007
System Coaxial speaker
power (Watts) 170
tweeter - mm (inches) 13.28 mm (½) Neo PEI Dome
efficiency (1W/1 M) 90 db
frequency response 60 Hz–22 kHz
impedance (ohms) 4
Weight - kgs (lbs) 1.69 (3.73)
