ASSEMBLY INSTRUCTIONS
Frame Parts
x8
Top Center Hub
Stakes
(Attached to tent)
Steel Poles
Step 1- TENT SET UP
Heavy Duty
Stakes
To prolong the life of your tent floor, select a level, clean area for the campsite.
1) Spread the tent body out on the ground.
2) Fully open all of the poles.
3) Starting on one side, insert “hooked” side of Steel Poles through pole sleeve atop of tent and into the opening of the steel hub. (Figure A)
Insert bottom of pole into pin at bottom of tent. Repeat process on corners of the tent. (Figure B)
4) Attach all of the pole clips to all steel poles. (Figure C)
5) Stake the tent down through the rings at the ends of the poles with heavy duty stakes. (Figure D)
6) If not attaching the rainfly, tie extra guy lines at the metal rings on steep poles and stake down. (Figure E)
WARNING: Do not hook shower bag inside tent without first inserting fly and then attaching guylines at the nylon loops on rainfly to stake
down. No doing so will cause undue stress on frame and possibly bend or collapse. Do not attach more than a 3 gallon water bag.
Steel Pole Hubs
x4

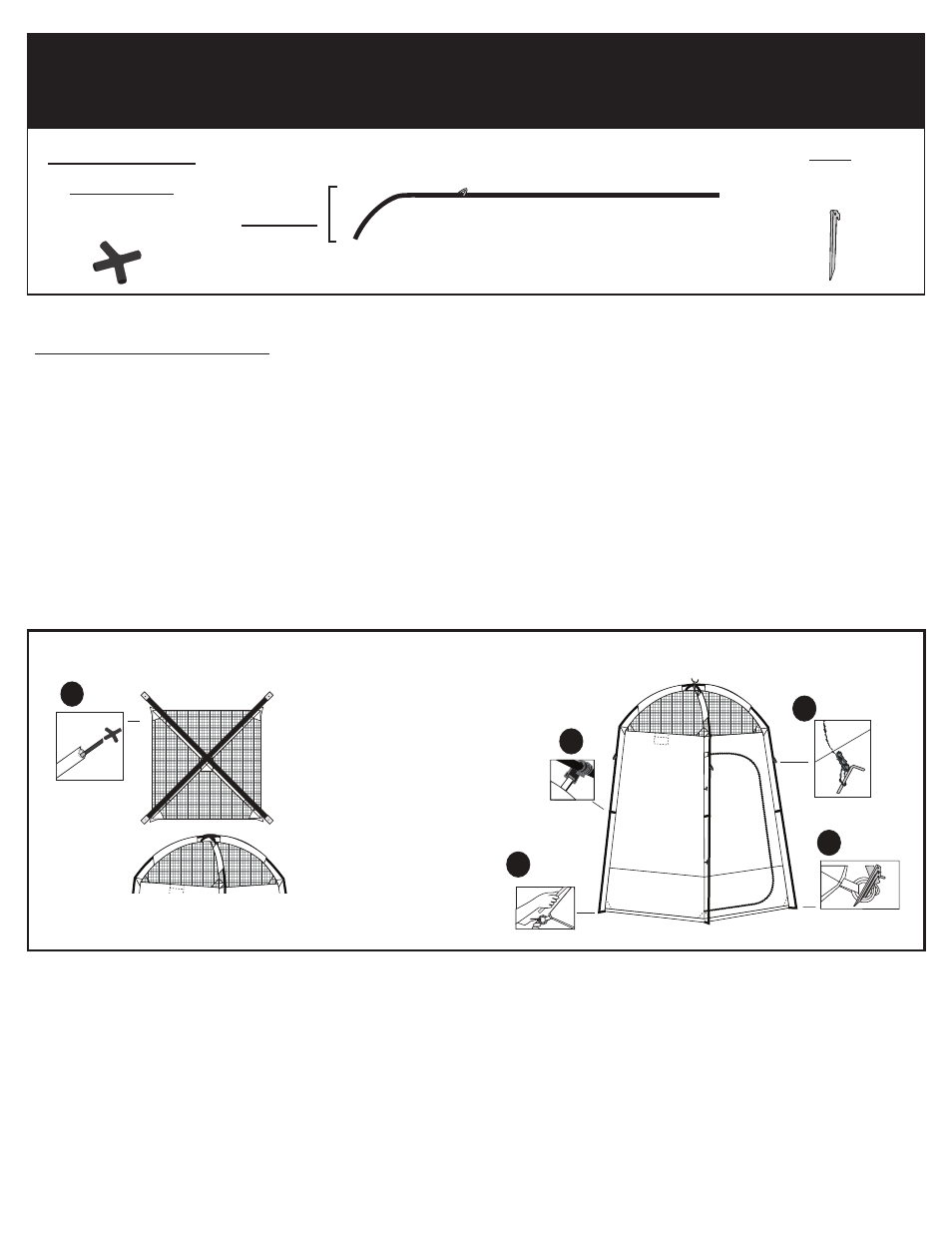

TENT SET UP DIAGRAM
