1 Cart base PM000100AV 1
2 Iso mount PM003700AV 4
3 5/16-18 Nut ✽ 4
4 Short handle assy. [incl. nuts, bolts, & washers] PW071200SV 1
5 Wheel WA120100AV 2
6 Pal nut kit [incl. (2) pal nuts] PW070000SV 1
7 Axle assy. [incl. (2) pal nuts, bolts & nuts] PW071100SV 1
8 Right leg assy. [incl. nuts, bolts, washers & shock absorber] PW070900SV 1
9 Shock absorber kit [incl. (2) 1/4-20 x 1 1/2” bolts & nuts] PW070100SV 1
10 Left leg assy. [incl. nuts, bolts, washers & shock absorber] PW071000SV 1
11 Hose rack assy. [incl. (4) #10 sheet metal screws] PW070200SV 1
12 Long handle assy. [incl. nuts, bolts & washers] PW070800SV 1
13 Gun PM021600AV 1
14 Lance/nozzle PM021500AV 1
15 High pressure hose PM021700AV 1
16 Hardware kit - Not Shown [ incl. all nuts & bolts] PW070400SV 1
Gasoline Powered
Pressure Washers
1
2 4
3
5
6
7
8
9
10
11
12
12
13
12

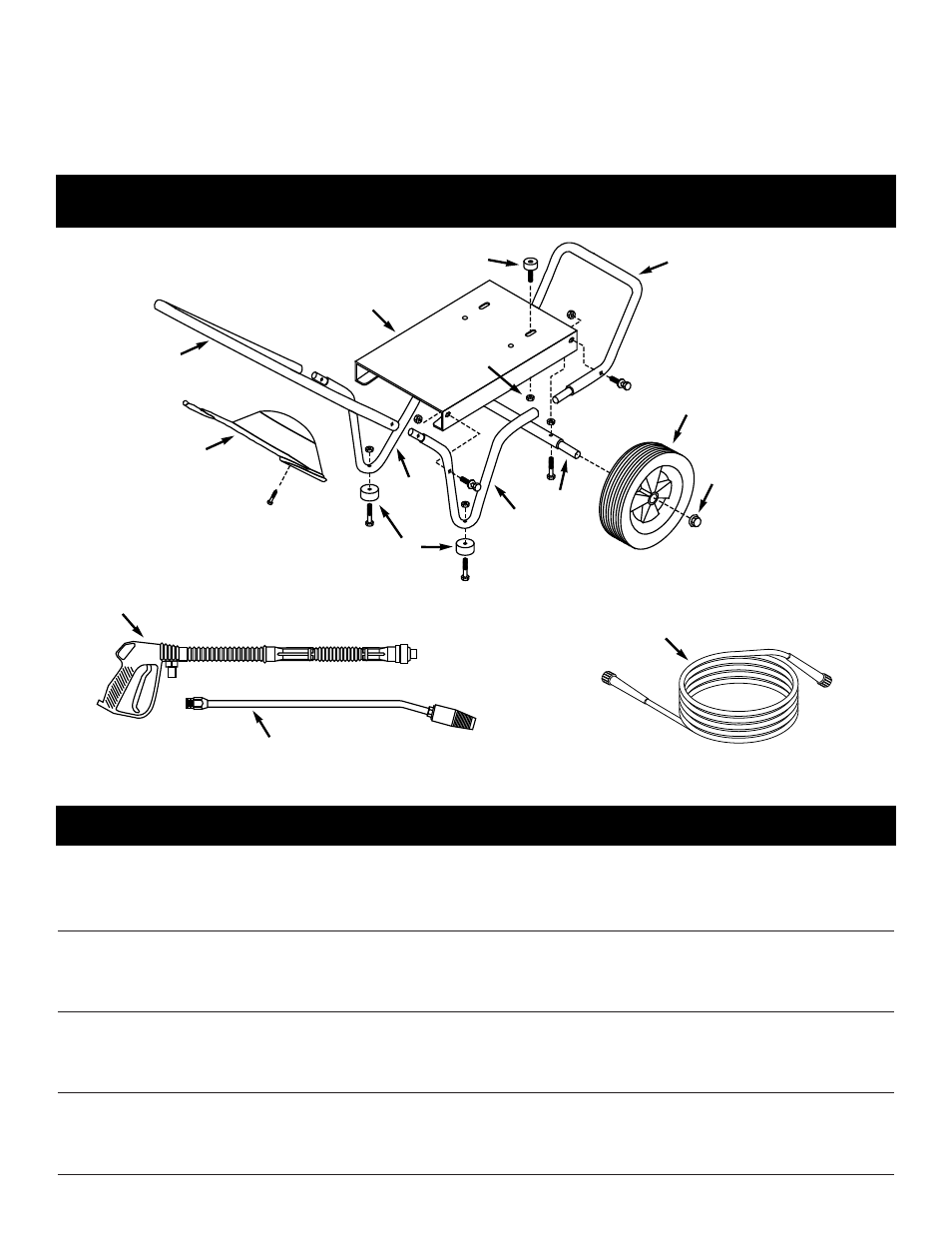

Cart Assembly for Model PW2250
●
All nuts are 1/4-20 and all bolts are 1/4-20 x 1 3/4 unless specified otherwise
Replacement Parts List Model PW2250
Ref.
No. Description Part Number Qty.
✽ Indicates Std. hardware
13
14
15
