Specifications
Physical
Size (WHD): 14.2" [360 mm] x 2.4" [60 mm] x 10.8" [274 mm]
Weight: 8.0 lbs [3.6 kg]
Enclosure: Steel and aluminum with durable silver and black powder coat paint
Mounting: Shelf or rack-mount with optional RKHD Rack Kit)

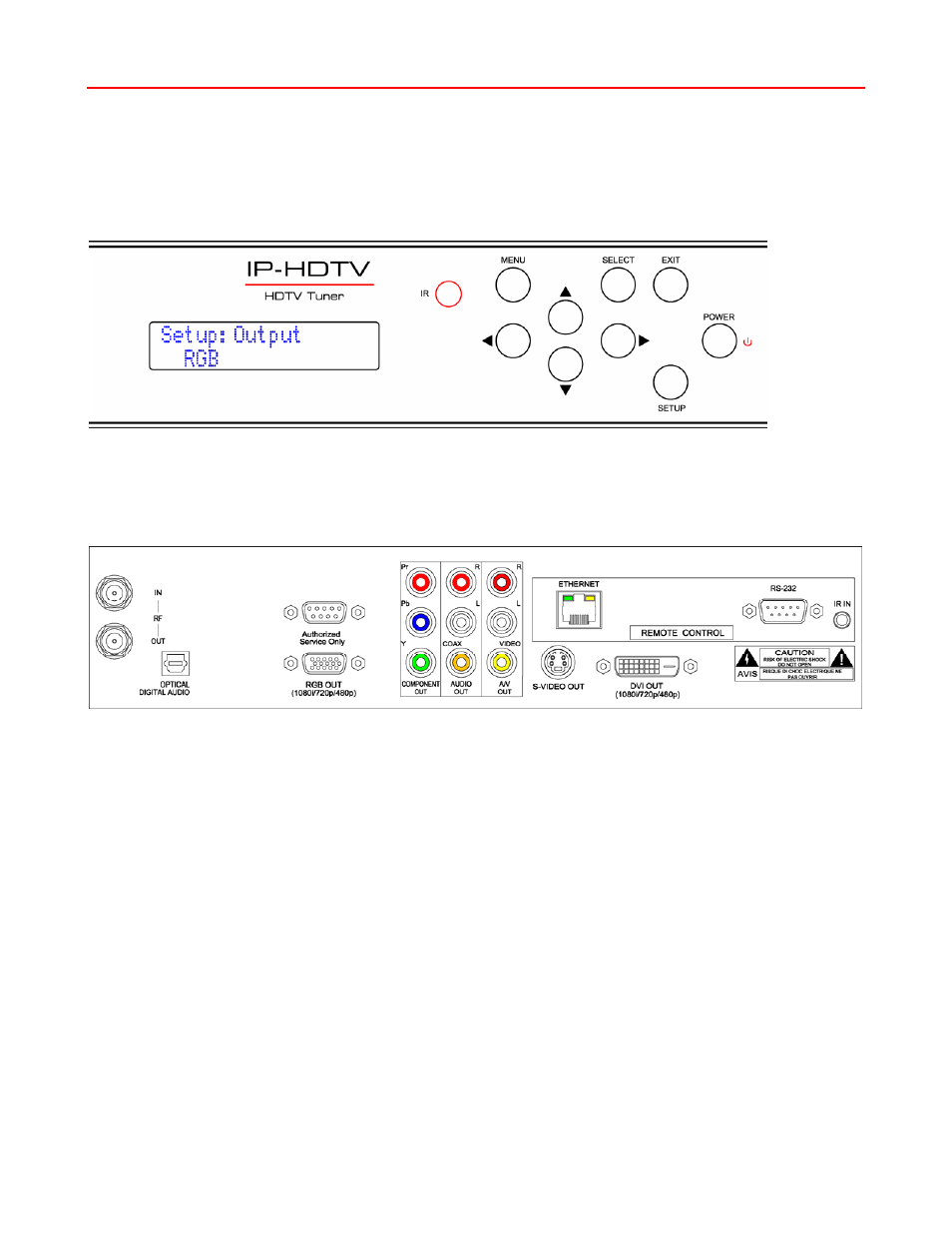

Front Panel
Display: Blue LCD, 2 lines of 20 characters each
IR: IR sensor, 57 kHz
Control: Buttons for Setup, Menu, Select, Exit, and Left, Right, Up, and Down operation
Rear Panel
RF In: 'F', female, 75 ohm impedance
RF Out: 'F', female, 75 ohm impedance loop out
Digital Audio: TOSlink optical output, Dolby Digital or PCM
Service only: DB-9 female RS-232 for factory service and firmware updates
RGB Out: RGB DB-15 female (1080i/720p/480p)
Component Out: Pr, Pb, Y outputs (1080i/720p/480p/480i)
Audio Out: Stereo RCA, Mono, Stereo, or SAP, fixed or variable level
RCA female, coax digital audio output
A/V Out: Stereo RCA audio, Mono, Stereo, or SAP, fixed or variable level
RCA composite video output, 1V p-p at 75 ohm impedance
Simultaneous 480i, on-screen menu displayed when digital set to 480i
S-Video Out: Mini DIN 4-pin, Y - 1V p-p at 75 ohms, C - 0.286 V p-p at 75 ohms
Simultaneous 480i, on-screen menu displayed when digital set to 480i
DVI Out: DVI-D with HDCP (1080i/720p/480p), HDMI video with optional adapter
Ethernet: 10/100baseT RJ-45 jack
Ethernet LEDs: Right yellow LED indicates 100 baseT speed, 10 baseT when off
Left green LED indicates link, blinks with data activity
RS-232: DB-9 male, RS-232 data link to control system, PC or RS-232 controlled display
300 to 115,200 baud (9600 default), 8 data bits, no parity, 1 stop bit
IR In: 3.5 mm stereo input for external IR sensor or wired IR (no carrier, discrete codes)
Power In: AC Power Cord, 120 VAC, 60 Hz, 16W (on right, not shown)
Contemporary Research 4 IP-HDTV HD Tuner
