14 735 Articulated Truck specifications

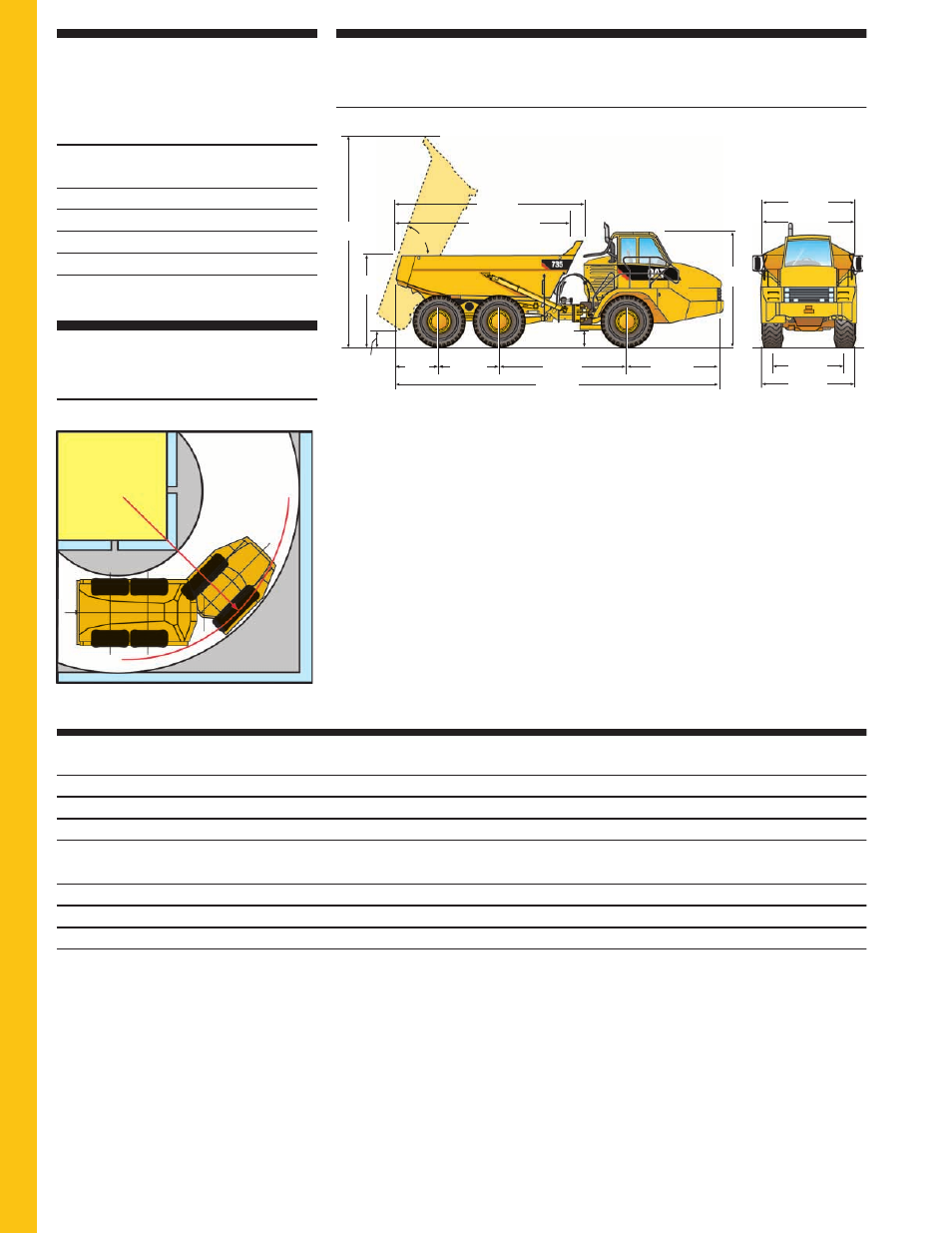

Turning Circle
Dimensions are for machines equipped
with 26.5R25 tires.
Turning dimensions
Steer angle — left/right 45
°
SAE turning radius 8138 mm 320.4 in
Clearance radius 8595 mm 338.4 in
Inside radius 4182 mm 164.7 in
Aisle width 5637 mm 221.9 in
Steering
Lock to Lock 4.6 seconds @ 60 rpm
Dimensions
Optimal Loader/Truck Pass Matching
Hydraulic Excavators 385C 365C 345C
Loader Capacity (Tonnes) – 50 min hr 954-1193 750-1100 665-805
Loader Capacity (Tons) – 50 min hr 1049-1314 825-1210 735-885
Passes 3 4 5
Wheel Loaders 988H 980H 972H 966H 962H
Loader Capacity (Tonnes) – 50 min hr 565-790 590-650 490-565 400-535 325-400
Loader Capacity (Tons) – 50 min hr 625-870 650-715 540-625 440-590 360-440
Passes 3 3-4 4-5 5 6
An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 385C, 365C and
345C Hydraulic Excavators; and Cat 966H, 972H, 980H and 988H Wheel Loaders. This results in increased production and lower
system costs per unit of volume moved.
° 70
534 mm
1.7'
5467 mm
17.9'
Inside
of Body
6088 mm
20.0'
9.8'
2982 mm
6809 mm
22.3'
1966 mm
6.4'
1458 mm
4.7'
4244 mm
13.9'
3221 mm
10.5'
10 889 mm
35.7'
635 mm
2'
3703 mm
12.1'
3353 mm
11.00'
2687 mm
8.8'
* If equipped with a scissor tailgate.
3690 mm*
12.1'
3328 mm
10.9'
