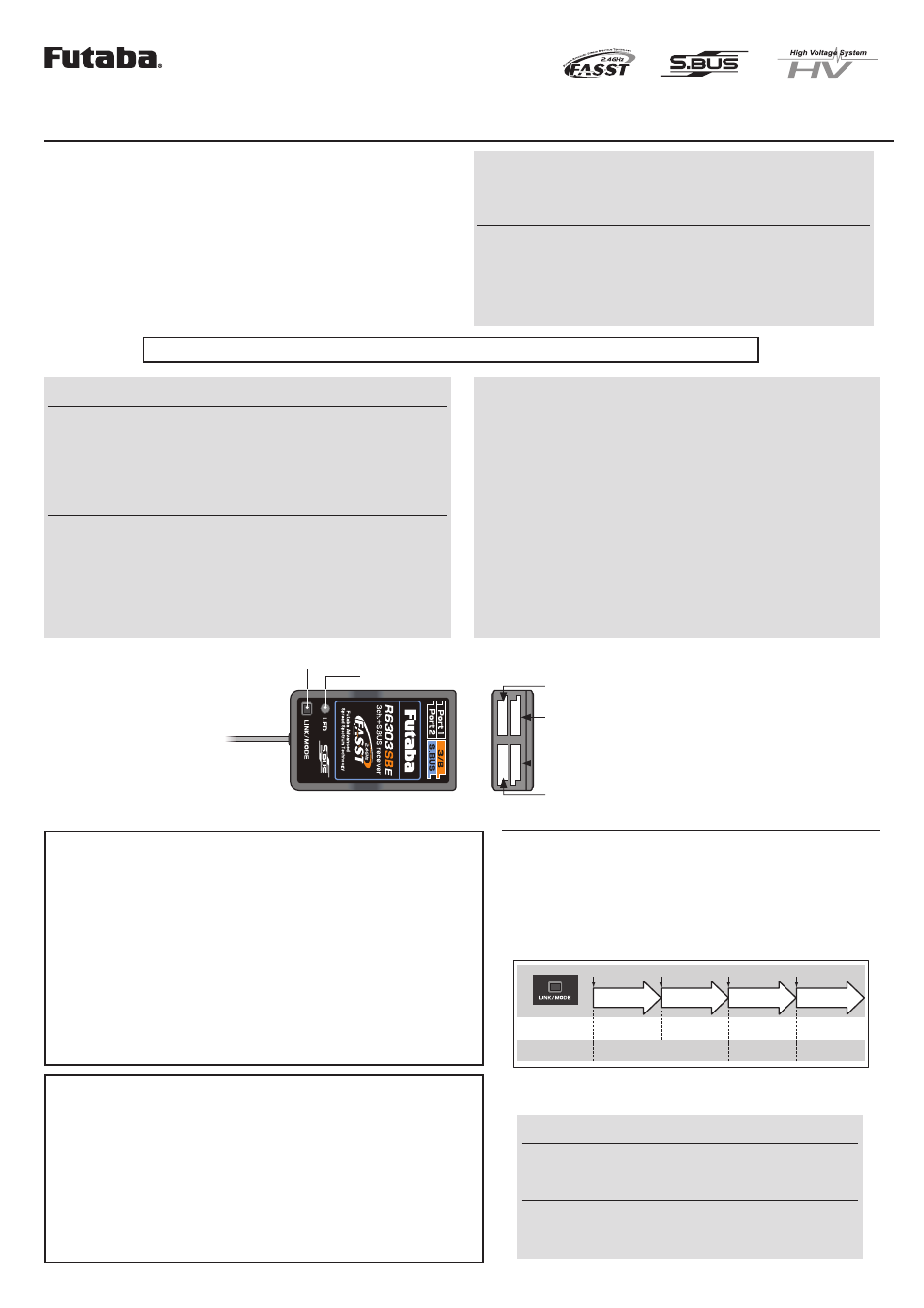

Futaba R6303SBE - Manual

Usage condition for conventional system output
(Ch1-3) on "High Speed mode"
CAUTION
The "High Speed mode" accept the digital servos only or
most type of peripherals.
• If an analog servo is connected to these outputs it will cause a
malfunction. Please check the peripherals if there is a malfunction full
stick movement. If there is a malfunction change the receiver back to
"Normal mode."
Applicable systems: FASST-2.4GHz 7ch or 8ch/10ch/Multi-ch system
R6303SBE
Compliance Information Statement
(for U.S.A.)
This device, trade name Futaba Corporation of America, model number R6303SBE,
complies with part15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesiredoperation.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.
TEL (217)398-8970 or E-mail: [email protected] (Support)
R6303SBE Specifications
FASST-2.4GHz (7ch/8ch/10ch/Multi-ch) system/S.BUS port and 3 channels for
conventional system/high-speed receiver
• Size: 0.89 x 1.47 x 0.37 in. (22.5 x 37.4 x 9.3 mm)
• Weight: 0.22 oz. (6.3g)
• Power requirement: 3.7V to 7.4V(Voltage range: 3.5 to 8.4V)
* Be sure that when using ESC's regulated output the capacity of the ESC must meet your usage
condition.
* The Battery F/S voltage is set for 4-cell NiCd/NiMH battery. Battery F/S function doesn't
work properly when other type battery is used.
* The fail safe function can be set for each channel when on "Multi-ch" mode, however, it differs
according to the transmitter. When on "7ch" mode, the fail safe function can be set for 3-channel
only.
* S.BUS port: R6303SBE can be used up to 7 channels or less on the "7ch" mode and 16 channels
+ DG1/2 or less on the "8ch/10ch/Multi-ch" mode, however, it differs according to the transmitter.
Thank you for purchasing a Futaba R6303SBE FASST-2.4GHz receiver.
The R6303SBE has an S.BUS system output port and 3 conventional
system channel outputs. It can also be used with conventional system
servos, etc. in addition to S.BUS system compatible servos and gyros,
etc. When the linking procedure is performed, R6303SBE recognizes the
signal mode (FASST-2.4GHz 7ch mode or 8ch/10ch/Multi-ch mode)
automatically.
The R6303SBE can change the output CH from seven groups (CH group
table).
In addition, the operating mode (high-speed mode/normal mode) can be
selected.
WARNING
Do not perform the Linking procedure with the
motor powered up. This could result in serious
injury.
Once the Linking process is completed please
cycle the power to the receiver to make sure
that it is linked and under the control of the transmitter.
Link to the Transmitter
1
Press and hold the Link/Mode button between 2 and 5
seconds.
Re-adjust the 3CH F/S position (only for TM-8)
1
Press and hold the Link/Mode button between 1 and 2
seconds.
0 to 1 sec. 1 to 2 sec. 2 to 5 sec. More than 5 sec.
0 sec. 1 sec. 2 sec.
Press and Hold
No function
With TM-8
(not included in this set)
To set the F/S
position(No re-link)
Re-link(ID set) and to
set the F/S position
No function Other than TM-8
(not included in this set)
Re-link(ID set)
CH change mode
CH change mode
5 sec.
Power Source Precautions
It is not recommended to use a power source of less then 4.0V.
However if less than 4.0V is used please keep in mind the conditions
below..
• The Fail Safe Function MUST be set to "OFF" since it will disturb the
normal operation of the receiver.
• Please make sure that the fully loaded condition on the ESC and the
Servos will not disturb normal receiver operation before the start of
your flight.
This is VERY Important once the voltage drops below 3.5 volts the
receiver will no longer continue to operate.
• Please be sure that everything on continues to work correctly all the
way down to 3.5 volts. ie: Servos, ESC...
The input voltage must not exceed the servo rating or 8.4V which ever
is lower.
Link/Mode button
LED
R6303SBE
• Port 2(Initial setting is the Channel 2)
• Port 1(Initial setting is the Channel 1)
• Channel 3 output for conventional system/Battery
terminal
• S.BUS Port
(Connectors)
1M23N17464
FASST-2.4GHz (7ch/8ch/10ch/Multi-ch) S.BUS port and 3 channels for
conventional system High-Speed receiver
for parkflight or indoor use airplanes / small size electric helicopters.
WARNING
If a part of the fuselage is made of conductive
materials such as metal and carbon, install
the receiver so that it is never covered with these
materials and the antenna never touch them.
• It becomes impossible to receive,it cases erratic operation or loss of
control.
Do not use it for a middle or large scale model.
•R6203SBE for parkflight or indoor use airplanes and small size
electric helicopters up to 1000mm of main rotor diameter.
There is a possibility of crashing when using it for the middle or large
scale model.
