Fredenstein F200 Dual Mic-Pre and Compressor

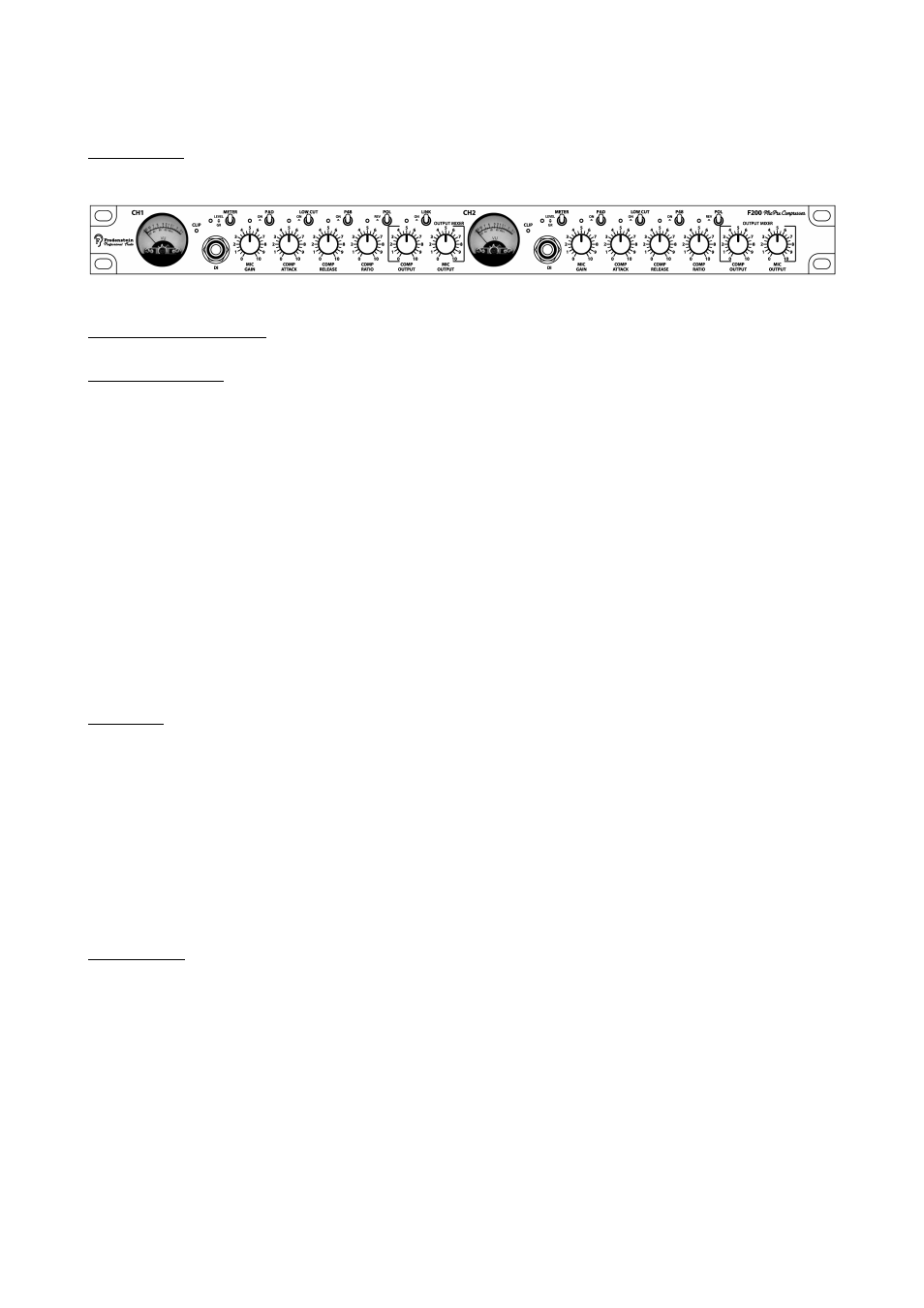

Front View:
Controls per Channel:
Rotary Controls:
MIC GAIN : Sets the microphone or line level gain
Range from 0 to 60dB
COMP ATTACK : Sets the attack time of the compressor
Range from 200us to 50ms, middle position 5ms
COMP RELEASE : Sets the release time of the compressor
Range from 70ms to 2.4s, middle position 240ms.
COMP RATIO : Sets the compression ratio
Range from 2:1 to 20:1, middle position 5:1.
COMP OUTPUT : Output level control of the compressor
Range from off to +19 dB, middle position 0 dB
MIC OUTPUT : Output level of the microphone or line signal (uncompressed)
Range from off to 0 dB, middle position -20 dB
Switches:
METER : Selects either the gain reduction of the compressor or the output level
to be display on the VU meter. 0VU equals an output level of +4 dBu.
PAD : -20dB attenuator at the input of the mic-pre to allow line level signals
LOW CUT : To reduce unwanted low frequencies the low cut can be activated
P48 : Standard P48 phantom power for compatible microphones
POL : Polarity reversal
LINK : Compressor CH1 and CH2 Stereo synchronization. Both channels will
have identical gain reduction to avoid shifting in Stereo balance.
Connectors:
DI : TRS High Impedance Direct Input accepting balanced and unbalanced
signals, normally used for instruments.
