Junction Box Type KA – Technical Manual, Rev. 1.00 August 2007

Page 3 of 4

I

NTRODUCTION AND TECHNICAL

D

ATA

The Aluminium junction box is designed for the parallel connection of up to 4 respective 6 load cells.

Type

No. of load cells

Housing size

Inputs

Output

KA-4

bis 4

80 x 250 x 52 mm

4x M16

1x M16

KA-6

bis 6

80 x 250 x 52 mm

6x M16

1x M16

The junction box type KA can be connected to the instrumentation with a shielded 6-wire signal cable.
The corner correction is done with resistors.

Housing material:

Aluminium

Protection class:

IP66

Cable connection:

By soldering

Corner correction:

By resistors

M

ECHANICAL

I

NSTALLATION

Look for a mounting location which is more or less dry and protected from environmental stress.

E

LECTRICAL

C

ONNECTIONS

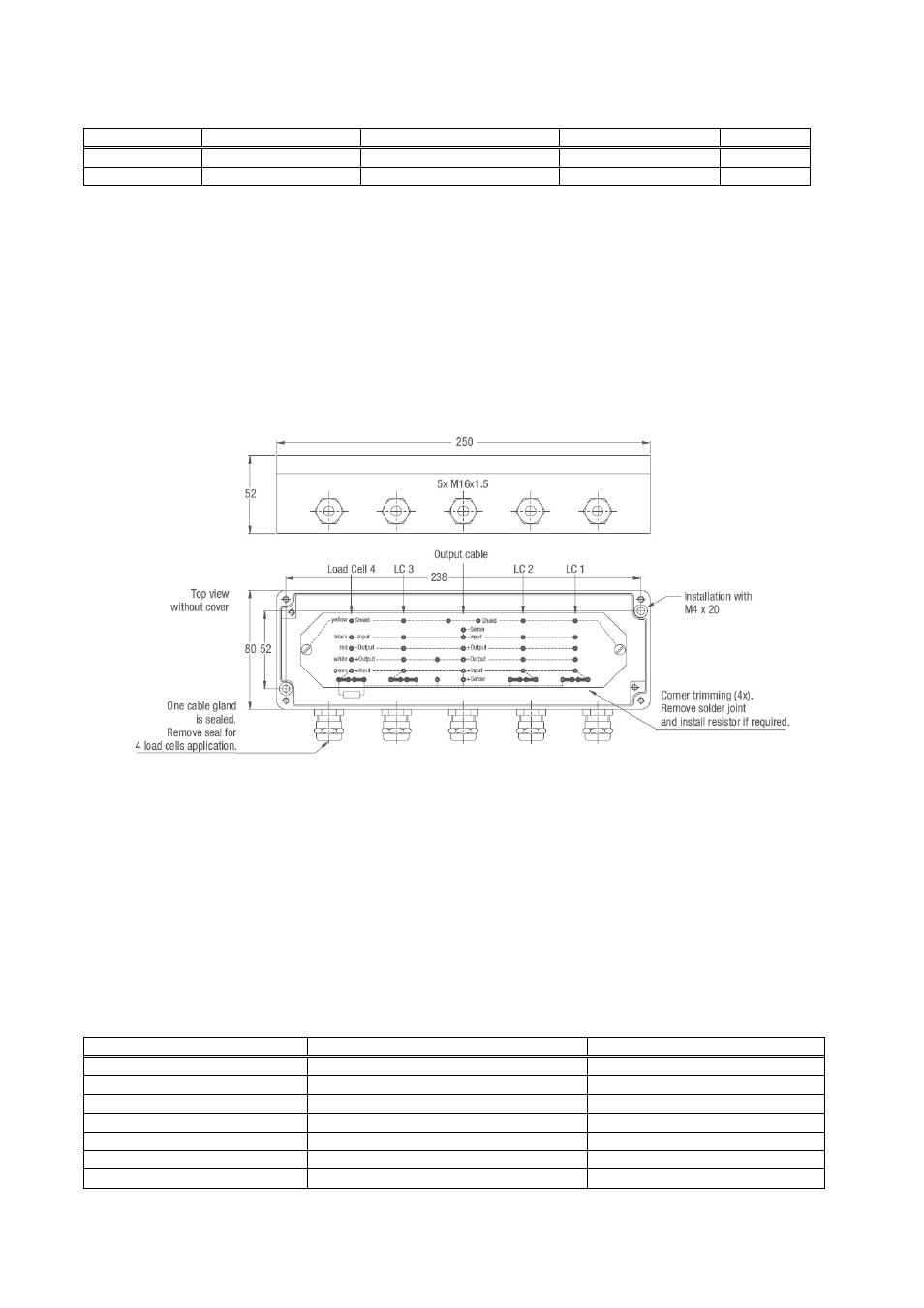

Figure 1: Dimensions in [mm]

The connection sequence of the load cells should correspond to the corners of the scale, i.e
Corner 1 = Load cell 1, Corner 2 = Load cell 2, etc.

L

OAD

C

ELL

C

ABLE

C

ONNECTION

First the cable gland (see (1) in fig.1) must be loosened. Then you have to feed the load cell cable through the
cable gland unless the shrink tube is fully disappeared in the box. The wires have to run below the printed
circuit board and will be pulled back to the top at the upper end of the printed circuit board.
Then feed the tin-plated wires through the hole at the solder point. Use a suitable soldering iron for electronic
works (at least 30 Watt ). Proper solder joints always look bright and shiny.
Never use soldering solution and soldering grease! This will destroy the printed circuit board!
Always use suitable electronic solder, e.g. S-Sn60Pb40 DIN EN 29453.

The wires have to be connected as follows:

Cable coulour

Description

Solder joint designation

yellow

= Cable shield

Shield / Schirm

red

= Signal – (Output –)

red / rot

white

= Signal + (Output +)

white /weiss

black

= Excitation – (Input –)

black / schwarz

(if applicable, brown)*

= Sense –

black / schwarz

green

= Excitation + (Input +)

green / grün

(if applicable, blue)*

= Sense +

green / grün

* if load cell is equiped with 6-wire conductor cable
