Dimensions and data, type 52-10 – Flintec 52-02 User Manual
Page 8
www.flintec.com
* Including spacer.
All dimensions in mm. Dimensions and specifications are subject to change without notice.
CAD files for customer’s own applications drawings are available on request.

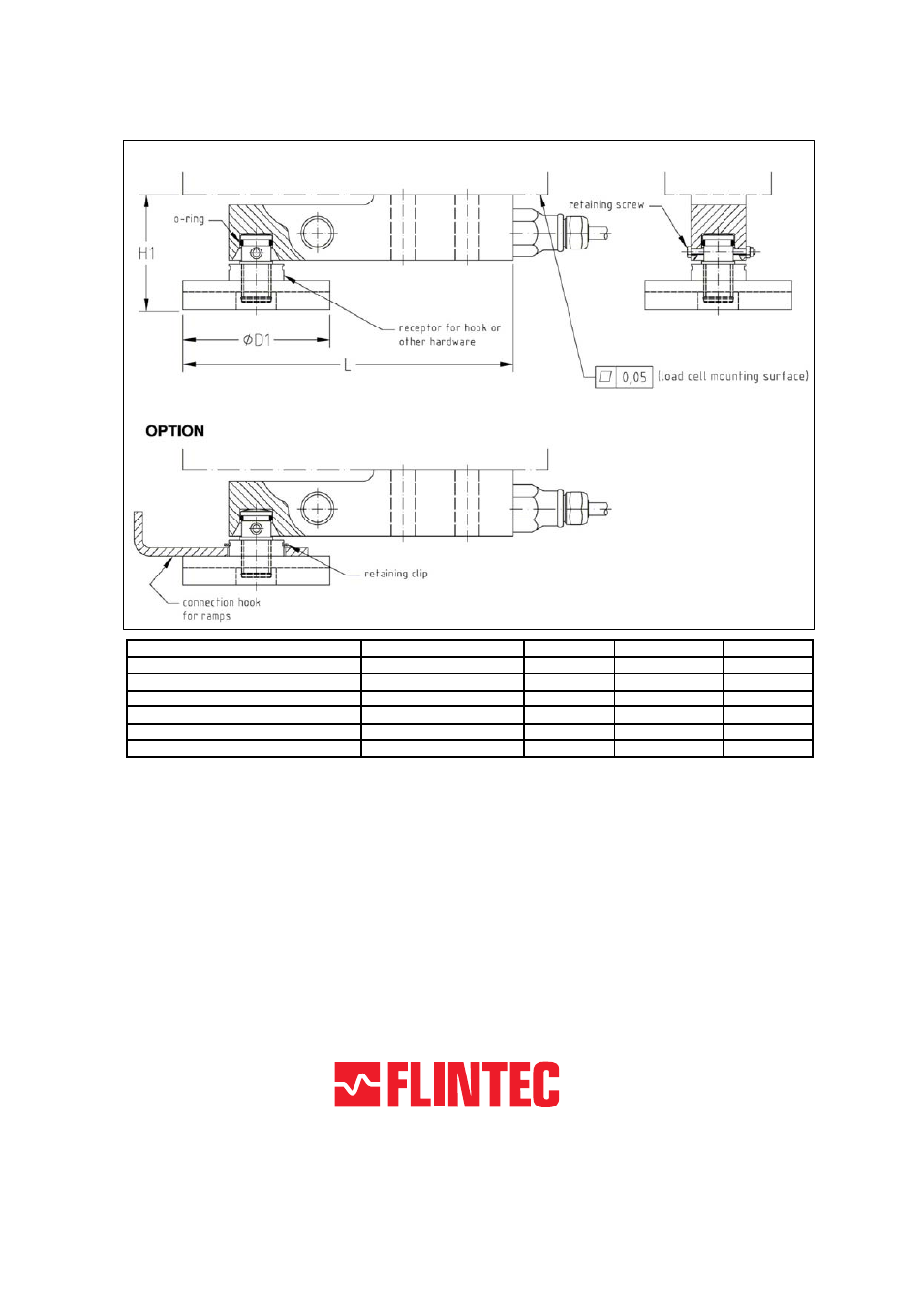

Load Cell Type
Capacity in kg
L
H
D
SB4/SB5-5 kN/10 kN/20 kN
510/1020/2039
180
63...71
80
SB6-200 N/500 N/1 kN/2 kN
20.4/51/102/204
150
65...71*
60
SB14-500 lb/1 klb
227/454
164
58...66
80
SB14-2.5 klb/5 klb
1134/2268
164
60...68*
80
SLB-200 lb/500 lb
91/227
154
57...63*
60
SLB-1 klb/2.5 klb/5 klb
454/1134/2268
164
59...67*
80
Dimensions and data, Type 52-10
