Installation
Your new mixer is supplied partially assembled. For
more information, see the parts list pages for general
arrangement drawings.
Impellers:
To install the impeller, back off the set screw as far as
possible without removing them. Insert mixing shaft
into the bore and tighten the set screw firmly to secure
the impeller to the shaft.

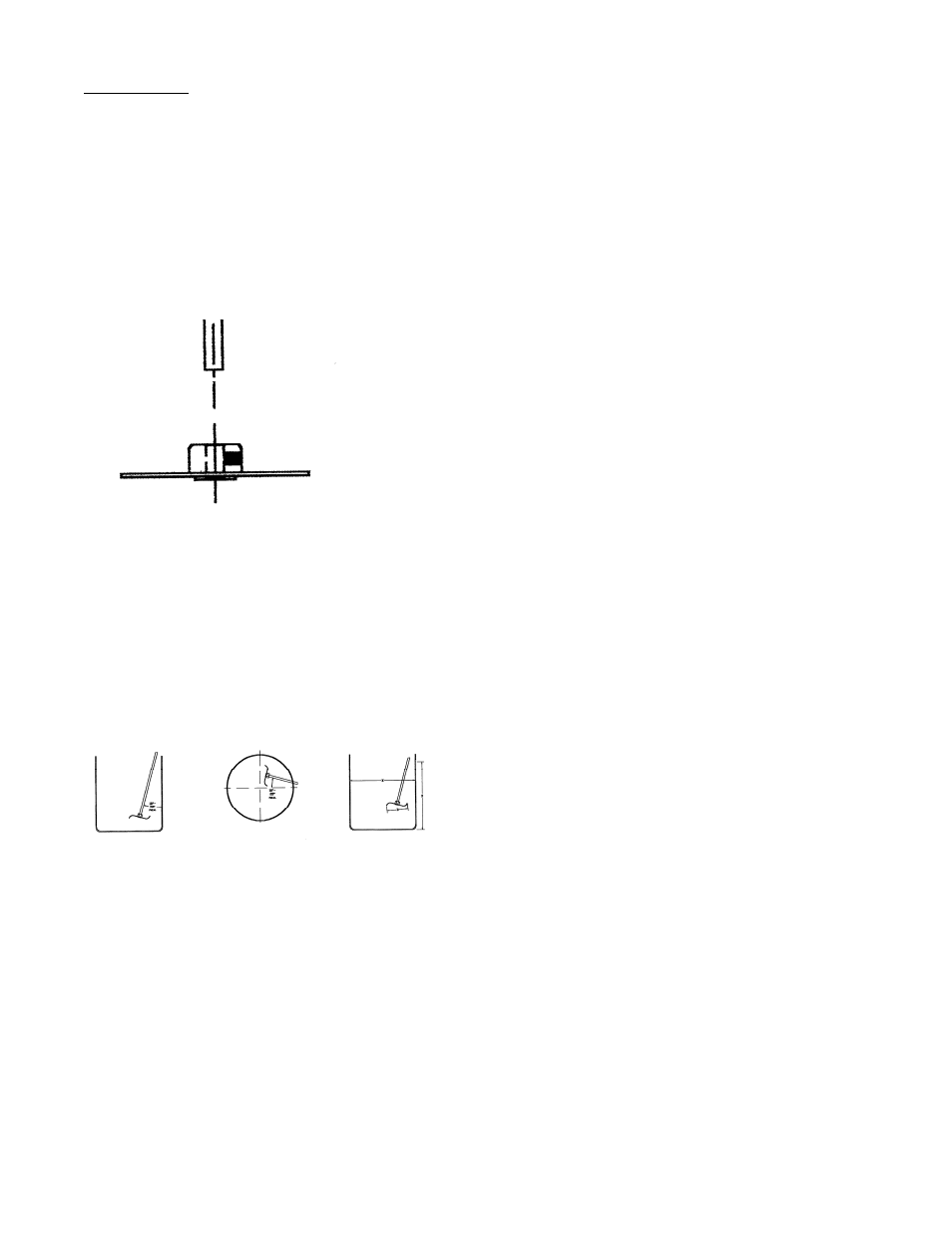

Impeller Placement:
Begin by mounting it I to 2 impeller diameters distance
off the bottom of mixing container.
The above guideline is a “rule of thumb” and may not
be the best for your situation. Experimenting with
impeller placement may provide your best results.
Assembly:
1.) Assemble mount to the powerhead using the
5/16 hexhead bolts, washers & nuts.
2.) Assemble mount to the drum lid using the 5/16
hexhead bolts, washers & nuts.
3.) Assemble the impeller(s) to the coupling &
tighten securely.
4.) Assemble the shaft/impeller to the coupling &
tighten securely
5.) Mount the filter/Lubricator to a wall & plumb to
local codes.
6.) Make sure air control valve is closed.
7.) Connect air supply from Lubricator/Filter to
inlet port.
Mixer is now ready to operate.
