CA10 Acoustic Amplifier

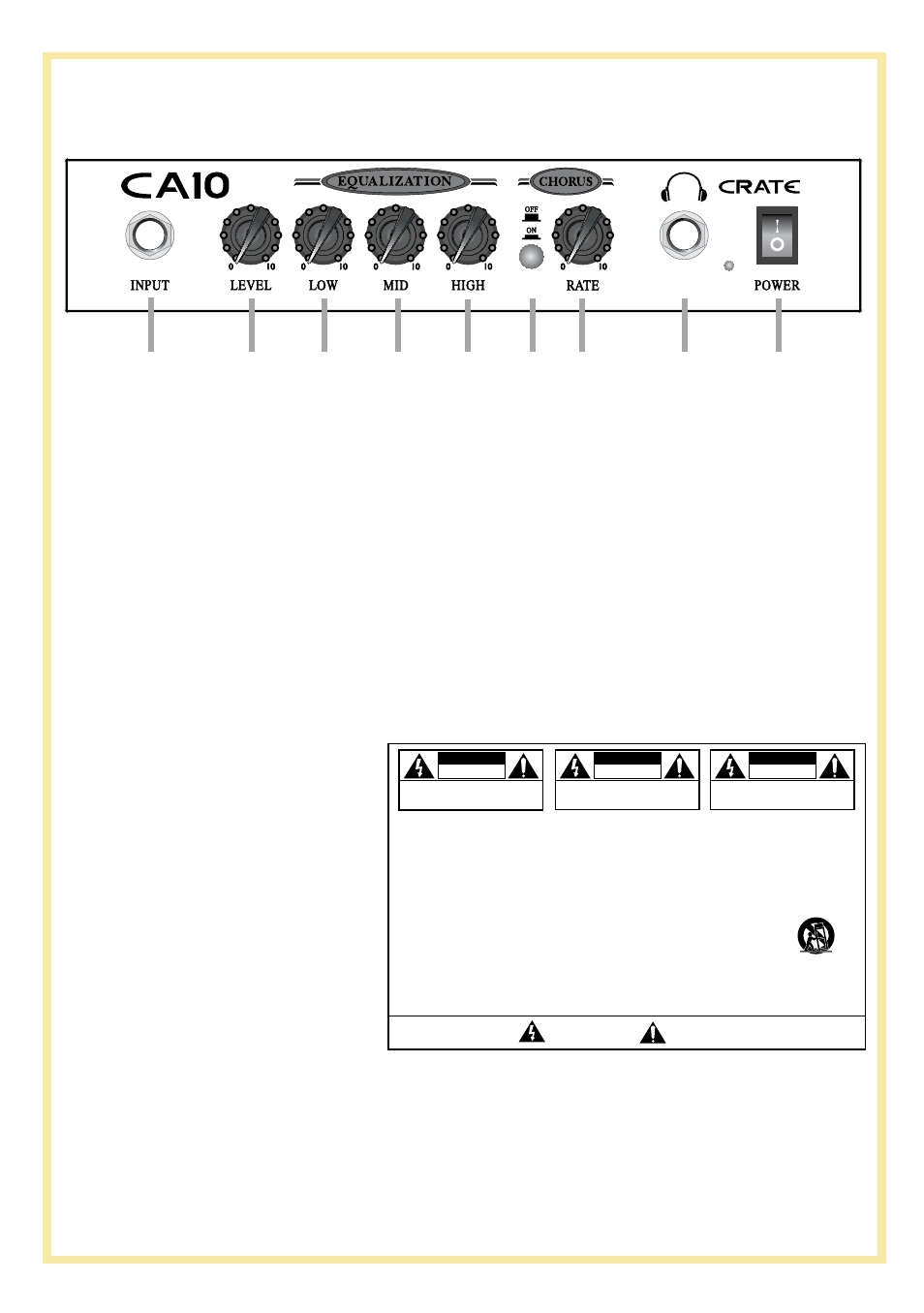

The Front Panel:
1: INPUT. This is the input jack for the guitar. Plug your guitar cord into this jack.
2: LEVEL. This controls the output level of the amplifier.
3: LOW EQ. This serves as the bass control. Adjust this control to get the best sounding bass response for
your instrument.
4: MID EQ. This serves as the midrange control. Adjust this control to get the best projection and mid-
range tones for your instrument.
5: HIGH EQ. This serves as the treble control. Adjust this control so your high notes and harmonic over-
tones are lively but not overpowering.
6. CHORUS ON/OFF Switch. This turns the chorus effect on and off.
7. CHORUS RATE. This controls the ripple speed of the chorus effect. Turn this control to the right to
increase the speed.
8. Headphones. This is the output jack for the headphones. When headphones are connected, no sound
is produced from the speaker.
9. POWER Switch. This turns the power amplifier on and off. The LED lights when the power amplifier
is turned on.
Specifications:
Output Power 10 watts rms @ 1.0%
THD , 8 ohm load
Speaker 1 x 6.5 inch, 8 ohms
Low ±12 dB @ 80 Hz
Mid ±12 dB @ 800 Hz
High ±12 dB @ 8 kHz
Input Impedance 2.2M ohm
Input Sensitivity 26 mV
Max Input Signal 140 mV
Total System Gain 18 dB @ 1kHz
Dimensions 12.6 in/320 mm (H)
13.6 in/345 mm (W)
10.1 in/256 mm (D)
Weight 15 lb/6.8 kg
AC Power 120 VAC/60 Hz
Power Consumption 19 watts
Specifications and information in this manual are subject to change without notice.
