How to install the hob:
Overall dimensions of the hob:
Width: 580mm Depth: 510mm
Worktop cut-out dimensions:
Width: 560mm Depth: 490mm
1. Make the required hole in the worktop. Before doing this, you must check the instructions supplied with any cooker
hood to ensure that you will have the required clearance. The cut-out (Fig.6) shows a 60mm gap from the wall to
the cut-out edge. The distance from the hob, when fitted, to the back wall is 50mm.
If a splashback/worktop upstand is to be fitted, take this into account when cutting the hole. The minimum distance
that the hob should be positioned away from the rear wall or splashback is 50mm.
2. Fix the foam seal underneath the appliance by following the outline of the worktop upon which the hob will rest
This ensures an airtight seal with the worktop. Do not use silicone type sealant.

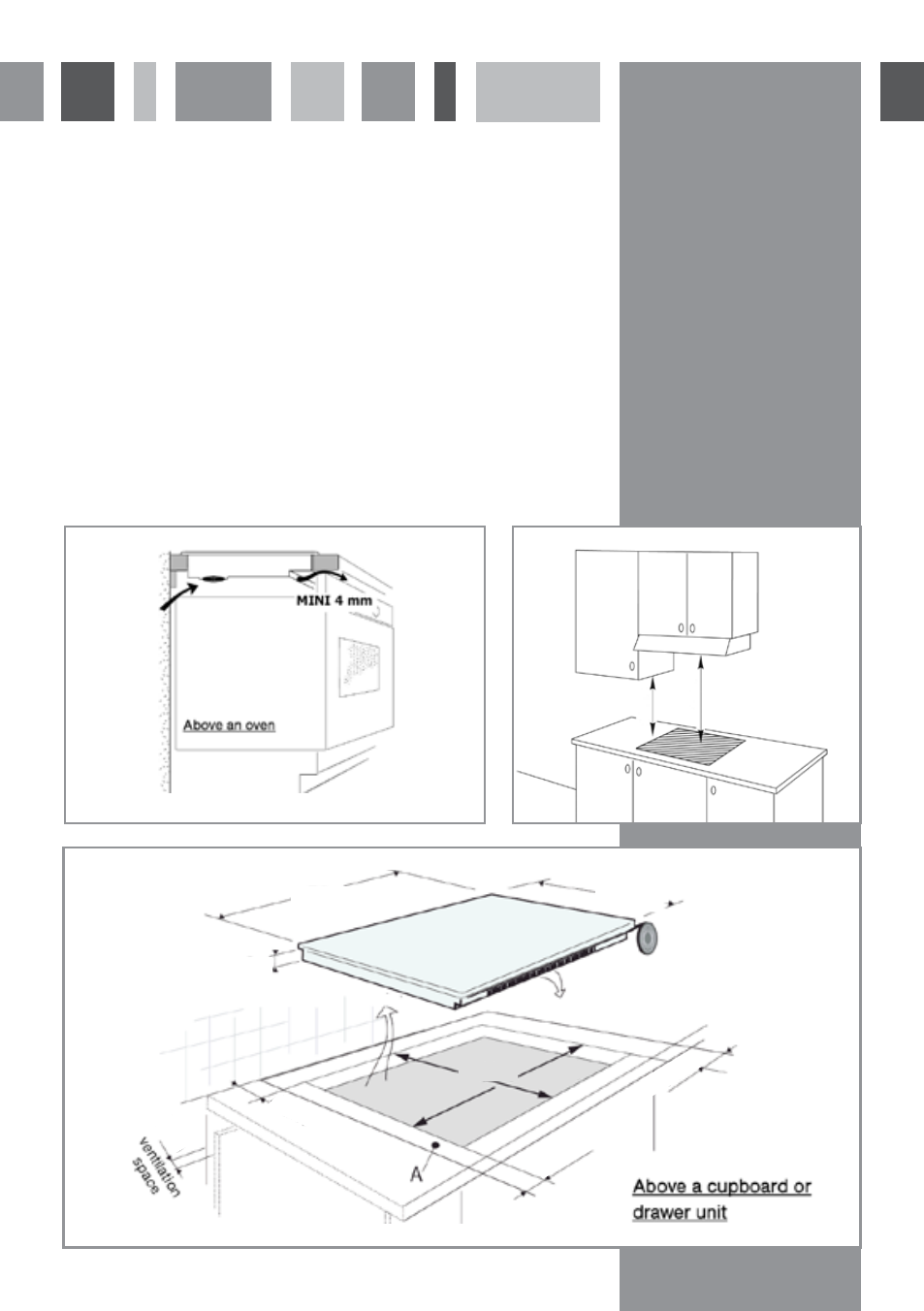

Fig.7
Fig.4
Fig.5
400mm
600mm
Fig.6
510mm
580mm
490mm
560mm
40mm
40mm
60mm
640mm
40mm
