Changing from GE to Nidec Motors in the Field
■
Changing out from GE 2.3 to Nidec PerfectSpeed DC Motors in the field
The Envirco DC family of Fan Filter Units has previously used the GE 2.3 motor that was purchased
by Regal Beloit. The older models have GE 2.3 motors that have become obsolete and are replaced
with the new Regal Beloit model EON. The EON motor is currently being evaluated and you will be
receiving a new manufactured motor named Nidec PerfectSpeed.
When you order a replacement motor they will be a form and fit
replacement, except for the cable that connects to the control
board and the motor. The new Nidec motor will require you to

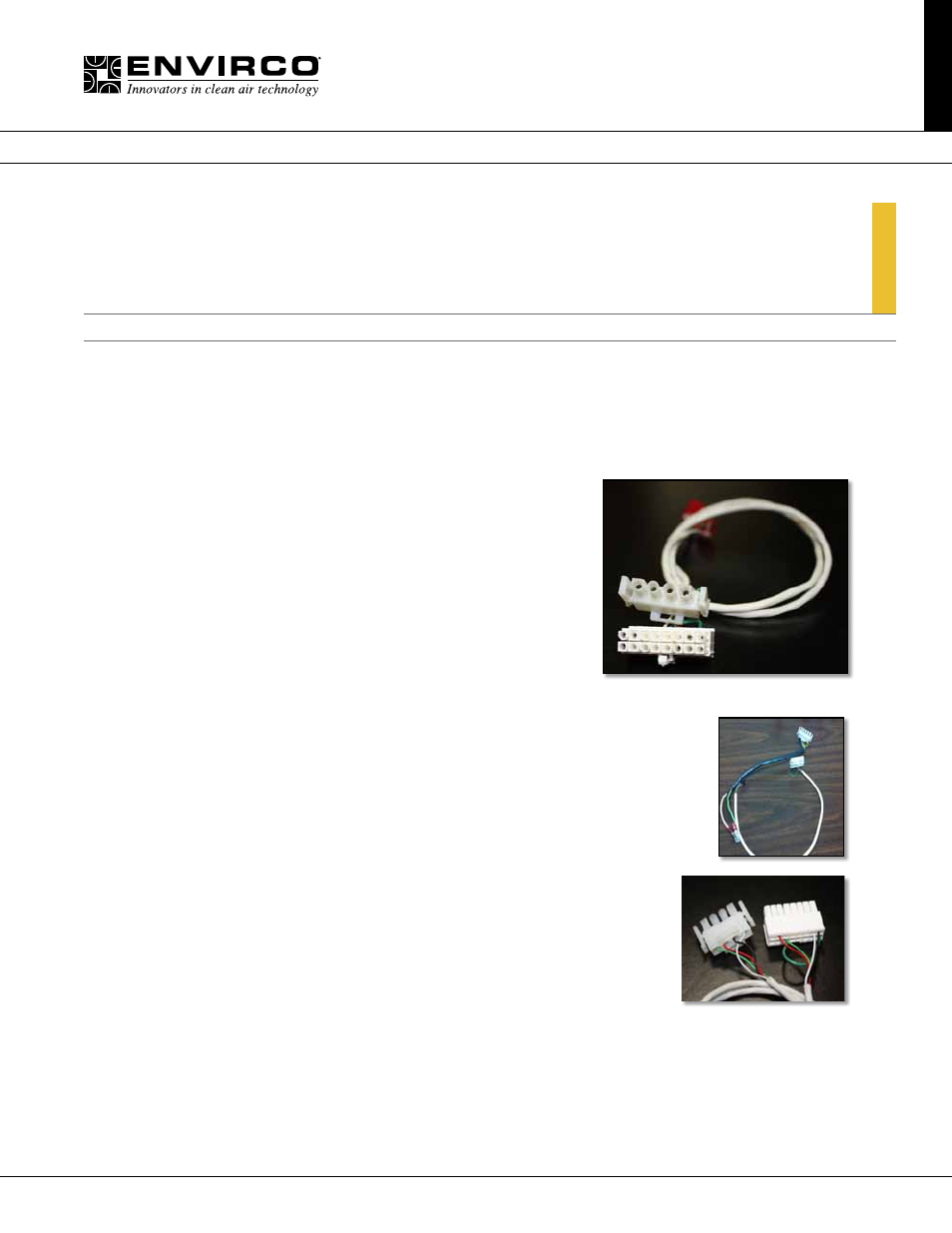

replace the cable. The old cable was a sixteen pin connector
while the new motor cable will have a four pin connector as
shown in the photo to the right.
Please use the new cable with the new four pin connector to
connect your new motor. The cable number will be determined
by the build style of your unit.
■
Nidec Part References
18 in Standard Build
63751-015
12 in RSRE Build
63751-016
15 ft Whip
63751-017
■
Old Cable References
The power cable, has remained the same for the new motor and will be reused.
The rest of the fit and function will be a direct replacement. Follow the procedure
in the IOM for motor swap for your particular FFU.
■
Contact Us
Contact Envirco sales or technical team for any assistance needed.
