MAC 10 ORIGINAL VE5 SERVICE MANUAL
PAGE 15

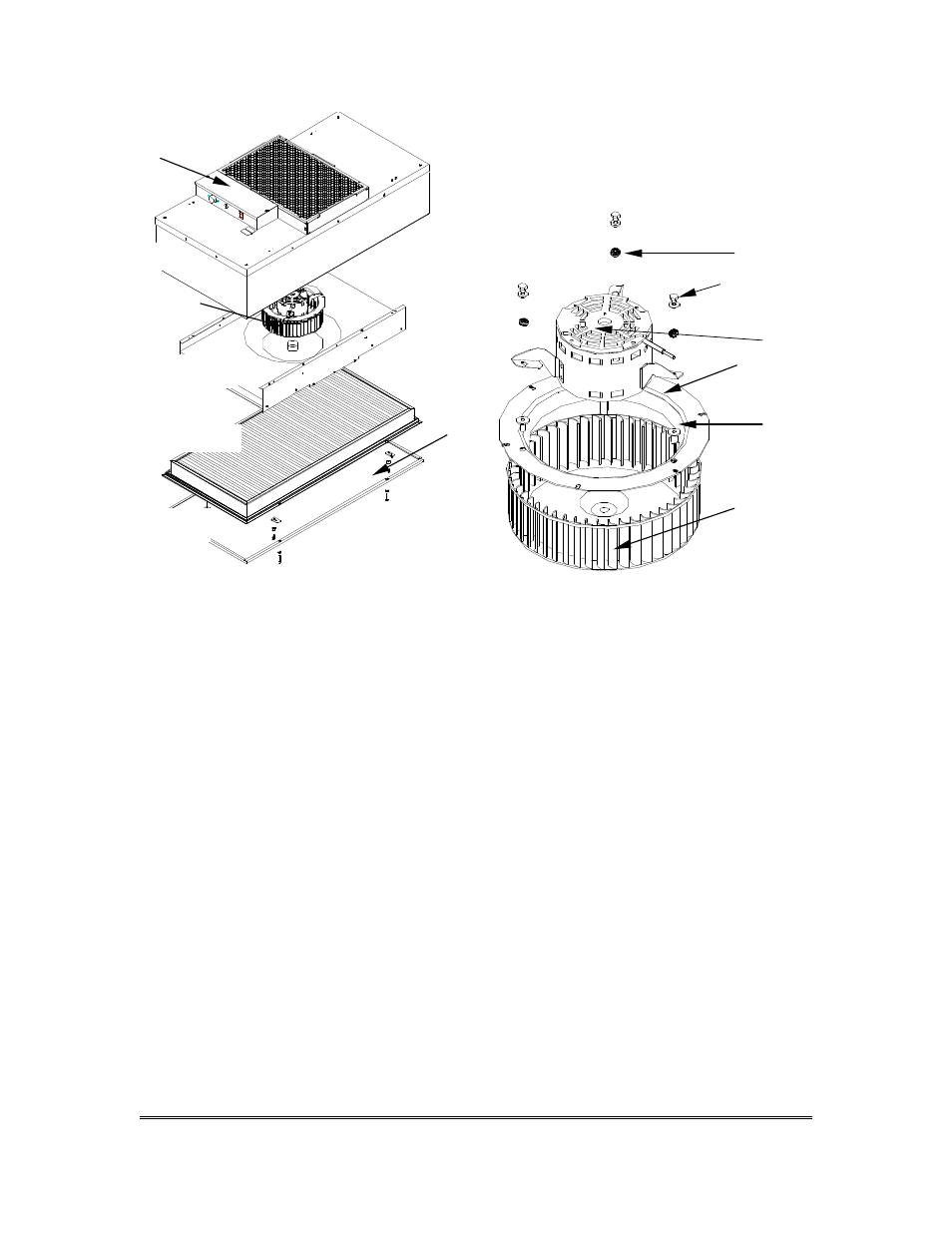

Figure 7 – RSRE Motor Replacement
Electrical connectors
located in inner
prefilter wall
Plenum
Baffle Assembly
Gel Seal Filter
Motor/Blower
Assy
Blower
Wheel
Venturi
Ring
Motor
Machine Screw
and washer
Grommet
Wellnut
Screen
