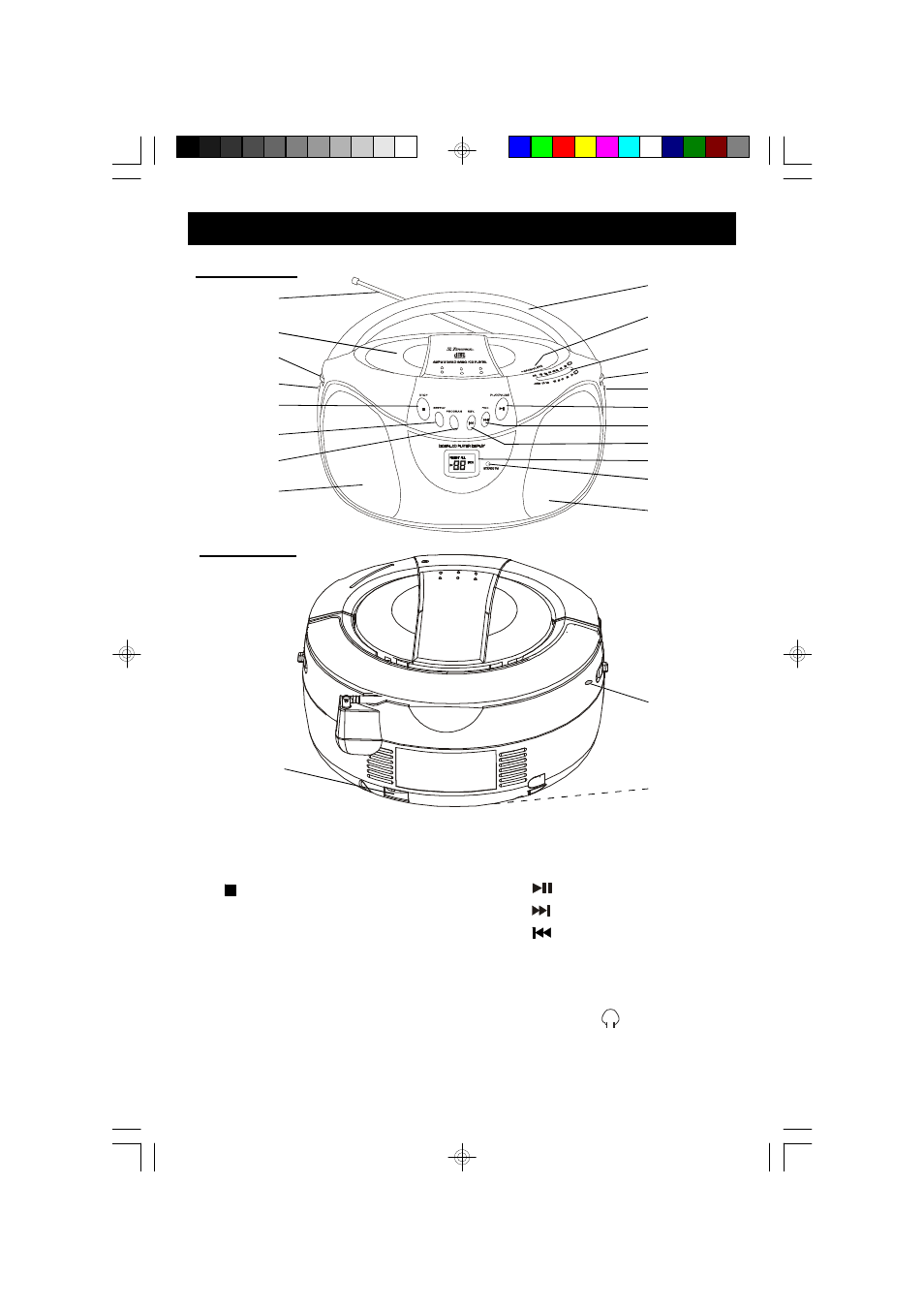

LOCATION OF CONTROLS AND INDICATORS
20
1.) Speakers.
2.) PROGRAM Button.
3.) REPEAT Button.
4.) STOP Button.
5.) FUNCTION Selector Switch.
(CD/POWER OFF/RADIO)
6.) VOLUME Control.
7.) CD Door.
8.) FM Telescopic Antenna.
9.) Carrying Handle.
10.) CD Door OPEN/CLOSE Position.
11.) Dial Scale.
12.) TUNING Control.
13.) BAND Selector Switch.
(FM STEREO/FM/AM)
14.) PLAY/PAUSE Button.
15.) FWD. Skip Button.
16.) REV. Skip Button.
17.) CD Display.
18.) STEREO FM Indicator.
19.) AC Cord Socket.
20.) PHONES Jack.
21.) Battery Compartment.
(Bottom Cabinet)
