Curtis LCD3798 User Manual
Page 8
INSTALLATION
-7-
STEPS:
PC
Be sure both the TV and computer are Power off.

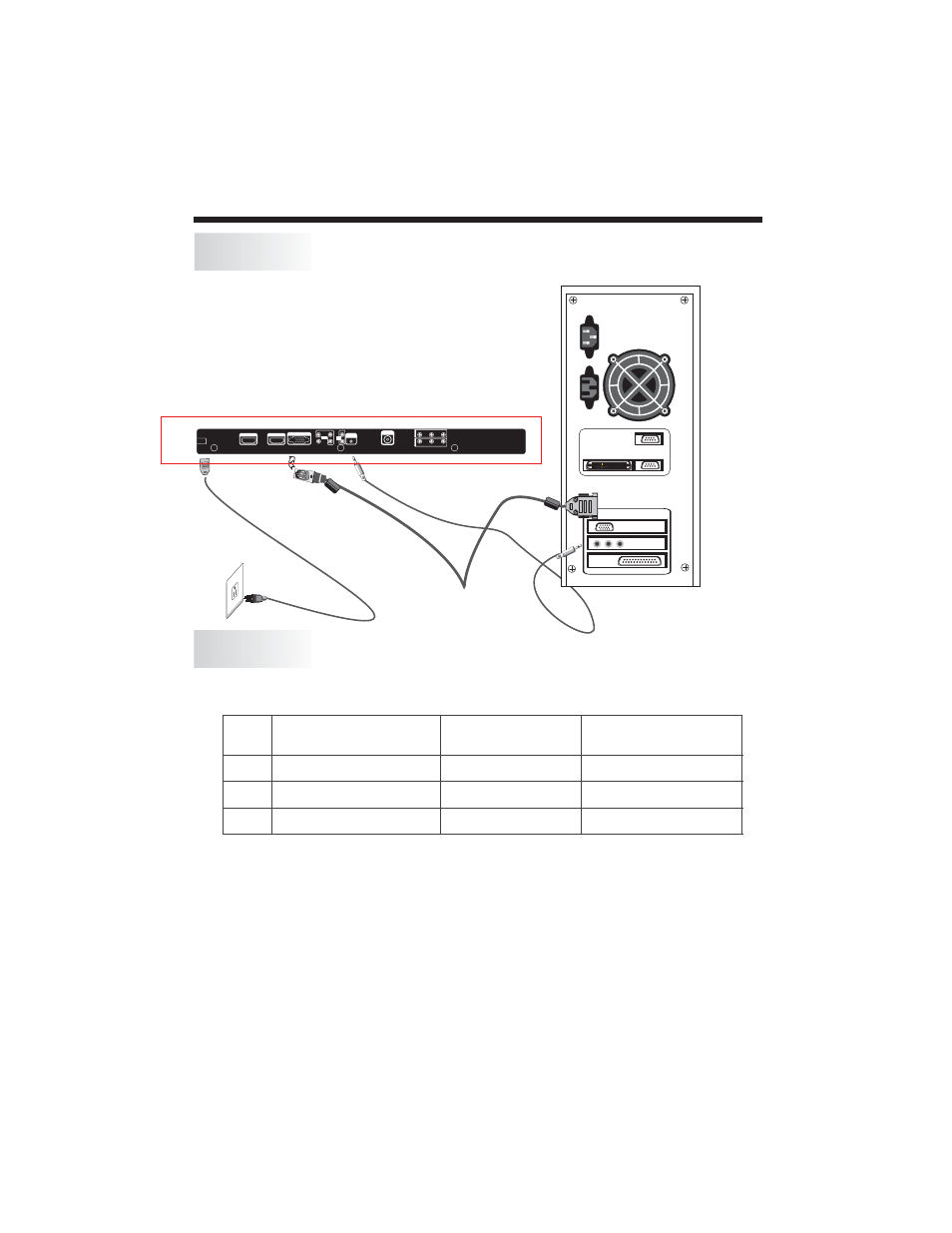

1.Connect VGA and audio cable
2.Connect power cord
3.Power on the TV, switch to PC mode
4.Power on the PC
This sequence is very important.
PC
PRESET MODE
1
2
3
800*600
1024*768
1280*768
60
60
60
37.88
48.36
47.3
RESOLUTION
V.Freq.(Hz)
H.Freq.(KHz)
NOTE:
PC V.Freq.(Hz) not more than 60Hz.
8
AC-INPUT
100-240V~ 50/60Hz
HDMI1 INPUT
VGA INPUT
Y
Pb
Pr
AV1
YPbPr
INPUT
L
R
RF INPUT
PC
AUDIO INPUT
AUDIO
INPUT
L
R
VIDEO
VIDEO
L
R
AV
O
U
T
P
U
T
AV
3
IN
P
U
T
HDMI2 INPUT
