Connectors – elysia xfilter User Manual
Page 6
230V
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
OUT L
EXT 1
IN L
OUT R
EXT 2
IN R
OUT L
OUT R
OUT L
EXT 1
OUT L
IN L
IN L
OUT R
EXT 2
OUT R
IN R
IN R
VOLTAGE
230V 100mA | 115V 200mA | slo-blo
MADE IN GERMANY
xfilter
serial number
IN L
IN R
6

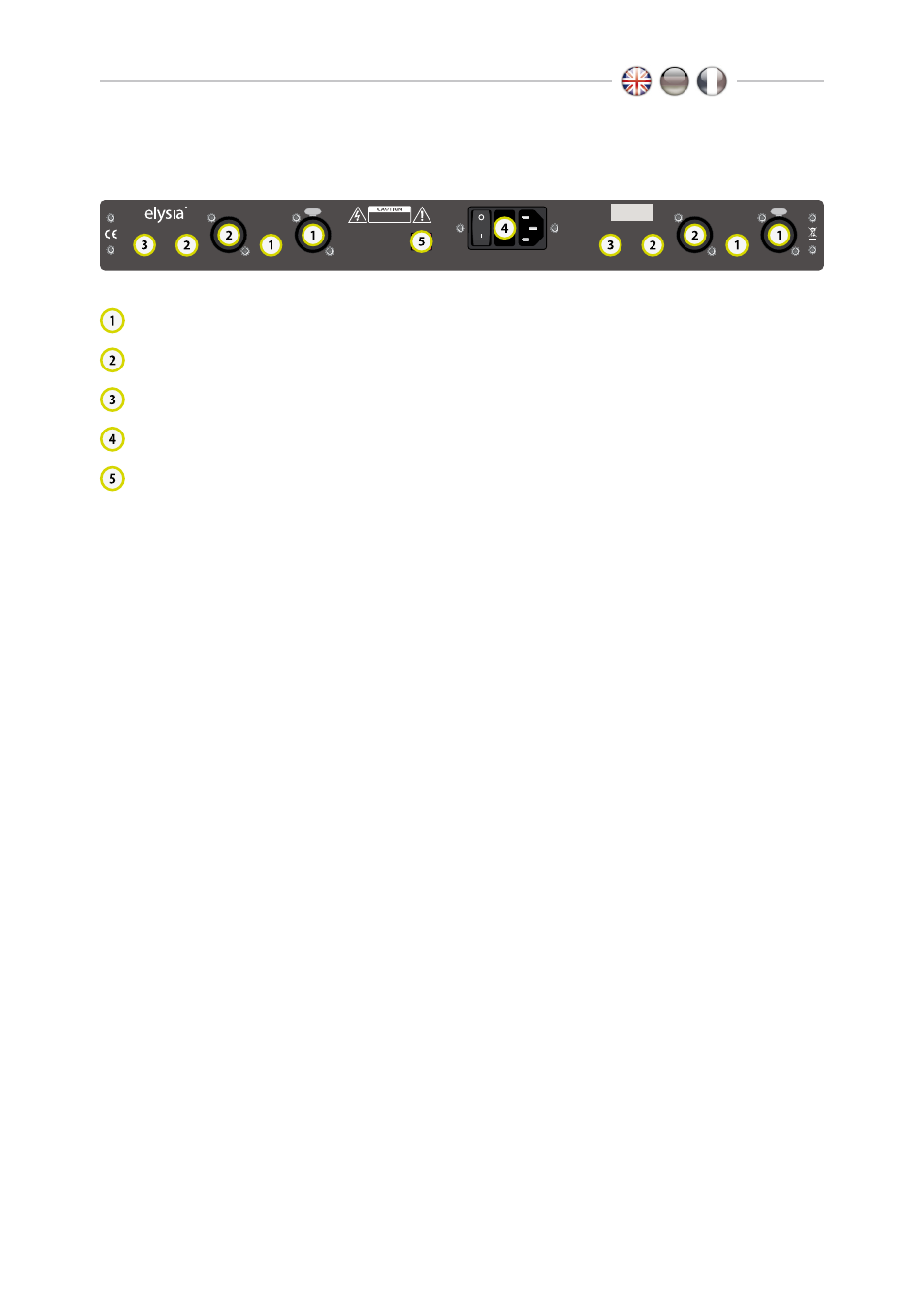

Connectors
Audio inputs (XLR and ¼” phone jack)
Audio outputs (XLR and ¼” phone jack)
Additional audio outputs (¼” phone jack)
Mains connector/power switch/fuse holder
Voltage selector
Mono operation: Connect either input and output 1 or 2 - both will work
identically.
Stereo operation: Connect both inputs and outputs 1 and 2 - the choice
which channel is left and which is right is up to you.
Inputs (+4 dBu)
XLR balanced:
Pin 1: ground Pin 2: hot (+) Pin 3: cold (-)
XLR unbalanced:
Pin 1: ground Pin 2: hot (+) Pin 3: ground
Jack balanced:
Sleeve: ground Tip: hot (+)
Ring: cold (-)
Jack unbalanced:
Sleeve: ground Tip: hot (+)
Ring: ground
Outputs (+4 dBu)
XLR balanced:
Pin 1: ground Pin 2: hot (+) Pin 3: ground
XLR unbalanced:
Pin 1: ground Pin 2: hot (+) Pin 3: idle
Jack balanced:
Sleeve: ground Tip: hot (+)
Ring: ground
Jack unbalanced:
Sleeve: ground Tip: hot (+)
Ring: idle
Fuses (2 pieces)
230V operation: 100mA slo-blo
115V operation: 200mA slo-blo
