Page 13 For technical questions, please call 1-800-444-3353. SKU 40457

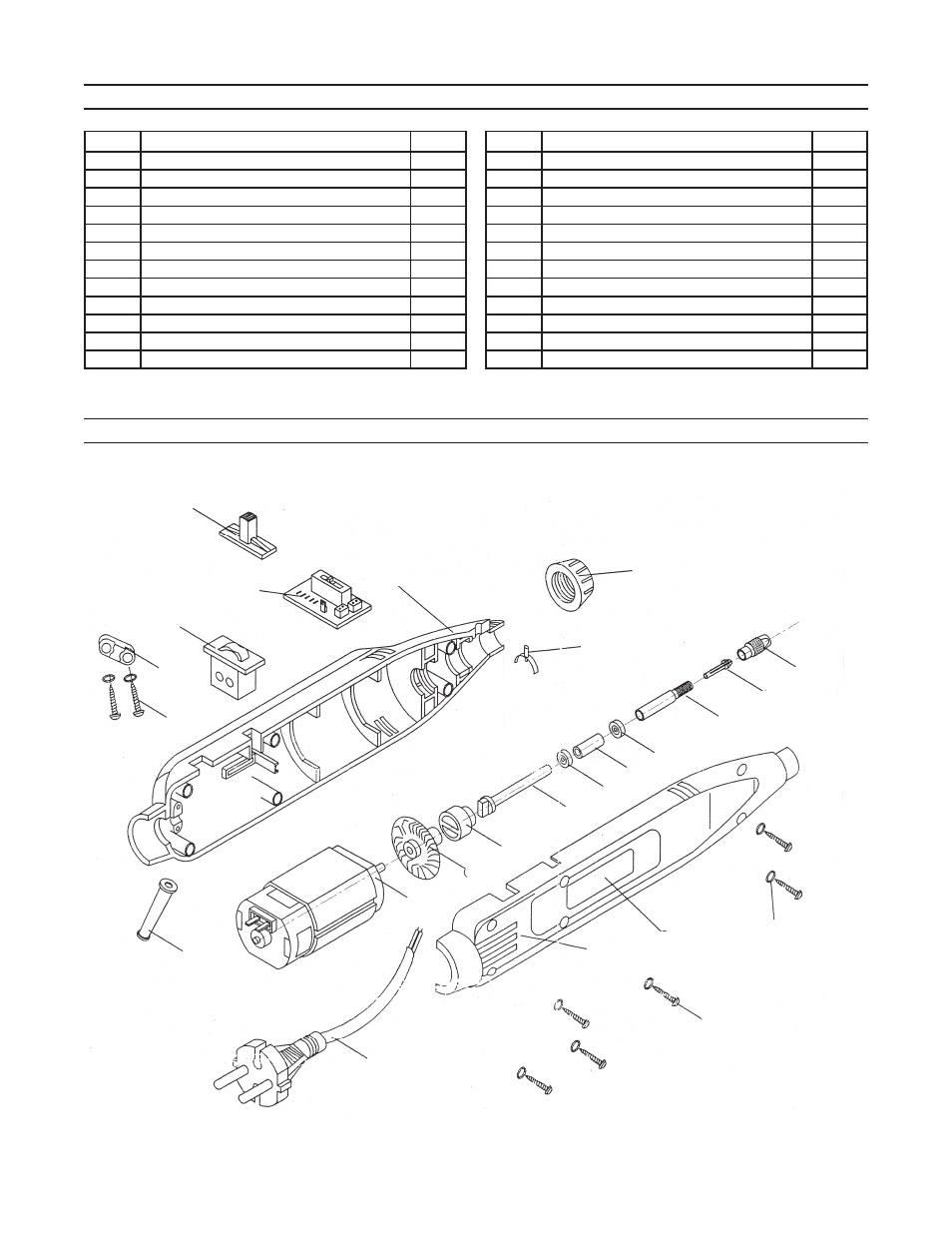

ASSEMBLY DIAgRAM
Part Description Qty.
1 Collet Nut 1
2 Collet 1
3 Shaft 1
4 Bearing 1
5 Bushing 1
6 Bearing 1
7 Coupling 2 1
8 Coupling 1 1
9 Fan 1
10 Motor 1
11 Cord Protector 1
12 Self Screw 2
Part Description Qty.
13 Cord Strain Release 1
14 v-Speed PCB 1
15 Pusher 1
16 Switch 1
17 Left Shell 1
18 Nut 1
19 Shaft Lock 1
20 Cord 1
21 Right Shell 1
22 Self Screw 6
23 Washer 8
24 Name Plate 1
PARTS LIST - DIAgRAM
1
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
24
23
22
