Operating instructions A3G400-AC22-51
Translation of the original operating instructions
4.3 Connection of the cables
External leads are brought out of device.
; First connect the "PE" (protective earth) connection.
● Connect the lines according to your application. When doing so,
observe chapter 4.4 Connection screen.
4.3.1 Cable routing
No water may penetrate along the cable in the direction of the cable exit.
Fans installed lying flat

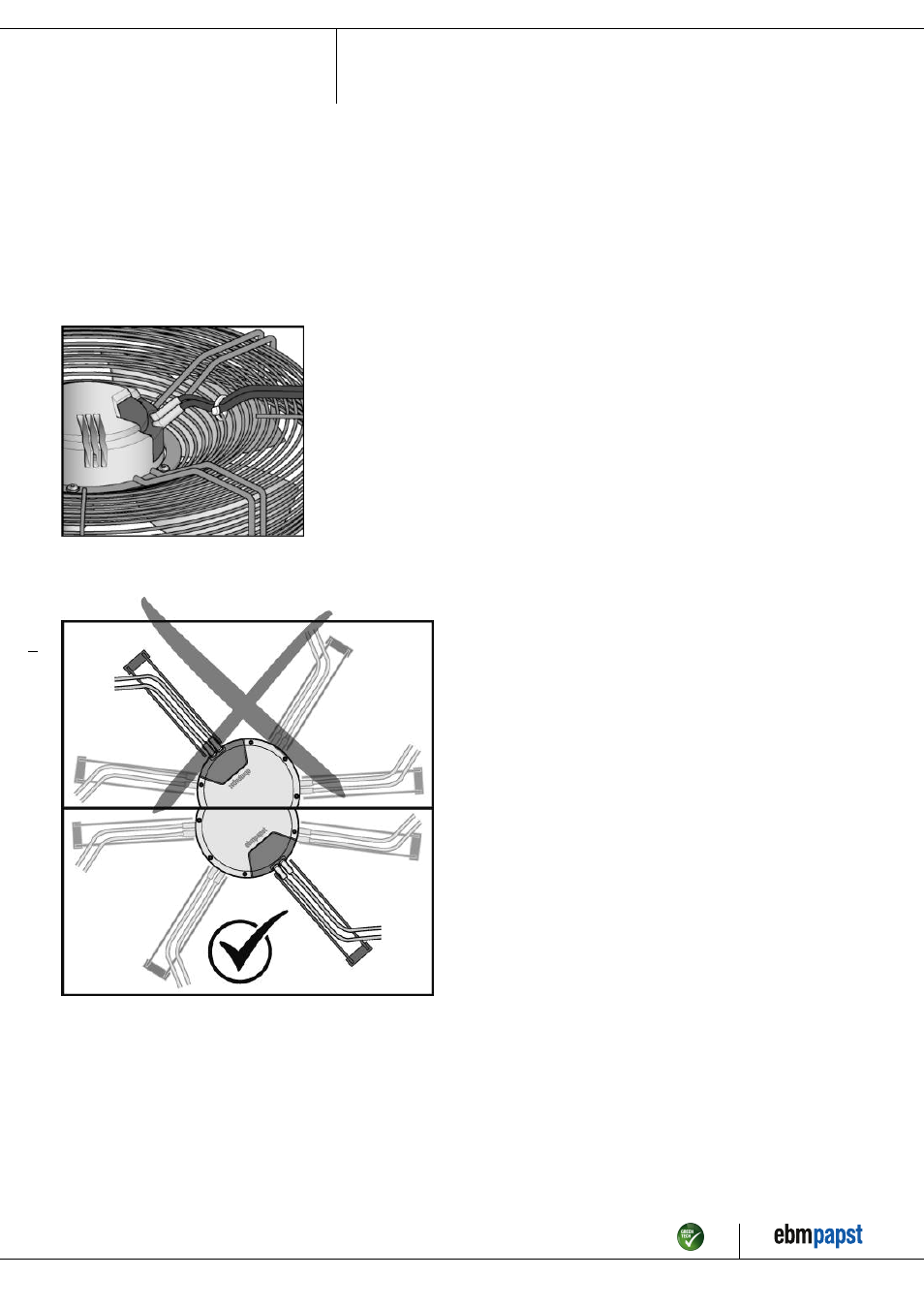

Fig. 1: Fan installed lying flat, cable routed as a water trap.
Fans installed in upright position
Fig. 2: Cable routing for fans installed in upright position.
The cables must always be routed downwards.
Item no. 50736-5-9970 · Revision 82624 · Release 2014-05-08 · Page 7 / 11
