C-0315 15dB RF Amplifier
234 F ISCHER A VENUE z C OSTA M ESA , CA 92626
(714) 424-6500 z (800) 840-0288 z (714) 424-6510 FAX
http://www.channelvision.com z e-mail: [email protected]
Description
Channel Vision’s 15dB power injected inline amplifier provides the lowest induced noise figure available and is
designed with the future in mind. Unlike other RF amplifiers, the C-0315 features a bi-directional return path for
12VDC IN RF INPUT
Channel Vision
MULTI-ROOM AUDIO VIDEO TECHNOLOGY
CVT-15PIA
5-42MHz RETURN PATH PASS
54-1000MHz FORWARD PATH
3dB LOW NOISE AMPLIFIER
15dB GAIN
OUT-PWR
Cable or
Antenna
12VDC IN RF INPUT
Channel Vision
MULTI-ROOM AUDIO VIDEO TECHNOLOGY
CVT-15PIA
5-42MHz RETURN PATH PASS
54-1000MHz FORWARD PATH
3dB LOW NOISE AMPLIFIER
15dB GAIN
OUT-PWR
Cable or
Antenna
HS-3
CVT-PI
880
DC Blocker

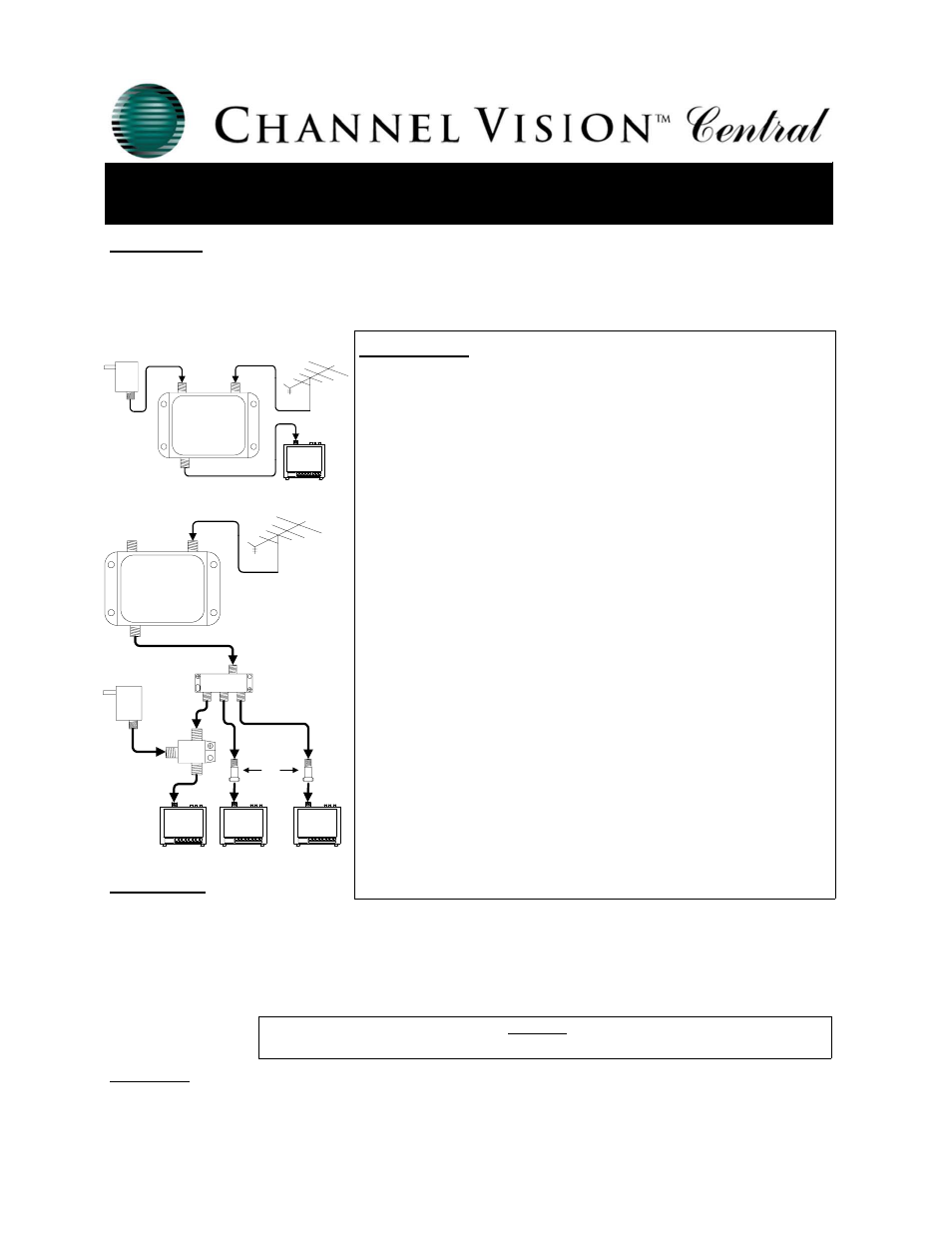

Standard Wiring Layout
Layout with Power Injector
C-0315
C-0315
Instructions
Step 1: Mount amplifier.
Step 2: Connect cable or antenna signal to the INPUT jack.
Step 3: Connect OUTPUT jack to distribute signal to all the TV’s in the house.
Step 4: Connect power to 12VDC input, or use PIA (power injector) for remote power capability. Note: must use
DC passive splitters.
Please Note:
The unused trunk line connector of the last outlet device in each trunk line MUST BE TERMINATED using a
75
Ω terminator (model 2101).
Specifications
Parameter Condition Min Typ Max
Gain f=54MHz 13.5 14.5 15.5
f=1000MHz 14.0 15.5 17.0
Flatness 54-1000MHz - +/-0.8 -
Insertion Loss 5-40MHz -1.5 - -0.5
Return Loss IN 5-40MHz - -18 -14
54-750MHz - -20 -16
750-1000MHz - -16 -14
Return loss OUT 5-40MHz - -18 -14
54-750MHz - -20 -16
750-1000MHz - -16 -14
Tap - Tap Isolation 54-1000MHz - - -
2nd Order Input Intercept - 80 - -
3rd order input intercept - 60 - -
Composite Second Order - - - -60
Composite Triple Beat - - -70 -60
Noise Figure 54-60MHz - 3 3.5
60-750MHz - 2.4 3.0
750-1000MHz - 3 4.0
Hum Modulation - - - -70
Return Path Level 5-27MHz - - 60
27-40MHz - - 40
RFI Isolation 5-1000MHz - - -130
Warning
To prevent fire or shock hazard, do not expose this appliance to rain or moisture
