3. TECHNICAL DATA

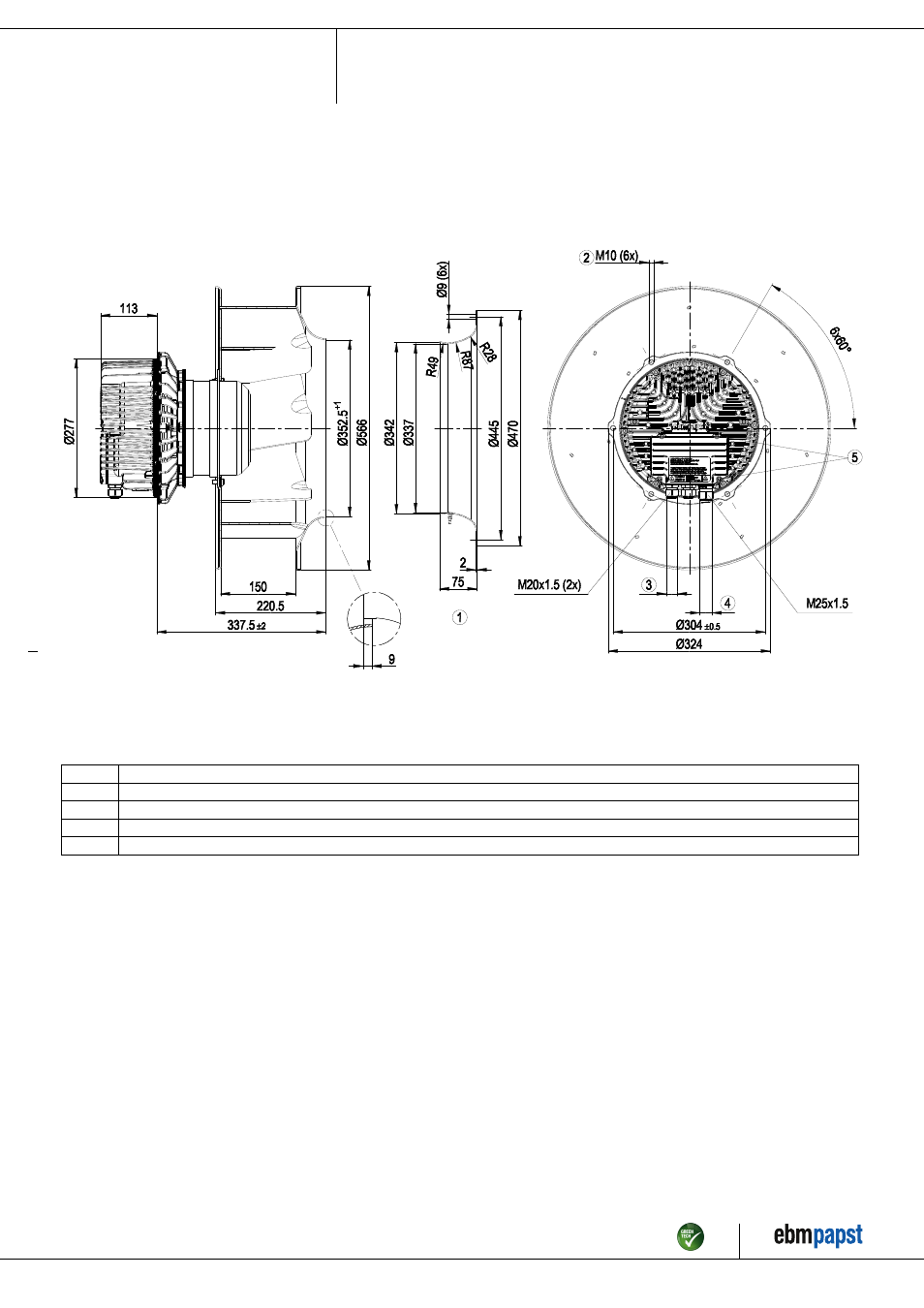

3.1 Product drawing
All measures have the unit mm.
1 Accessory part: Inlet nozzle 64025-2-4013 with pressure tap (k-factor: 281) not included in scope of delivery
2 Thread reach max. 20 mm
3 Cable diameter min. 4 mm, max. 10 mm, tightening torque 4±0.6 Nm
4 Cable diameter min. 9 mm, max. 16 mm, tightening torque 6±0.9 Nm
5 Tightening torque 3.5±0.5 Nm
