During the connection work, ensure that no cables splice off.

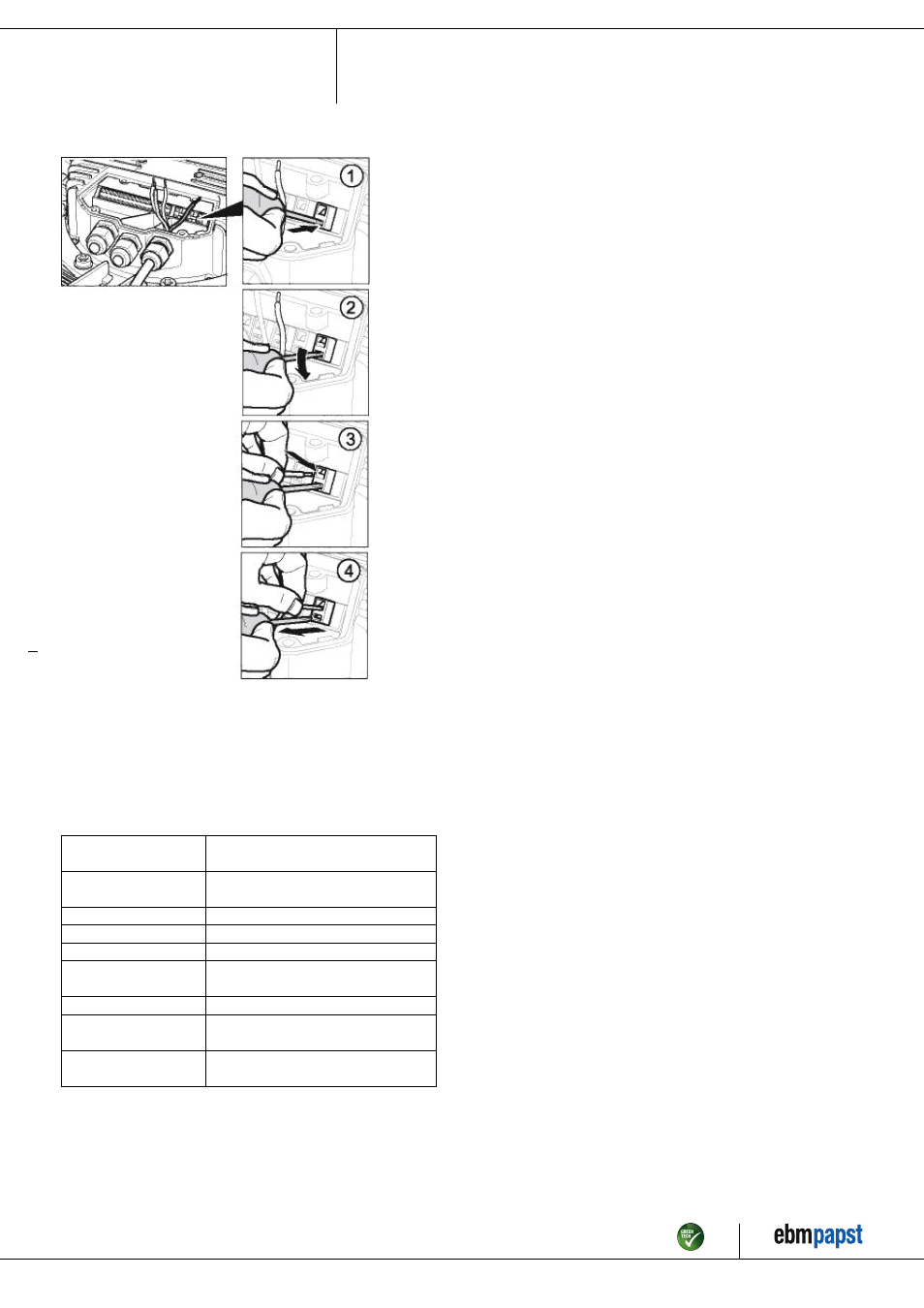

Fig. 2: Connecting the wires to terminals
; Seal the terminal box.
4.3.3 Cable routing
No water may penetrate along the cable in the direction of the cable gland.
4.4 Factory settings
Factory settings with which the device is pre-set by ebm-papst.
Control mode
parameter set 1 PWM controlling
Control mode
parameter set 2 PWM controlling
Fan / device adress 1
Max. PWM / % 100
Min. PWM / % 5
Save set value to
EEPROM Yes
Set value control Analogue (linear)
Control function
parameter set 1 Positive (heating)
Control function
parameter set 2 Positive (heating)
