Operating instructions K3G310-AX52-91
Translation of the original operating instructions
3. TECHNICAL DATA

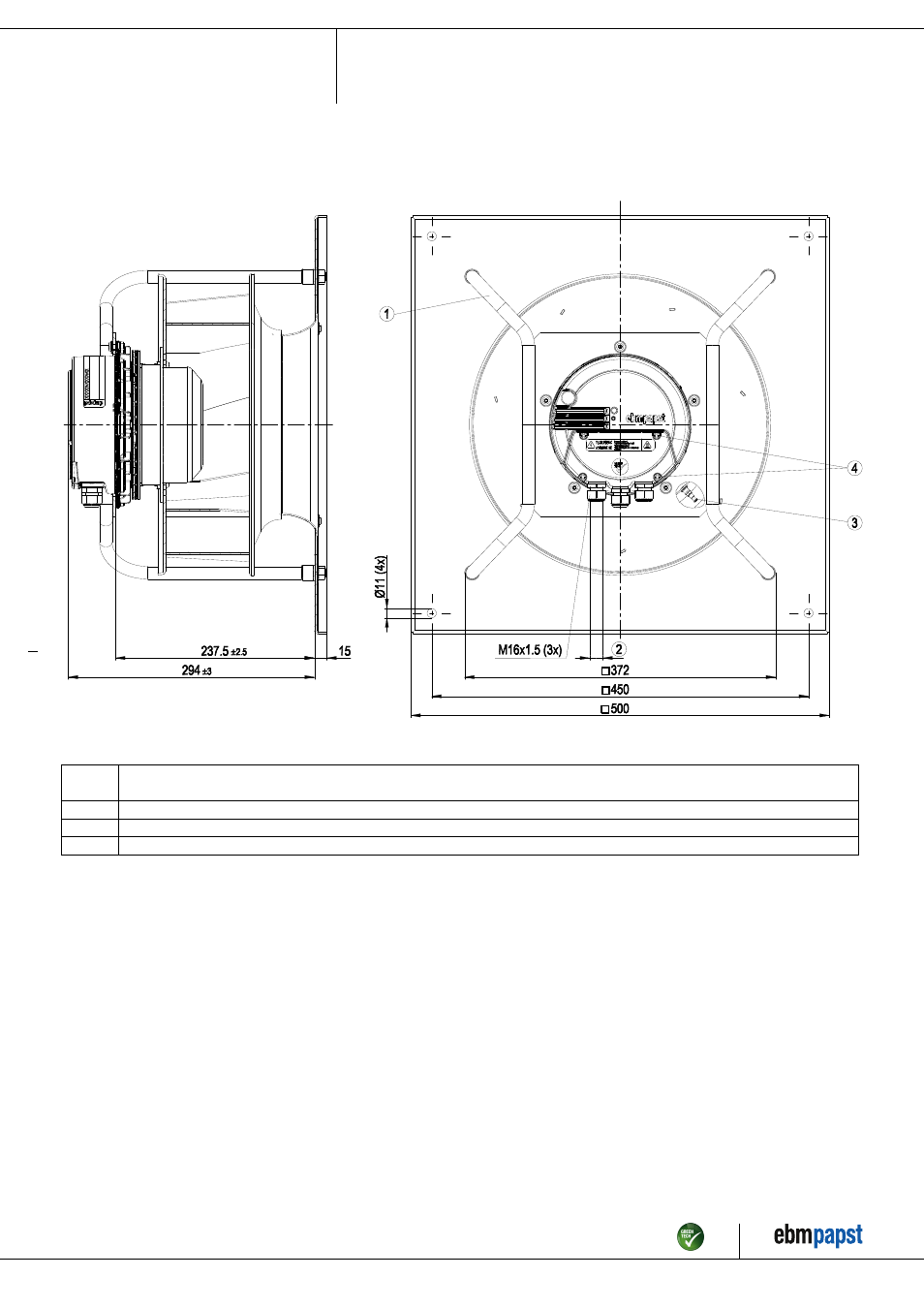

3.1 Product drawing
All measures have the unit mm.
1 Mounting position: shaft horizontal (install the support struts only vertically as shown in the view!) or rotor on bottom; rotor on top on
request
2 Inlet nozzle with bleeder connection for pressure relief (k-factor: 116)
3 Cable diameter: min. 4 mm, max. 10 mm, tightening torque: 2.5±0.4 Nm
4 Tightening torque 3.5±0.5 Nm
