3. TECHNICAL DATA

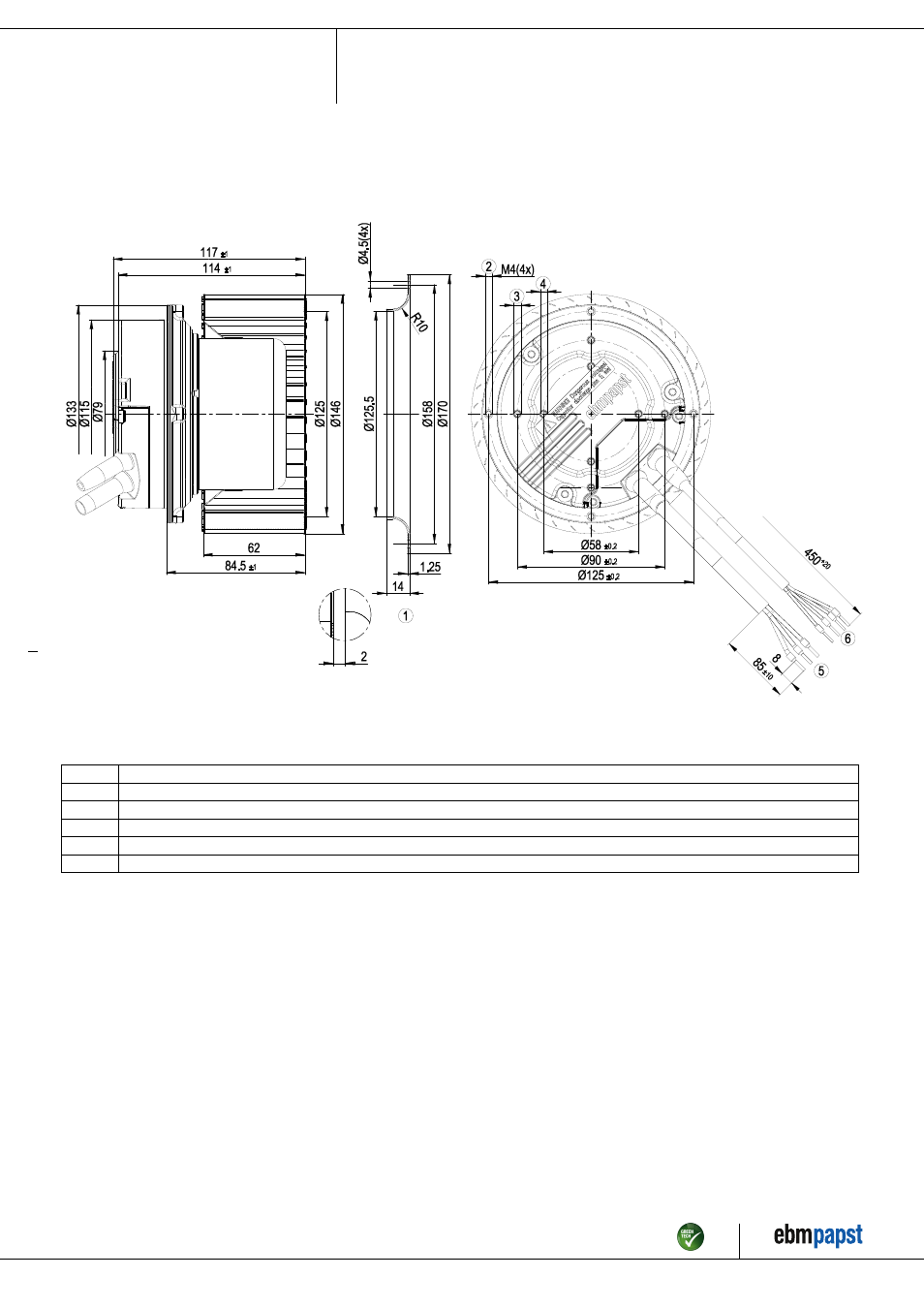

3.1 Product drawing
All measures have the unit mm.
1 Accessory part: Inlet nozzle 09576-2-4013, not included in the standard scope of delivery
2 Depth of screw 8 -10 mm; tightening torque 2.5±0.2 Nm; gluing the screws is recommended
3 Pilot hole prepared for self-tapping screw M4, depth of screw max. 6 mm
4 Pilot hole prepared for self-tapping screw M4, depth of screw max. 8 mm
5 Connection line PVC AWG18, 3x crimped core-end sleeves
6 Connection line PVC AWG22, 4x crimped core-end sleeves
