Operating instructions D4D180-CB01-02
Translation of the original operating instructions

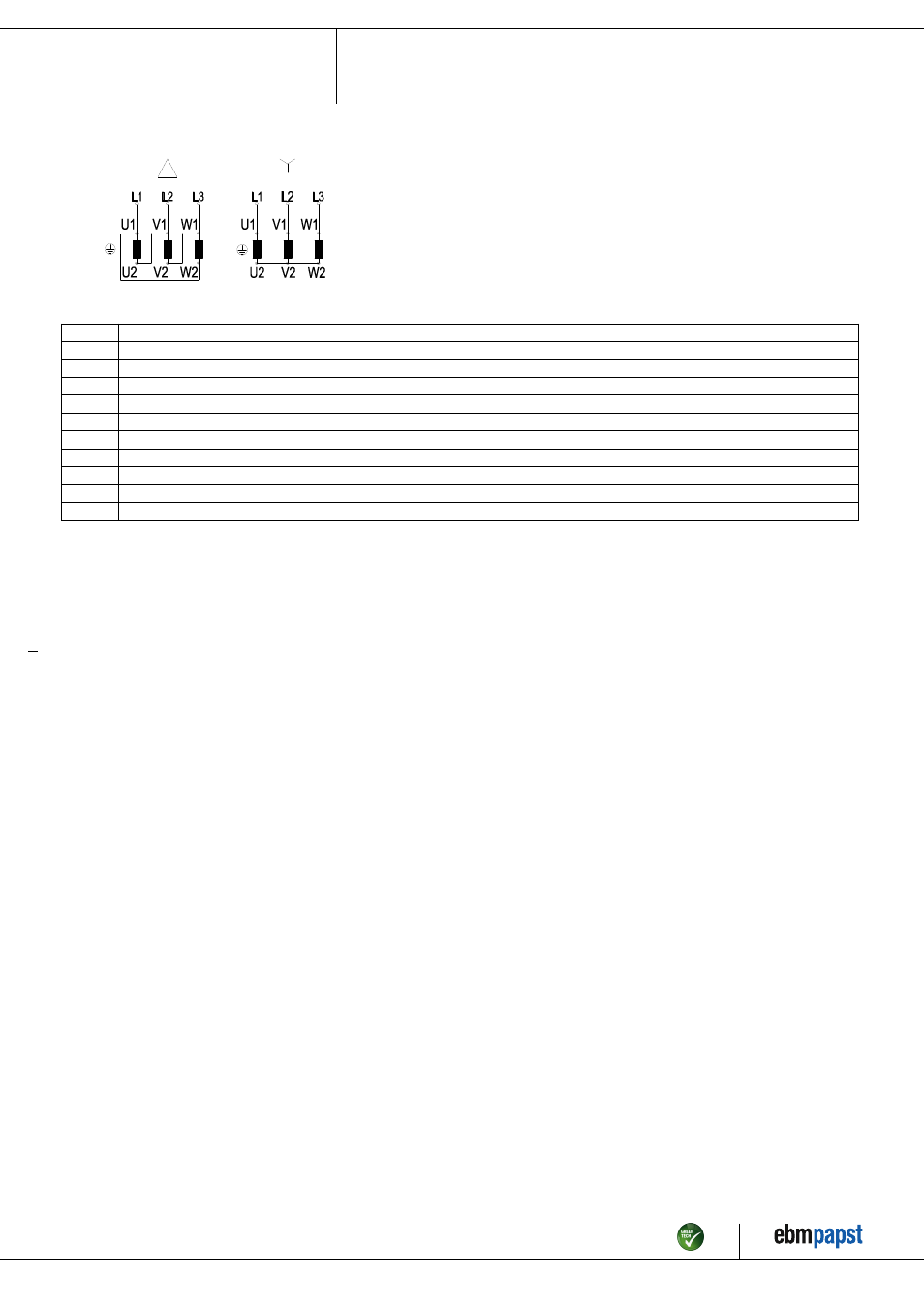

4.4 Connection screen
Note: Direction of rotation changes when two phases are reversed
Δ Delta connection
Y Star connection
L1 black
L2 blue
L3 brown
U1 black
V1 blue
W1 brown
U2 green
V2 white
W2 yellow
Item no. 11552-5-9970 · Revision 73571 · Release 2011-04-07 · Page 7 / 9
