Operating instructions

D2E146-KA45-01

Translation of the original operating instructions

3. TECHNICAL DATA

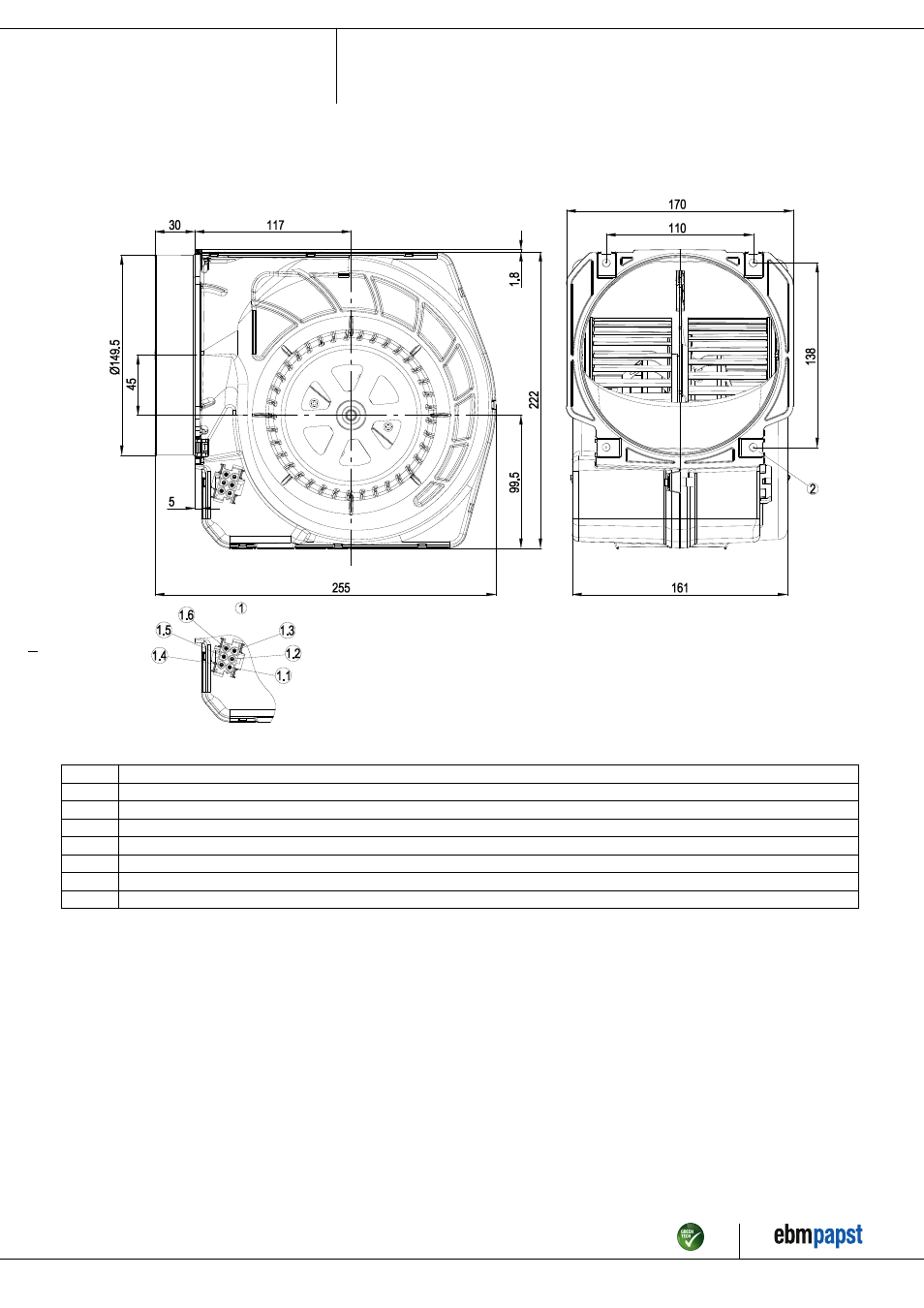

3.1 Product drawing

All measures have the unit mm.

AMP Universal Mate-N-Lok coded plug system; connector shell: AMP 926 682-3; 6x plug pin: AMP 926 886-1

1.1

L = step 1

1.2

L = step 2

1.3

L = step 3

1.4

L = step 4

1.5

1.6

Protective earth

4 x sheet metal nut for thread EN ISO 1478-ST4.8 (min. screw length 14.5 mm plus thickness of mounting material)
