Installing the MMAC-Plus Module
2-4
Setting the FNB Switch
The 9W111-08 module can attach to ether FNB-1 or FNB-2. Figure 2-3 shows the
location of the FNB switch, SW201. When this switch is up (toward the top of the
module) the 9W111-08 attaches to FNB-2. When down, it attaches to FNB-1.

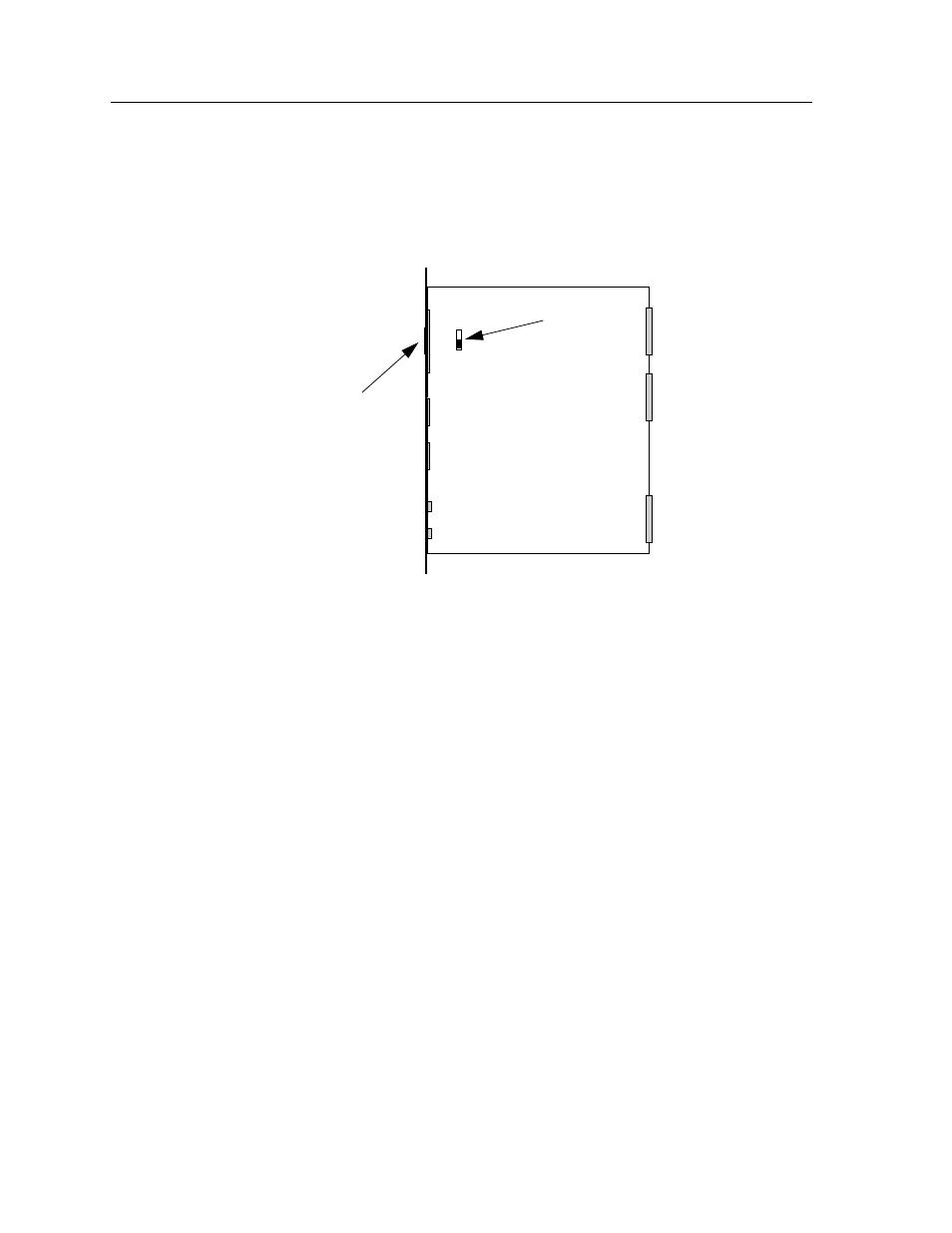

Figure 2-3. Location of the FNB Switch
Local Management Console
Local Management is accessed by attaching a management console at the RJ-45
COM port of the 9W111-08. The console connection supports a Digital Equipment
Corporation VT 320™ terminal or PC emulation of one of these terminals.
Table 2-1 lists the setup requirements for the local management console. If your
terminal is a Digital Equipment Corporation VT 320™ terminal, press
F3 to access
the Setup Directory. If you have a terminal emulation of the Digital Equipment
terminals, refer to your equipment user manual for setup procedures.
SW201
AUX and
COM Ports
