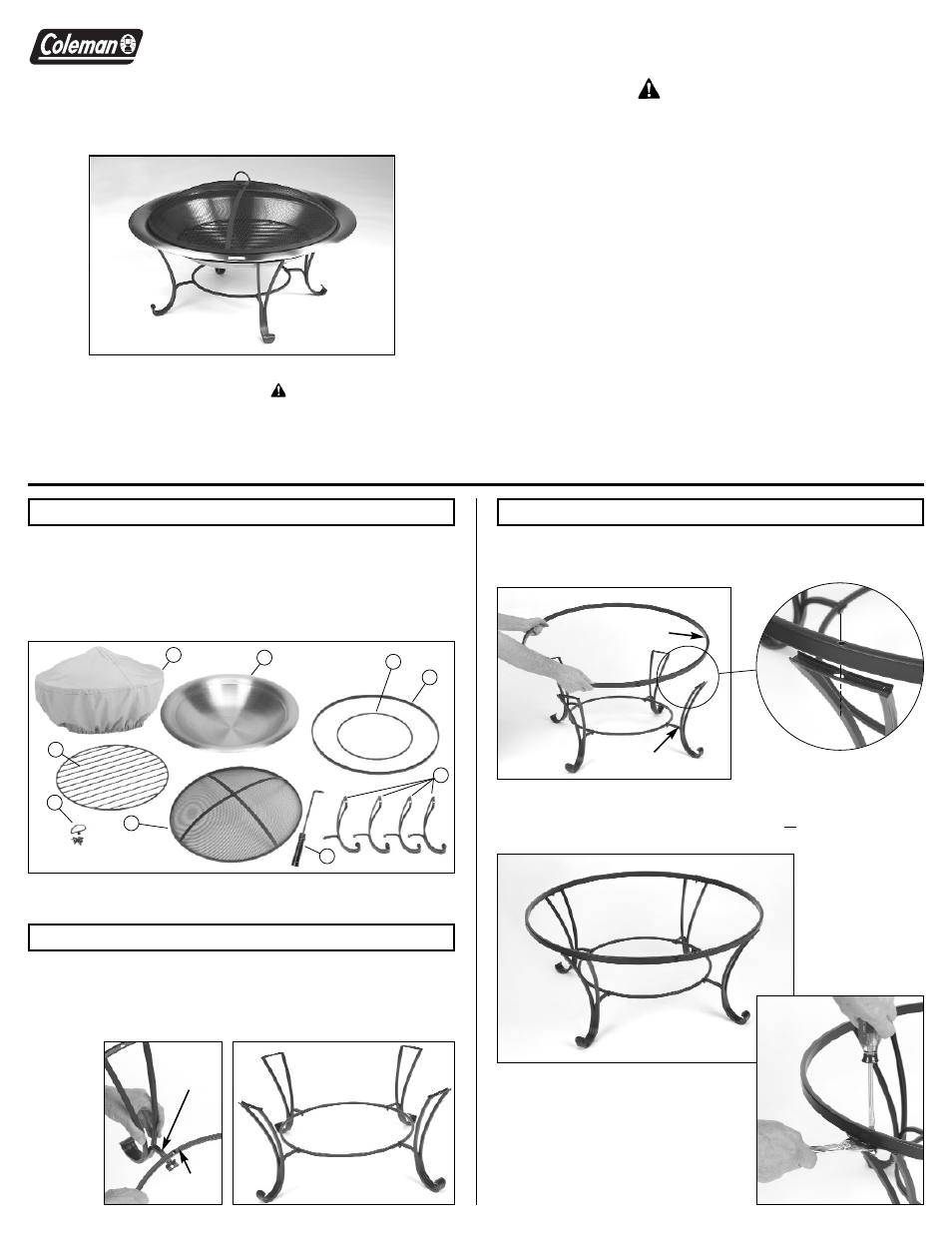

Assembly and Instruction Sheet
for 35” Round Fireplace
Models 5062-707 & 5062-720
®
Follow these instructions for assembly and read carefully, particularly the
safety statements. The safety alert symbol, is a universally recognized
symbol used to identify safety information about hazards that can result in
personal injury. When this symbol is used you should pay very close
attention to what is written. Review these instructions before beginning
assembly or using your fireplace.
• Check package for all parts needed for assembly.
• Check all items for shipping damage. Call Coleman at 1-800-835-3278 or
TDD: 316-832-8707 if you have any problems.
FOLLOW INSTRUCTIONS AND WARNINGS TO AVOID FIRE,
SERIOUS INJURY OR DEATH.
• Outdoor use only. Never use in enclosed area. Use in unventilated areas
will endanger your life.
• Keep away from all combustible materials including gasoline and other
flammable liquids and vapors.
• Use on a level, noncombustible surface only. Keep away from house,
garage, balconies, or eave overhangs.
• Keep out of the reach of children.
• Be sure screen is in place while in use and do not use in windy conditions.
• Do not overfill firebowl or use to burn leaves and trash.
• Exercise the same care you would with an open fire.
• Never leave unit unattended when hot or in use.
• Completely extinguish fire before leaving.
• Use gloves when handling or moving. Ashes can remain warm for a long
time after extinguishing.
• Dispose of cold ashes properly.
• Do not modify in any way nor use with parts not expressly approved by
Coleman.
• Combustion by-products produced when using this product contain
chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Contact local authorities regarding possible burn restrictions before using product.
WARNING
9
7
4
8
5
Assembly
1.
Carefully unpack all parts from shipping box.
2.
Align holes in Leg Bracket and assemble to Leg Support Ring as
shown. Attach with small bolt and nut. Hand tighten.
Fireplace Parts Check List Assembly (cont.)
3.
Place Firebowl Support Ring on top of Leg Brackets as shown. Carefully
align holes as shown.
4.
Insert long bolts and secure with nuts. Tighten all bolts in Leg Support
Ring and Firebowl Support Ring.
Align holes Firebowl Support Ring
Leg Bracket
Leg Support
Ring
Leg
Bracket
(continued on other side)
■ ■ 1. Protective Cover
■ ■ 2. Firebowl
■ ■ 3. Leg Support Ring
■ ■ 4. Firebowl Support Ring
■ ■ 5. Leg Brackets
■ ■ 6. Screen Lifting Tool
■ ■ 7. Screen Assembly
■ ■ 8. Hardware Kit w/Handle
■ ■ 9. Grate
6
2 1
3
