C R T T E L E V I S I O N
Make your connection decision easier by taking a few minutes to review the jacks on your new
TV. Compare the jacks on the device you want to connect and see if the same jacks are available
on your TV. Then refer to the chart below to determine the best connection to make.
For more information about connecting your TV to other devices, refer to the User’s Guide that
can be found in the support section on www.rca.com/television. Make sure you read the safety
information provided separately before you connect and operate your TV.
Jacks Quality Connects to. Cables needed
(not included)
COMPONENT
(CVID) INPUT
^ ^ ^ Devices with Y Pb Pr
(component) outputs, such as,
HD Receivers, Satellite
Receivers, Cable Boxes, DVRs,
and DVD Players (Progressive
Scan players- refer to the User’s Guide
for more information).
Component
Video
Audio
Devices with Video (composite)
outputs, such as DVD Players,
VCRs, Satellite Receivers,
Cable Boxes, Camcorders, and
Digital Cameras.
Video
Audio
Model 27F524T has an S-Video connection on the side panel. Remember to connect the RJL Audio jacks available in this location.
Remember; The Component (CVID) and the Composite (VID) jacks share the same RJL Audio jacks shoum above.
СЮ

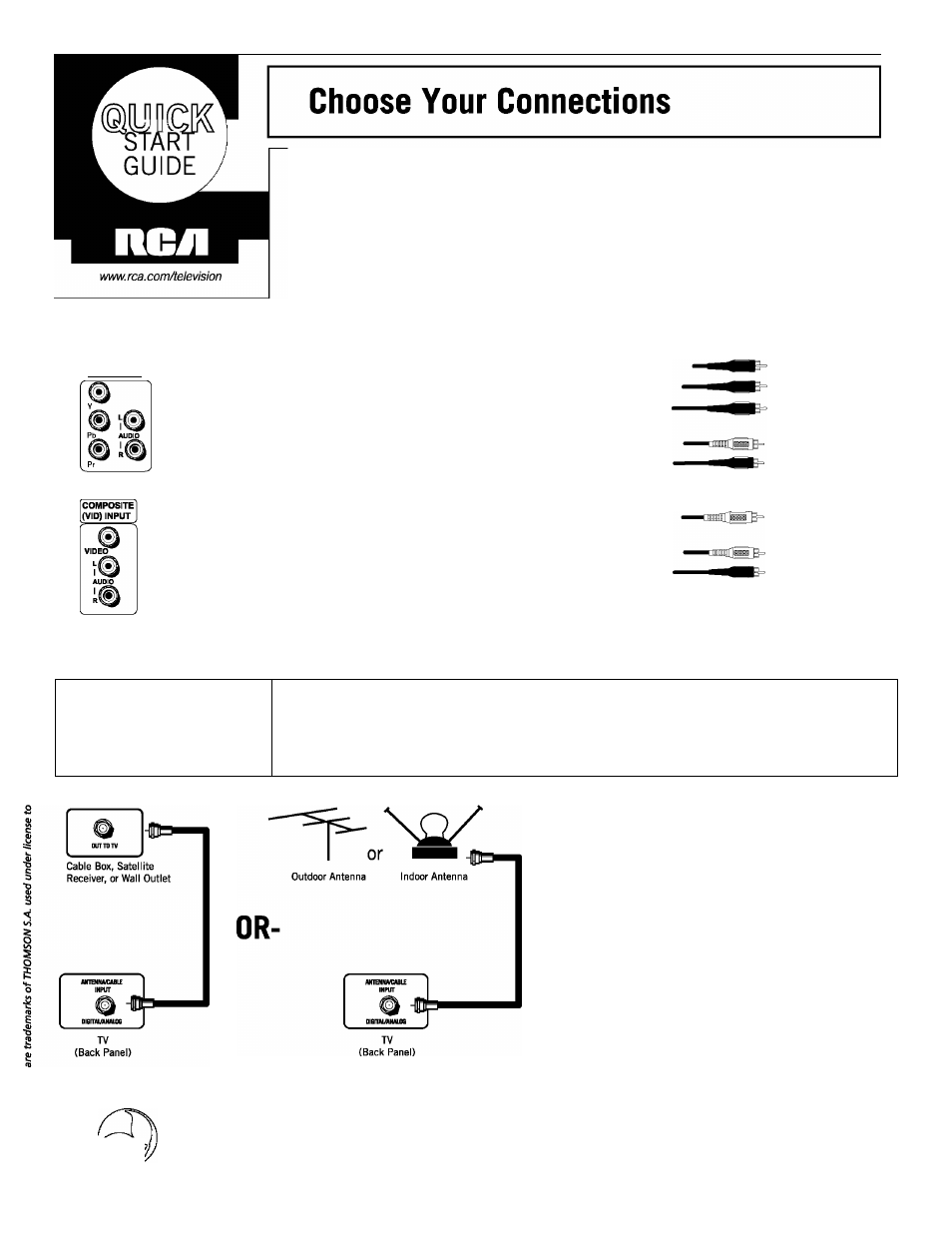

Connect a Signal Source
Connect your TV to cable; a cable box or satellite
receiver; or an antenna in order to receive TV
channels. Connect the cables as shown in the first or
second connection.
If you’re connecting a cable box or satellite receiver
and it has Component jacks (Y Pb Pr), connect the
cable box or satellite receiver to your TV using the
Component jacks (CVID) for a better connection.
Continue to Step 2, Set Up Your TV, on the back
page.
E
■D
5
«
И/е help improve our erivirortment by printing only this one роде of instructions. The complete User's Guide is available at the support section on
www.rca.com/television.
Español- Ayudamos a mejorar nuestro ambiente imprimiendo sólo esta página de instrucciones. Lo Guía de Inicio Rápido en Español y la Guia del
Usuario completa se encuentran disponibles en lo sección de soporte en www.rca.com/television.
